Schneider Electric XB5 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout, SPDT XB5FW35B5

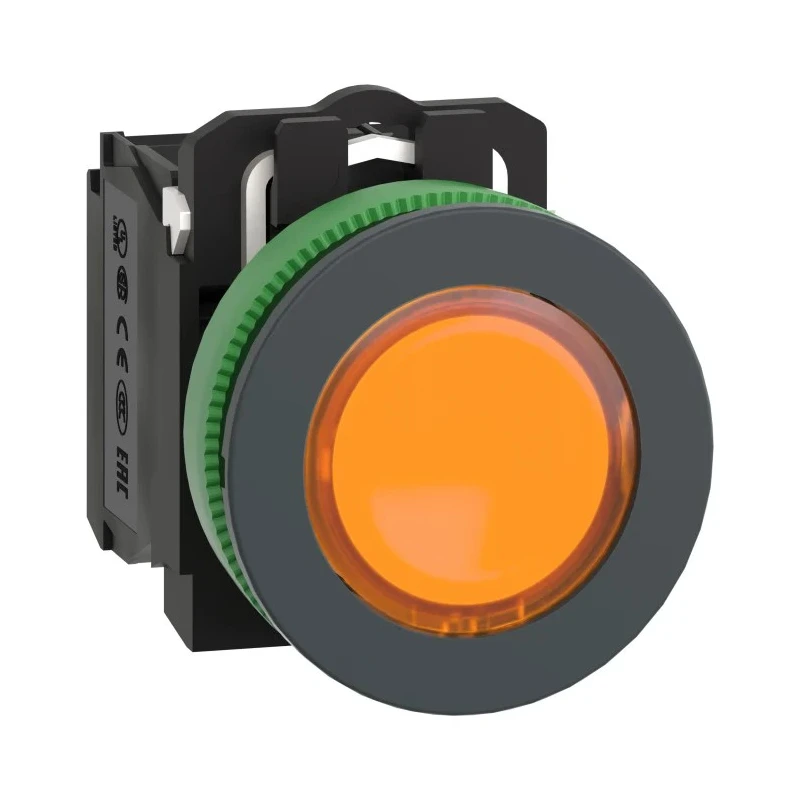

Schneider Electric XB5FW35B5 is a high-performance illuminated push button switch designed for industrial applications requiring durability and versatility. This model belongs to the Harmony XB5 Series, featuring a robust plastic construction with a flush mounted design and antimicrobial properties.

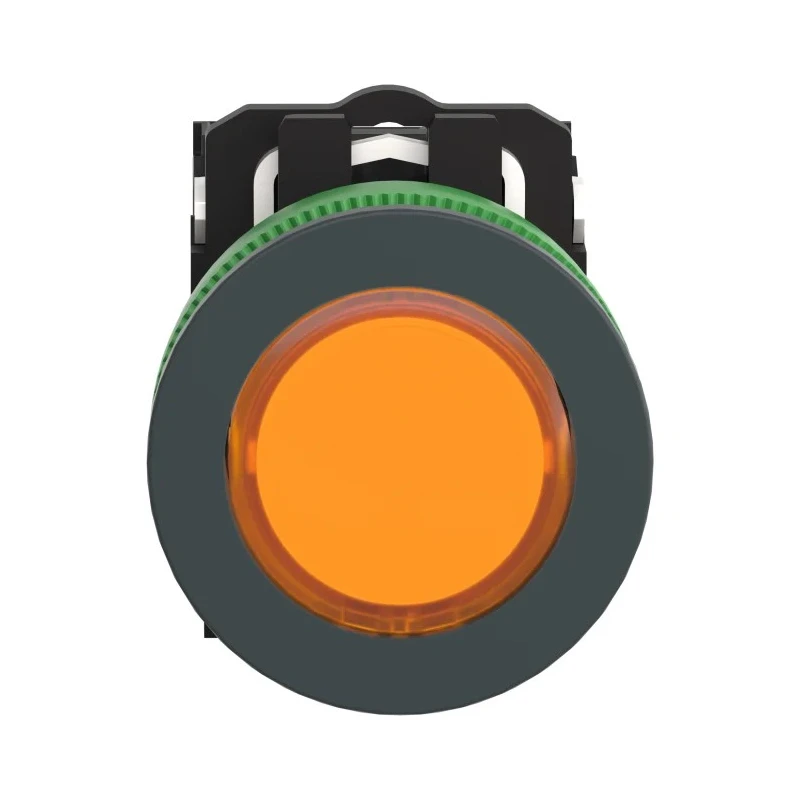

The switch is intended for panel mounting with a standard 30 mm cutout size and includes a round actuator in orange colour enhanced by an orange LED illumination to ensure clear operational feedback. It operates on 24 V AC/DC power supply, making it suitable for various control circuits requiring 1 NO/1 NC contact configuration.

Featuring spring return actuation, the switch returns to its original position after being pressed, providing reliable and secure operation. Its IP66, IP67, IP69, and IP69K ratings certify resistance to dust, water, and steam, allowing usage in food processing, marine, and other harsh environments.

Compliance with standards such as EN/IEC 60947-1, UL 508, CSA C22.2 No 14, and JIS C8201 ensures global safety and performance approvals. Its screw clamp terminal type provides secure electrical connections with high vibration resistance, supported by shake-proof terminal screws.

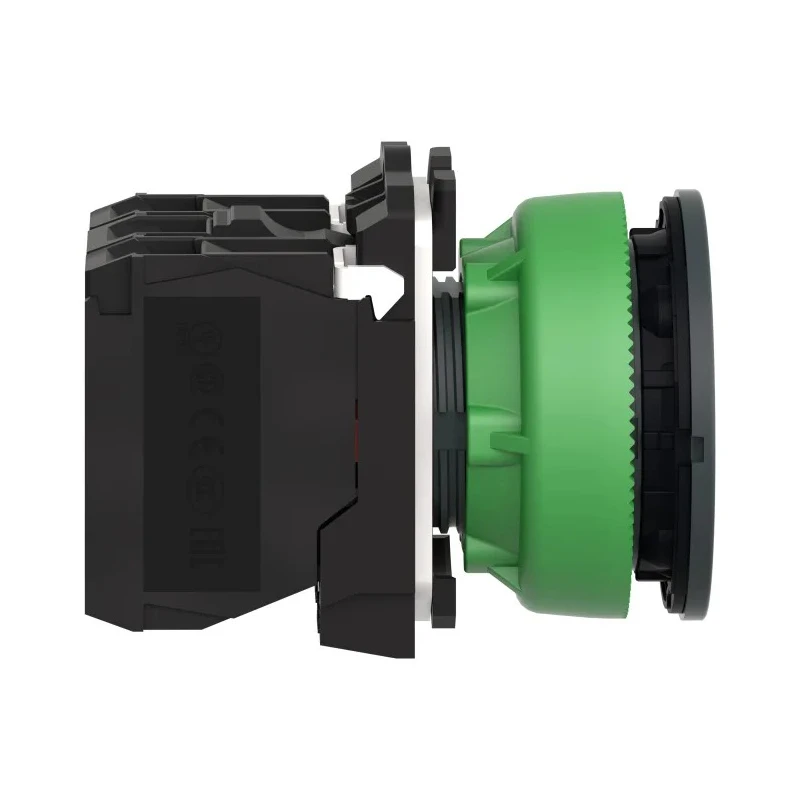

The switch's compact dimensions (36.6mm width, 42mm height, and 55mm length) and lightweight (52 grams) ease installation and integration. Various connection options and a wide range of accessories, including blanking plugs, metal rings, and protective washers, allow customized panel configurations.

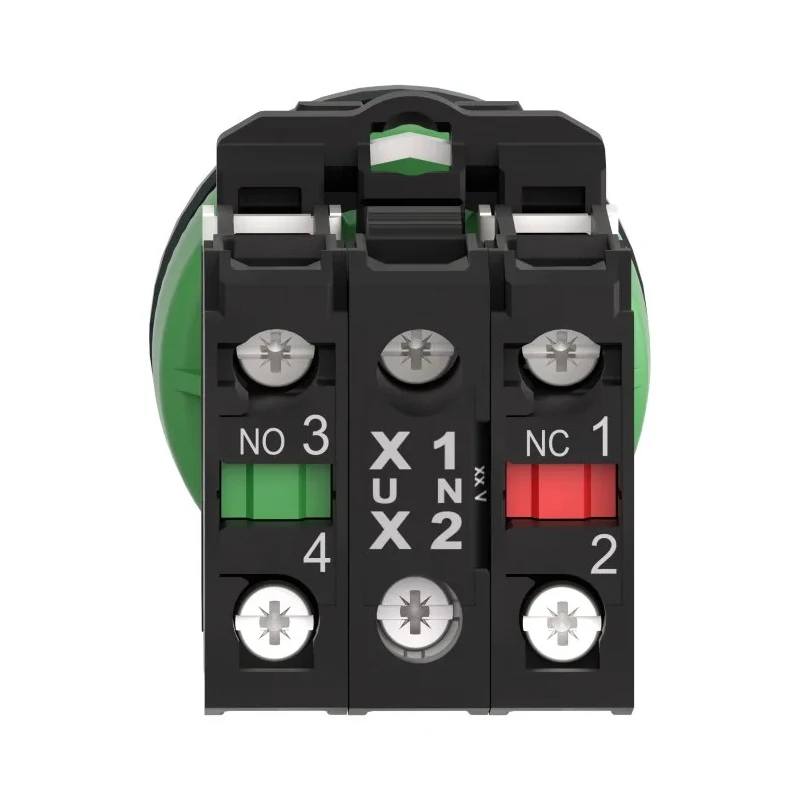

Features an orange LED for clear visibility. Designed for panel mounting with a 30 mm diameter cutout. Operates with a spring return mechanism for reliable switching. Contact configuration is SPDT with 1 normally open and 1 normally closed contact.

Rated for 24 V AC/DC voltage with a maximum contact current of 10A. Protection ratings include IP66, IP67, IP69, and IP69K for harsh environments. Compliance with multiple international standards including EN/IEC 60947 and UL 508.

Compact dimensions of 36.6mm width, 42mm height, and 55mm length.

This Schneider Electric push button switch suits diverse industrial segments such as manufacturing, automation, marine, food and beverage processing, and building infrastructure. It is repairable by the end user, supporting sustainability and product longevity. Easily installed in control panels, it enhances operational safety and control efficiency.
