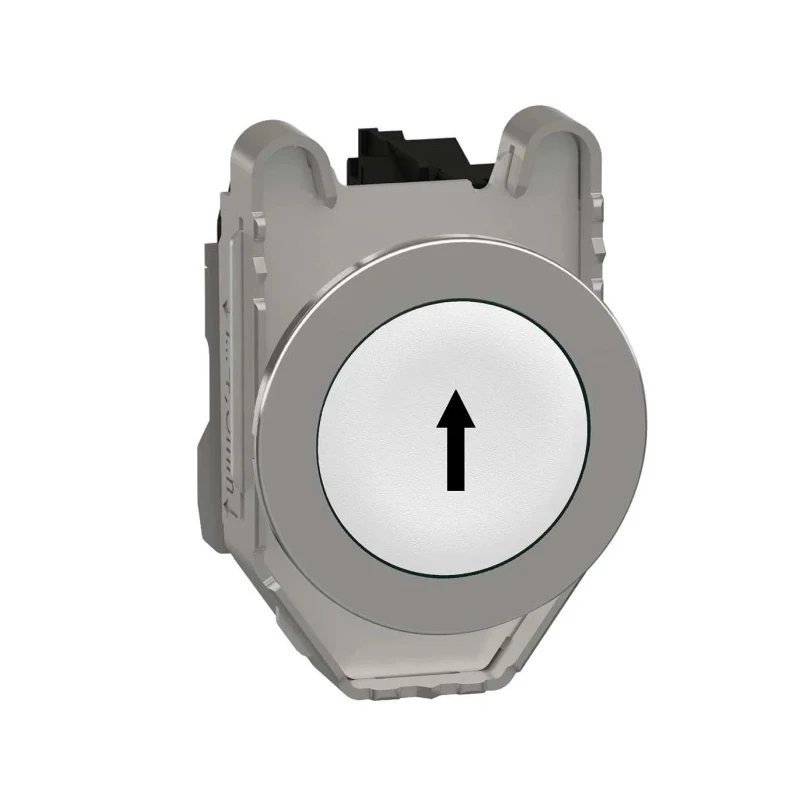

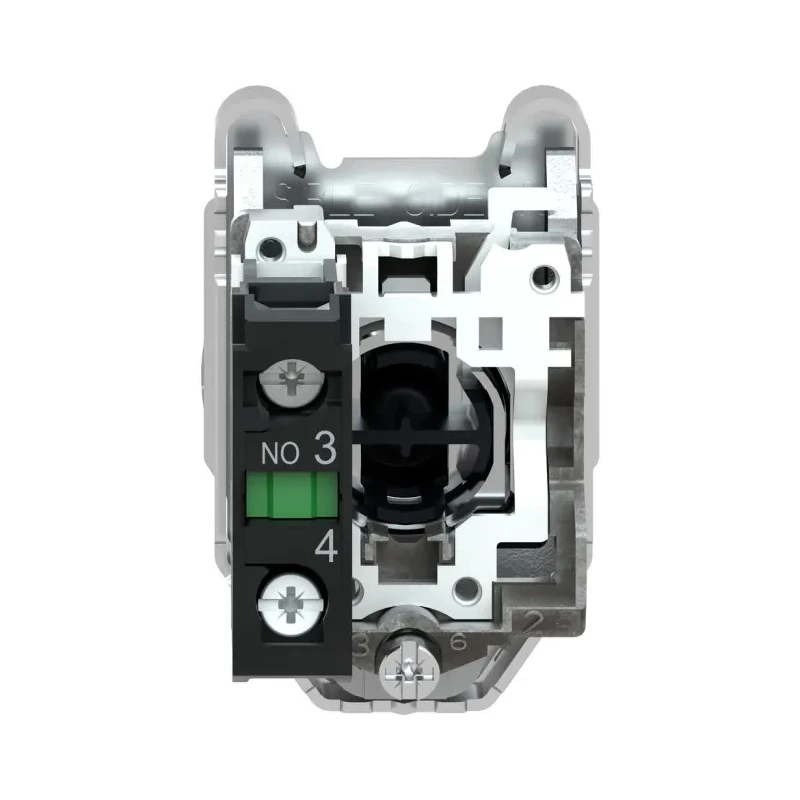

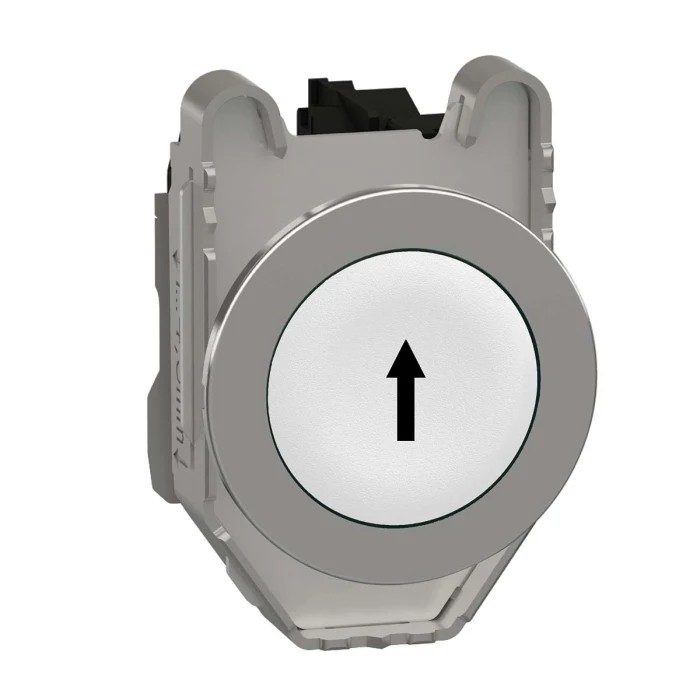

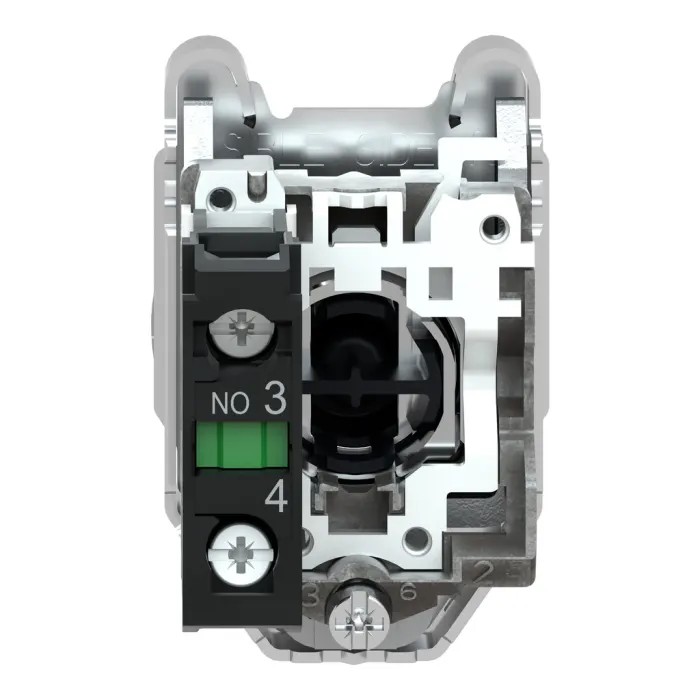

Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout, SPST, White XB4FA3341
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 47mm |
| Length | 55mm |
| Model | XB4FA3341 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Width | 36.6mm |
| Mount Type | Panel |
| Series | Harmony XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NO |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| LED Colour | White |
| Switch Operation | Spring Return |
| Actuator Colour | White |
| Contact DC Voltage | 600V dc |
| Actuator Style | Round |
| Switch Contact Current | 10A |
| Contact AC Voltage | 240V ac |
| Better World Claim | Repairable by the End User |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| Ideal in extreme environments | food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure |
Key Features
- Features a white round actuator with white LED illumination for clear status indication.
- Single Pole Single Throw (SPST) switch configuration with 1 NO slow break contact.
- Robust chromium-plated bezel and zamak fixing collar ensure durability and aesthetics.
- Suitable for harsh environments with IP66, IP67, IP69, and IP69K ratings for dust and water resistance.
- Operates reliably in temperatures from -40°C to 70°C with high vibration resistance.
- Mounts flush with panel using 30.5 mm mounting diameter with easy screw terminal connections.
- Compliant with international standards including EN/IEC 60947 series, UL 508, CSA C22.2, and JIS C8201.
Product Description
Schneider Electric XB4FA3341 is a Harmony XB4 Series push button switch designed for panel mounting with a 30 mm cutout size. This push button features a white, round actuator with white LED illumination and a spring return mechanism, making it ideal for control and signaling in demanding industrial environments.
The product offers a Single Pole Single Throw (SPST) contact configuration with one normally open (1 NO) slow break contact. The robust chromium-plated bezel and zamak fixing collar provide durability and ergonomic aesthetics suitable for industrial panels. The push button is flush mounted with a mounting diameter of 30.5 mm, simplifying panel integration.
This switch is engineered to withstand harsh conditions with IP66, IP67, IP69, and IP69K ingress protection ratings ensuring resistance to dust, water jets, high-pressure cleaning, and even steam cleaning. The operating temperature range of -40°C to 70°C and high vibration resistance with shake-proof terminal screws further enhance its reliability in environments such as food and beverage, automotive, mining, and water treatment industries.
The terminals utilize a screw clamp connection for secure wiring. Additional connection options include connectors, Faston connectors, spring terminals, and printed circuit board types, allowing flexible installation requirements. The switch complies with numerous international standards and approvals, including EN/IEC 60947-5-1 and 5-4, UL 508, CSA C22.2, and JIS standards, guaranteeing safety and interoperability.
Packaging includes one unit of the push button switch. Accessories for customization and enhanced installation flexibility are available separately. The ergonomic design combined with high performance and modularity meets broad industrial needs for control and signaling.
White round actuator with white LED for indication. Spring return mechanism with single normally open contact. Flush mount design with 30 mm panel cutout. High ingress protection: IP66, IP67, IP69, IP69K. Operating temperature range from -40°C to 70°C.
Robust chromium-plated bezel and zamak fixing collar. Compliance with international safety and performance standards. Suitable for industrial, food processing, automotive, and water treatment applications. Explore more Schneider Electric products and Harmony XB4 Series Push Button Switches on EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) configuration with one normally open (1 NO) slow break contact.
It operates reliably within a temperature range of -40°C to 70°C.
The switch has IP66, IP67, IP69, and IP69K ratings, providing resistance to dust and water jets, as well as high-pressure and steam cleaning.
It is designed for panel mounting with a cutout size of 30 mm.
The switch utilizes screw clamp connections, and also supports connectors, Faston connectors, spring terminals, and printed circuit board types for flexible installation.
This model features a white round actuator with white LED illumination for clear status indication.
The switch can handle a contact current of 10A, with a maximum DC voltage of 600V and AC voltage of 240V.
It is ideal for harsh environments, including applications in food and beverage, automotive, mining, and water treatment industries.
The dimensions are 47 mm in height, 36.6 mm in width, and 55 mm in length.
The switch features a robust chromium-plated bezel and a zamak fixing collar for durability and aesthetics.
It complies with international standards including EN/IEC 60947 series, UL 508, CSA C22.2, and JIS C8201.
The spring return mechanism allows the actuator to return to its original position after being pressed, providing a reliable control function.
