Broadcom 1.9 V Green, Red LED 5 mm (T-1 3/4) Through Hole Dual Colour HLMP-4000

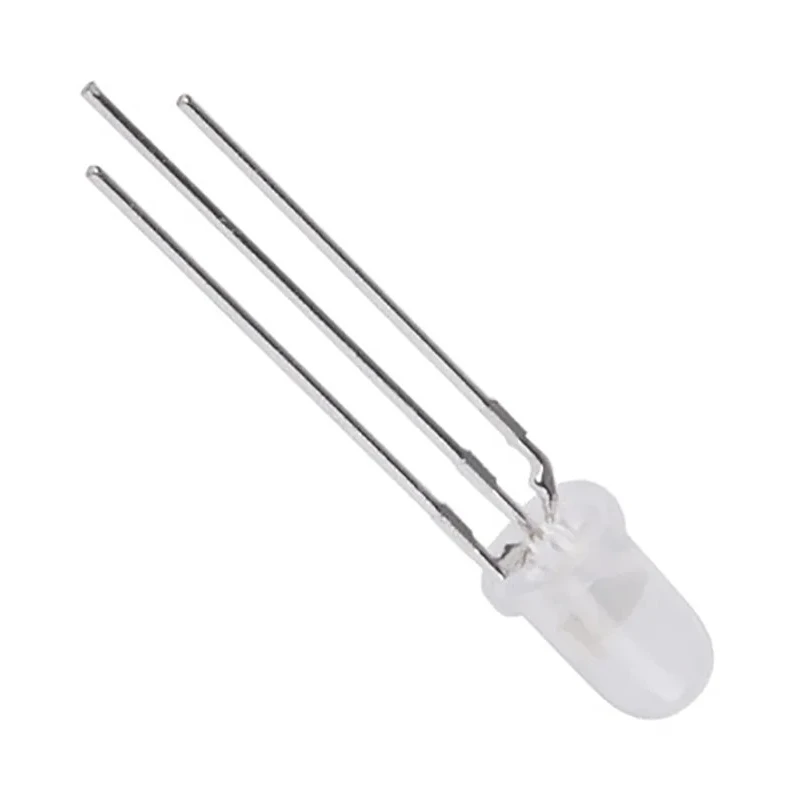

Broadcom HLMP-4000 is a dual colour LED component featuring green and red light emitting diodes in a 5 mm (T-1 3/4) through hole package, designed for precise and reliable indication in electronic devices.

This LED device integrates two LED chips onto a single common cathode lead, enabling dual state illumination with maximum on-axis viewability. The three-lead configuration simplifies circuit design by sharing a common cathode connection.

The HLMP-4000 supports a forward voltage of 1.9 V and a maximum forward current of 50 mA, dissipating up to 125 mW power, ensuring robust and stable performance under typical operating conditions. It has a lens diameter of 5 mm and lens length of 9.19 mm, featuring a clear round lens that provides a 65° viewing angle for effective indicator visibility.

With luminous intensities of 2.1 mcd for green and 4.2 mcd for red LEDs, this component offers clear visual feedback suitable for industrial and consumer electronics, instrumentation, control panels, and signal indicators.

The HLMP-4000 is packaged in tape and reel format, making it compatible with automated pick-and-place assembly machinery, improving manufacturing efficiency. It conforms to RoHS standards, ensuring compliance with environmental and safety regulations.

This product is ideal for applications requiring dual colour indication with compact sizing and easy PCB mounting through a 3-pin through-hole design. Effective dual colour operation for clear visual indication. Maximum forward current of 50 mA ensures efficient performance.

Compact 5 mm round lens with 65° viewing angle provides excellent visibility. Three-lead design with one common cathode for simple wiring. Suitable for tape and reel packaging for automated assembly. Maximum power dissipation rated at 125 mW for reliable operation.

Dominant wavelength of 626 nm for bright red LED emission. RoHS compliant ensuring environmental safety. Lens dimensions of 5 x 9.19 mm with clear finish for optimal light output.

This Broadcom LED HLMP-4000 is specially suited for industrial electronics, control devices, instrumentation, and other applications needing reliable dual-colour light indication. Browse EnvMart's extensive Electronics Components catalog for complementary components and accessories.
