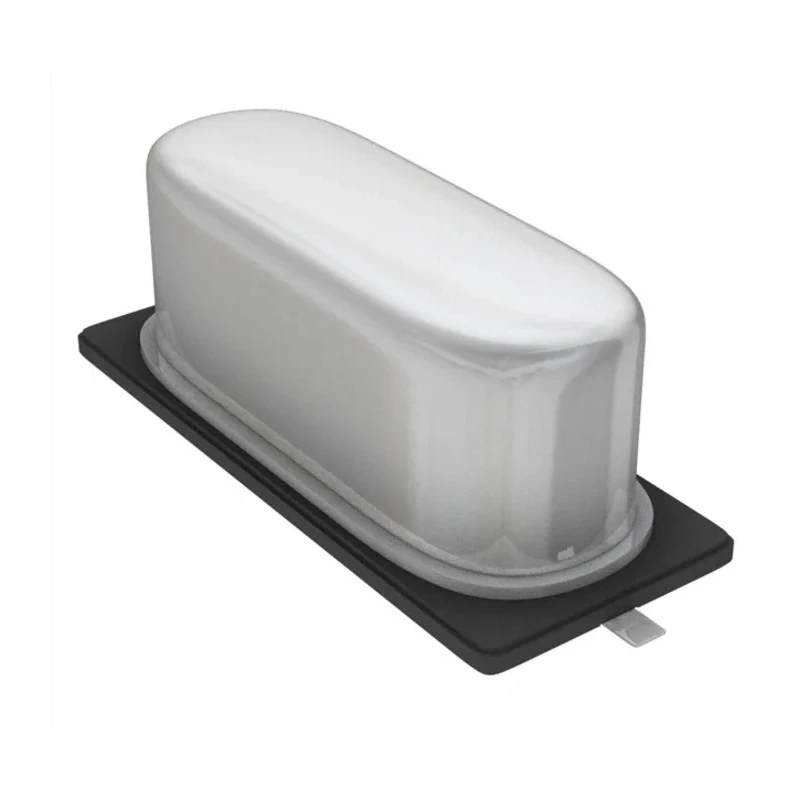

Abracon 16 MHz Surface Mount Crystal ±20 ppm Frequency Tolerance HC-49 Package ABLS-16.000MHZ-B2-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 4.2mm |
| Length | 11.4mm |
| Model | ABLS-16.000MHZ-B2-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Surface |
| Series | ABLS |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS, REACH |
| Standard Frequency | 16MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
Key Features
- Standard frequency of 16 MHz ensures accurate clock signals.
- Surface mount type allows compact PCB assembly.
- Load capacitance of 18 pF for stable oscillation.
- Operating temperature range from -20°C to 70°C suitable for diverse environments.
- Series resistance of 40 Ω ensures low electrical loss.
- Compliance with RoHS and REACH standards.
- Packaged on tape & reel for ease of automated assembly.
Product Description
Abracon ABLS-16.000MHZ-B2-T is a precision 16 MHz crystal unit designed for surface mounting applications in electronic devices. With a frequency tolerance of ±20 ppm and stability of ±50 ppm, it offers reliable timing performance essential for microprocessors, modems, computers, and wireless applications.
Its HC-49 package type features compact physical dimensions of 11.4 mm length, 4.7 mm width, and 4.2 mm height, enabling space-efficient PCB layout. The crystal's load capacitance is 18 pF, tailored for stable oscillation in crystal oscillators. It operates reliably across temperatures from -20°C up to 70°C, making it suitable for standard industrial and commercial environments.
Series resistance of 40 Ω keeps electrical losses low, optimizing signal integrity. This ABLS series component complies fully with RoHS and REACH environmental standards, assuring safe and sustainable use in manufacturing.
The product is supplied on tape and reel packaging, facilitating automated pick-and-place assembly in high-volume PCB manufacturing. Its country of origin is China and it is produced by the trusted brand Abracon, known for quality crystal components.
Commonly applied in industrial electronics, telecommunications, and computing systems, this crystal unit delivers dependable frequency generation critical to synchronized operation of various electronic circuits.
Standard frequency of 16 MHz ensures accurate clock signals. Surface mount type allows compact PCB assembly. Load capacitance of 18 pF for stable oscillation. Compact dimensions: 11.4 mm length, 4.7 mm width, 4.2 mm height.
Operating temperature range from -20°C to 70°C suitable for diverse environments. Series resistance of 40 Ω ensures low electrical loss. Compliance with RoHS and REACH standards. Packaged on tape & reel for ease of automated assembly.
Explore more Crystal Units and oscillators from Abracon at EnvMart for all your electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz, ensuring accurate clock signals for various electronic applications.
The load capacitance of this model is 18 pF, which is tailored for stable oscillation in crystal oscillators.
This crystal unit has compact dimensions of 11.4 mm in length, 4.7 mm in width, and 4.2 mm in height, allowing for efficient PCB layout.
It operates reliably within a temperature range of -20°C to 70°C, making it suitable for standard industrial and commercial environments.
The series resistance of this model is 40 Ω, which helps to keep electrical losses low and optimizes signal integrity.
The product is packaged on tape and reel, facilitating automated pick-and-place assembly in high-volume PCB manufacturing.
It complies with RoHS and REACH standards, ensuring safe and sustainable use in manufacturing.
This model is a surface mount type, which allows for compact assembly on printed circuit boards (PCBs).
It is commonly applied in industrial electronics, telecommunications, and computing systems, providing dependable frequency generation.
The package type of this crystal unit is HC-49, which is designed for surface mounting applications.
The crystal unit is manufactured by Abracon, a brand known for quality crystal components.
The frequency tolerance of this model is ±20 ppm, ensuring reliable timing performance for various applications.
