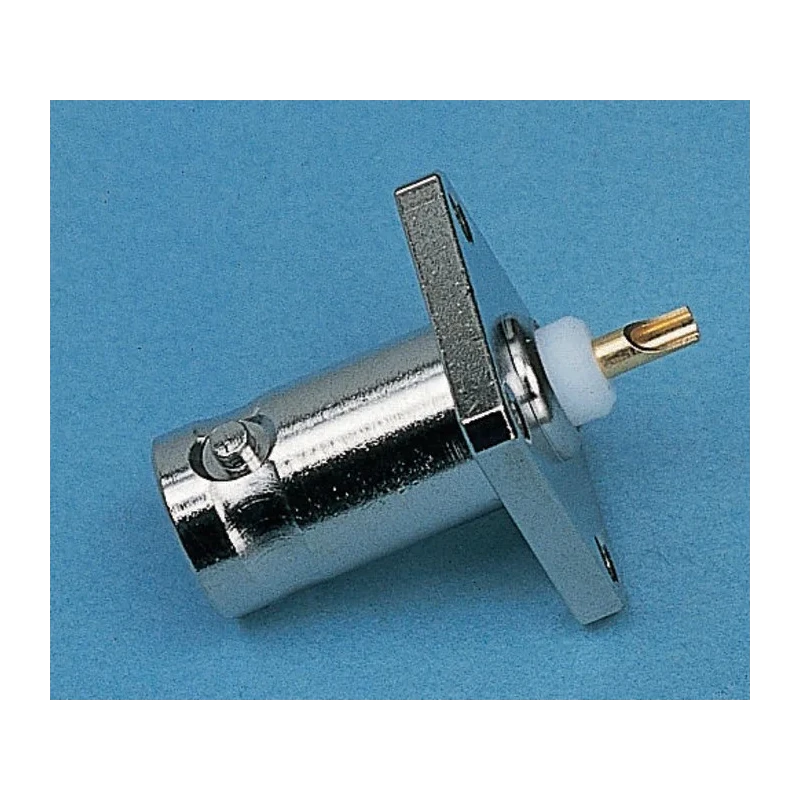

Telegartner BNC Series Coaxial Connector Flange Female BNC, 50 Ω, Straight Body Solder J01001A0613
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01001A0613 |
| Mount Type | Flange |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Features flange mount type suitable for panel applications.
- Supports operating frequency up to 4 GHz for high-frequency performance.
- Constructed with nickel-plated body and gold-plated beryllium copper contacts for durability.
- Operating temperature range from -65°C to 165°C.
- Equipped with bayonet coupling for secure and easy connections.
- Provides IP54 rating between mated plug and jack for environmental protection.
- Connector gender is female with normal polarity and standard size.
- Termination is by solder type suitable for robust assembly.
Product Description
Telegartner J01001A0613 BNC Series Coaxial Connector Flange Female BNC, 50 Ω, Straight Body Solder is a high-quality RF coaxial connector designed for demanding industrial and commercial applications. It features a flange mount type that is ideal for panel installations. The connector supports operating frequencies up to 4 GHz, enabling efficient signal transmission for data, video, and other RF applications.
The body plating is nickel for corrosion resistance, while the contacts are made of beryllium copper and plated with gold to ensure excellent conductivity and durability. This connector operates reliably within a temperature range of -65°C to 165°C, suitable for harsh environments.
Its bayonet coupling mechanism allows for quick and secure connections with just a quarter turn, providing ease of use and reliability. Rated IP54 between mated plug and jack, it offers protection against dust and water spray, making it suitable for various industrial conditions.
This Telegartner flange mount BNC connector is female gender with a straight body configuration and uses solder termination for secure wiring. Its normal polarity and standard size make it compatible with many coaxial systems. Manufactured in Germany, this product reflects rigorous quality standards for professional use.
Features flange mount for panel applications. Supports up to 4 GHz operating frequency. Nickel-plated body and gold-plated, beryllium copper contacts. Wide operating temperature from -65°C to 165°C. IP54 rated bayonet coupling mechanism.
Female connector gender, standard size, normal polarity. Solder termination type. Designed for industrial, laboratory, communication, and HVAC RF systems.
This Telegartner BNC series coaxial connector is recommended for use in electronic communication systems, signal transmission networks, test and measurement setups, and other demanding environments requiring stable and high-frequency RF connections. Explore more Coaxial Connectors and accessories in EnvMart’s comprehensive electronics components catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 4 GHz, making it suitable for high-frequency applications.
It operates reliably within a temperature range of -65°C to 165°C, accommodating harsh environmental conditions.
The connector utilizes a solder termination type, which ensures a secure and robust assembly.
The contacts are made of beryllium copper and are plated with gold for excellent conductivity and durability.
It has an IP54 rating between the mated plug and jack, providing protection against dust and water spray.
Yes, it features a flange mount type that is ideal for panel applications.
This model is a female connector with normal polarity, compatible with standard coaxial systems.
It is manufactured in Germany, reflecting rigorous quality standards for professional use.
It is equipped with a bayonet coupling mechanism, allowing for quick and secure connections with a quarter turn.
The body is nickel-plated, which provides corrosion resistance and durability.
It is recommended for use in electronic communication systems, signal transmission networks, and test and measurement setups.
This model has an impedance of 50 Ω, making it suitable for various RF applications.
