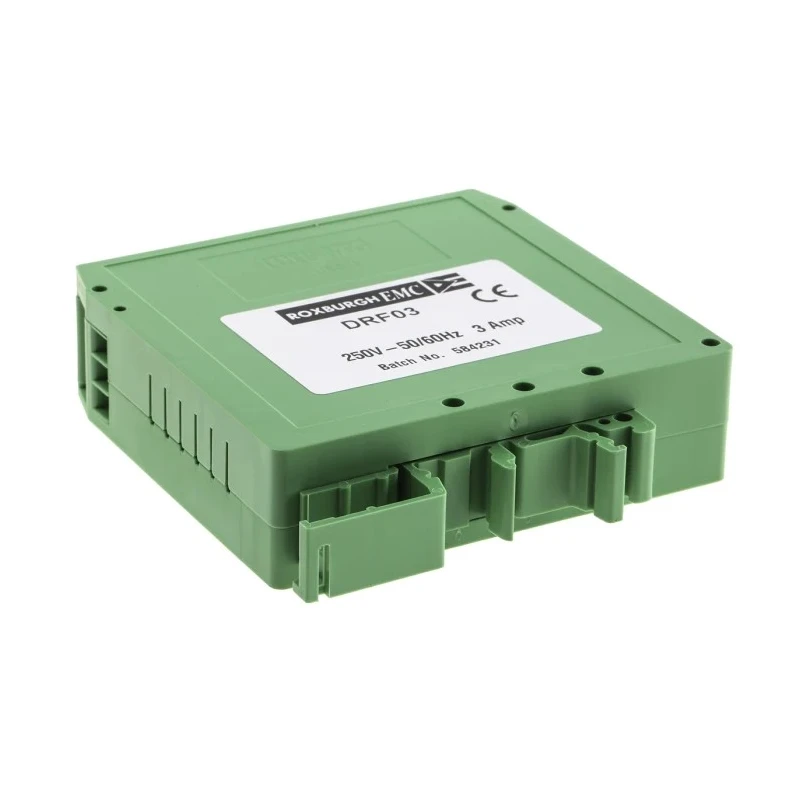

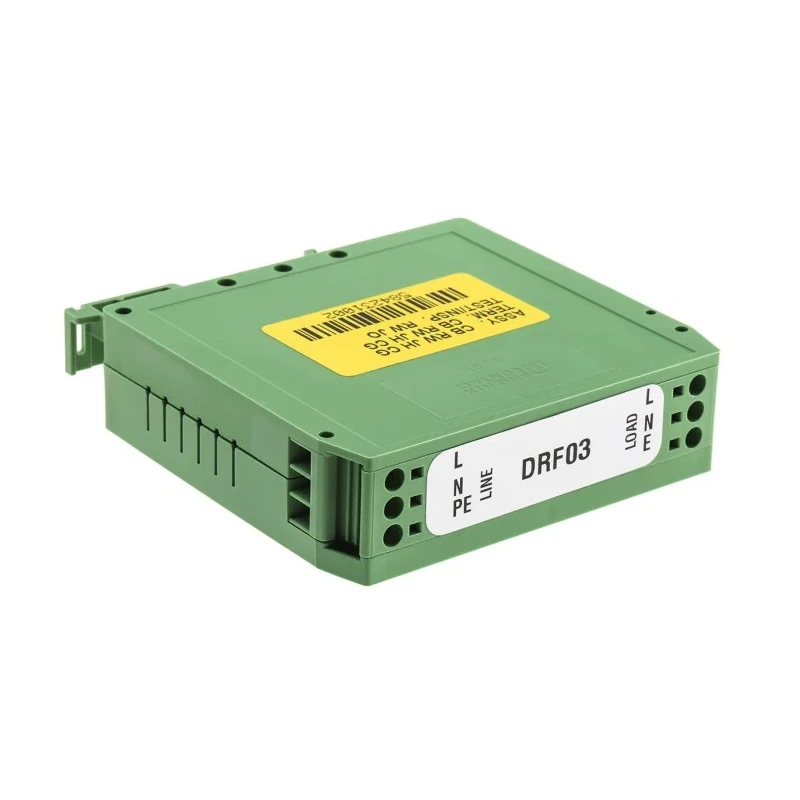

Roxburgh EMC DIN Rail RFI Filter 3A 250V AC 440Hz Screw Termination Single Phase DRF03

Roxburgh EMC DRF03 DIN Rail RFI Filter is a high-performance, single-phase power line filter rated for 3 amperes and 250 volts AC at a frequency of 440Hz. It is specifically designed for mounting on DIN rails in electrical panels, providing reliable spike and surge protection across the line for both AC and DC applications.

This filter utilizes a screw termination style, allowing for secure and universal fitting compatible with both 'Top Hat' and 'G-Type' DIN rails common in industrial and commercial electrical installations.

The DRF03 filter features a capacitance of 1μF and an inductance of 3.2mH, effectively suppressing electromagnetic interference and radio frequency interference in the range of 150 kHz to 30 MHz. Leakage current is maintained at a low 1.46mA, enhancing operational safety.

Built to meet EN 60939 standards, this filter guarantees compliance with recognized electrical protection norms. It operates efficiently within an ambient temperature range from -25°C to 85°C, with a maximum temperature rise of 30°C at full load, ensuring robust operation in demanding environments.

Its compact physical dimensions - length 80mm, depth 22.5mm, and height 93mm - allow easy integration into control panels where space is limited. The power loss of only 0.64 watts supports energy-efficient system design.

Manufactured in the United Kingdom, the Roxburgh EMC DRF03 combines quality manufacturing with practical industrial use cases including industrial automation, manufacturing control systems, power distribution, and electrical enclosures.

Provides effective spike and surge protection for electrical systems. Designed for mounting on DIN rails with universal fitting for industrial enclosures. Operates efficiently with a capacitance of 1 microfarad and inductance of 3.2 millihenry.

Ensures leakage current of only 1.46 milliamps for safety compliance. Meets EN 60939 standards for EMI and RFI filtering effectiveness. Can operate within a temperature range from -25°C to 85°C ensuring durability. Compact design dimensions of 80mm x 22.5mm x 93mm (LxDxH) for space-saving installation.

Power loss is minimal at 0.64 watts, maintaining system efficiency. Terminated using screw terminals for secure electrical connection. Manufactured in the United Kingdom ensuring quality and reliability.
