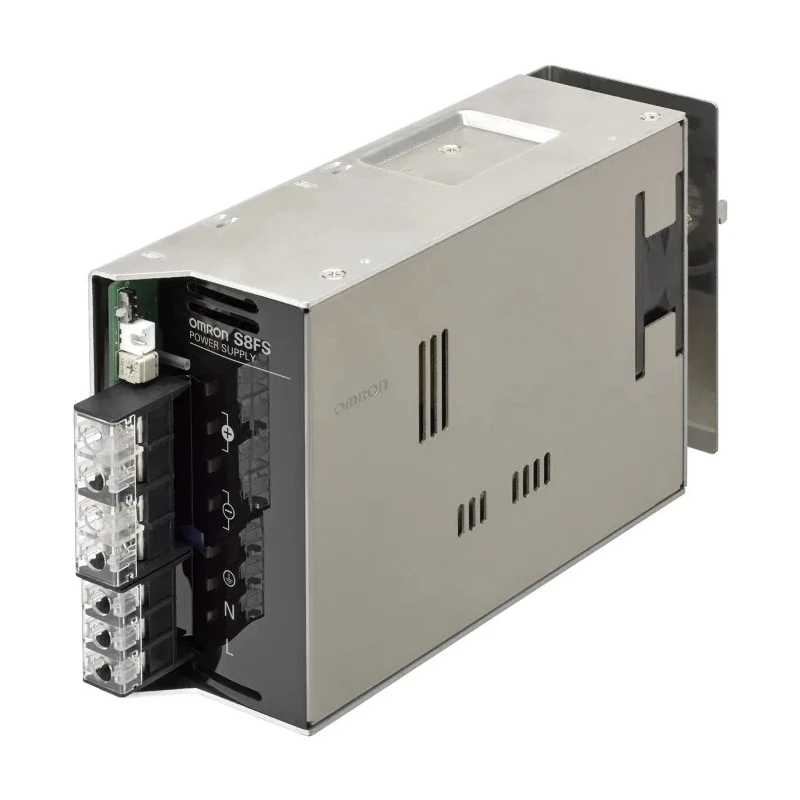

Omron S8FS-G Switched Mode DIN Rail Power Supply 264 V ac, 370 V dc AC Input 48 V dc, 7 A Output DC 300 W

Omron S8FS-G30048CD DIN Rail Power Supply is a reliable switched mode power supply delivering 300 W of output power at 48 V dc and 7 A output current, designed for industrial and manufacturing applications. It accepts a wide input voltage range of 85 V ac to 264 V ac and 120 V dc to 370 V dc, supporting operation in varied power environments. The natural air cooling design and built-in IEC 61558-2-16 compliant transformer eliminate the need for external cooling or transformers, enhancing compactness and efficiency.

This covered type power supply features screw terminals with screws designed to prevent loosening, ensuring secure connections. It is built to withstand harsh environments with vibration resistance from 10 Hz to 55 Hz, shock resistance to 150 m/s² in multiple directions, and operates reliably in temperatures from -20°C to 70°C. The green output indicator allows for quick visual confirmation of operational status.

The power supply complies with numerous safety and electromagnetic standards including UL 508, EN 50178, EN 55011 Class B, cULus certifications, CSA standards, TUV and CE markings, confirming its suitability for industrial machinery and semiconductor equipment. The compact dimensions of 220.1 mm width, 43 mm height, and 110 mm depth facilitate space-saving DIN rail mounting in control panels and electrical enclosures.

With an efficiency rating of 87%, this power supply effectively minimizes energy loss. Its design caters to harsh vibrations and unstable input voltage scenarios, operating efficiently up to altitudes of 3000 meters. The estimated weight is approximately 0.7 kg, providing a lightweight and space-saving solution.

Compact DIN rail mounted switched mode power supply. Wide input voltage range for flexible application. Natural air cooling and built-in transformer. Shock and vibration resistant for harsh industrial conditions. Complies with multiple international safety standards.

Green output indicator for easy monitoring. Operating temperature range from -20°C to 70°C. Dimensions enable compact installation in control systems. High efficiency with 87% minimum efficiency rating. Long expected operational life of 10 years.

This Omron S8FS-G30048CD power supply is well suited for industrial machinery, semiconductor manufacturing equipment, commercial control panels, and HVAC systems. It provides a reliable and efficient power source in demanding environments requiring stable DC output. Explore more high-quality Omron power supplies and DIN rail mounted power products at EnvMart to meet diverse industrial power needs.
