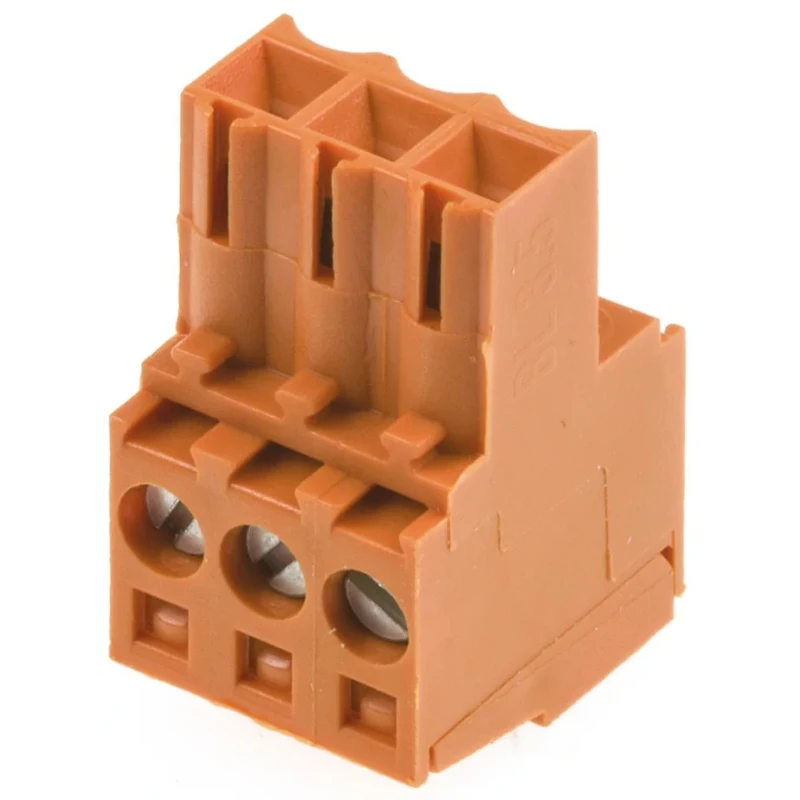

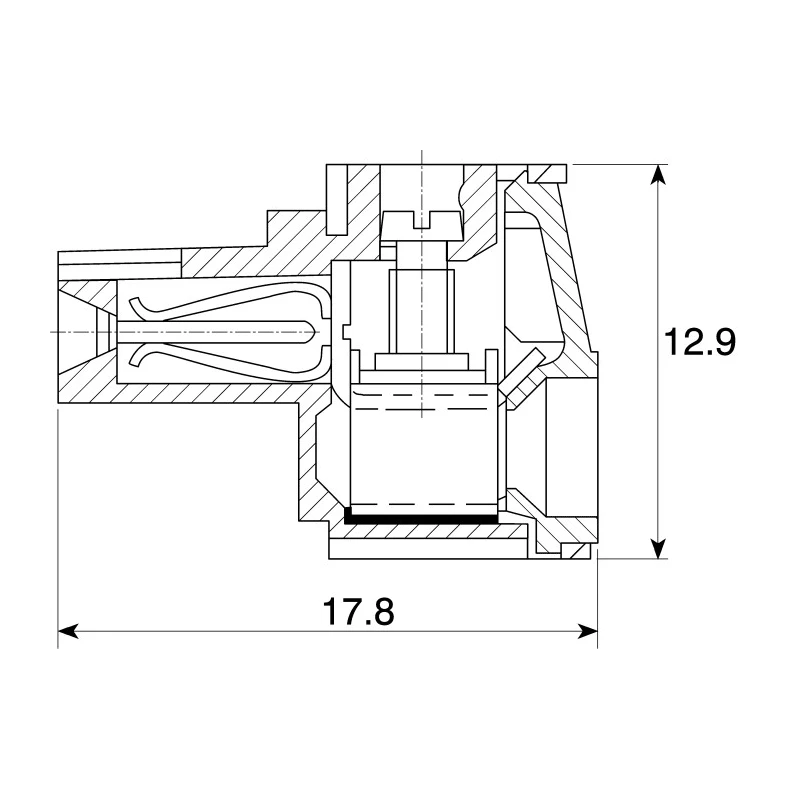

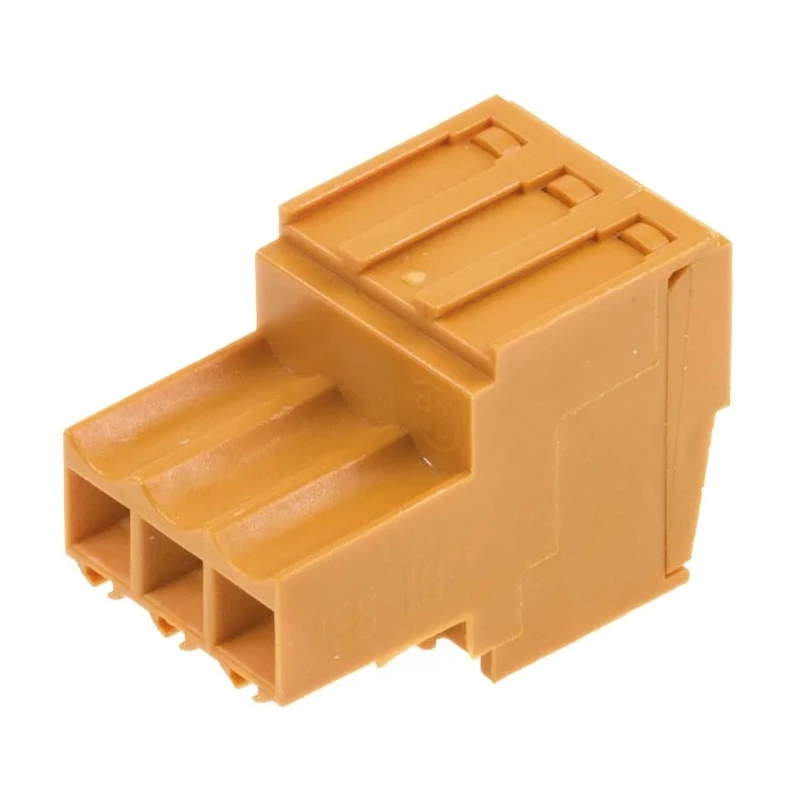

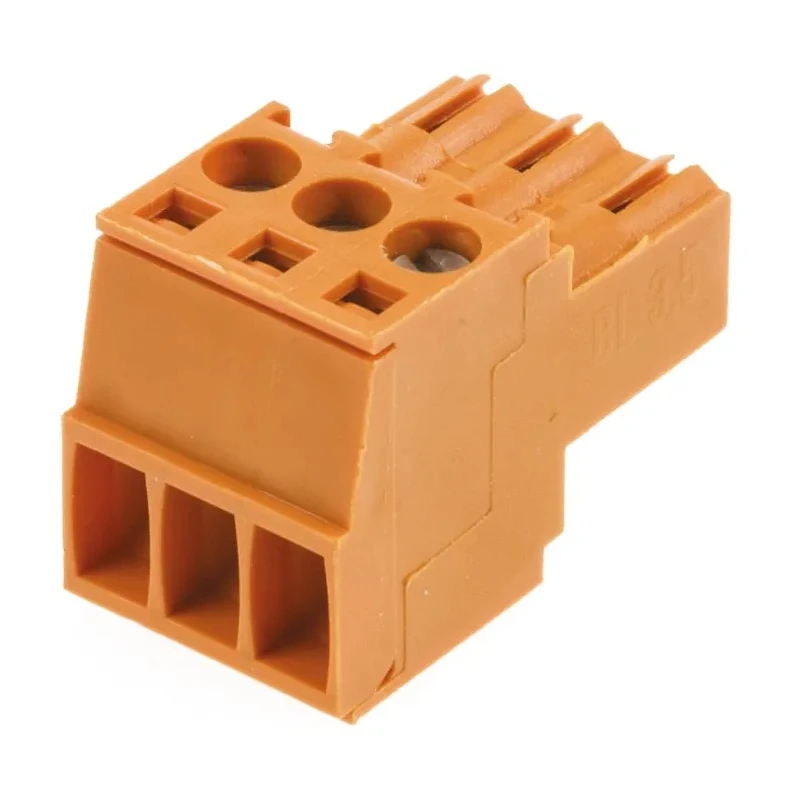

Weidmüller BL Series Pluggable Terminal Block 3-Contact 3.5 mm Pitch 1 Row 320V 17A 1597370000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | 180° |
| Current | 17A |
| Depth | 18.5mm |
| Width | 10.5mm |
| Housing Material | Polybutylene Terephthalate |
| Series | BL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Clamping Yoke |
Key Features
- The block supports a voltage rating of 320V for various electrical applications.
- Current rating up to 17A allows robust power handling.
- Housing is constructed from durable polybutylene terephthalate material in orange color.
- Wire size compatibility ranges from 28 AWG to 14 AWG, supporting 0.08 mm² to 1.5 mm² wires.
- Clamping yoke wire connection method ensures reliable and easy wiring.
- The orientation is 180 degrees, designed for space-saving installation.
- This terminal block is part of the BL series and made in Germany.
Product Description
Weidmüller 1597370000 BL Series Pluggable Terminal Block is a 3-contact, 3.5 mm pitch connector designed for industrial and electronic applications. It features a robust construction using polybutylene terephthalate housing with an orange finish and is engineered for safe and reliable wire connections in power and control circuits operating at up to 320V and 17A current.
This plug connector supports wire sizes from 28 AWG (0.08 mm²) up to 14 AWG (1.5 mm²), utilizing a clamping yoke connection method for secure electrical contact. The single-row arrangement with 3 contacts and 180° orientation ensures easy mounting and compact design suitable for PCB integration.
Within the Weidmüller OMINMATE product family, this terminal block provides space-saving and cost-effective plug-in solutions for various industrial uses including automation, control panels, and manufacturing equipment. The product's dimensions of 10.5 mm width and 18.5 mm depth allow integration into diverse electronic assemblies. Manufactured in Germany, this component offers high quality and durability.
Reliable electrical performance, ease of wiring, and efficient space utilization make the BL Series ideal for industrial, electronic component, and manufacturing sectors requiring dependable connection technology.
The block supports a voltage rating of 320V for various electrical applications. Current rating up to 17A allows robust power handling. Housing is constructed from durable polybutylene terephthalate material in orange color.
Wire size compatibility ranges from 28 AWG to 14 AWG, supporting 0.08 mm² to 1.5 mm² wires. Clamping yoke wire connection method ensures reliable and easy wiring. The orientation is 180 degrees, designed for space-saving installation.
Width is 10.5 mm and depth is 18.5 mm, suitable for compact PCB mounting. This terminal block is part of the BL series and made in Germany. EnvMart offers a range of Weidmüller connectors and terminal blocks tailored for electronic and industrial applications, providing reliable and efficient connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 320V for various electrical applications.
It has a maximum current rating of 17A, allowing for robust power handling.
It supports wire sizes ranging from 28 AWG (0.08 mm²) to 14 AWG (1.5 mm²).
The orientation of this unit is 180 degrees, designed for space-saving installation.
The housing is constructed from durable polybutylene terephthalate material in an orange color.
This terminal block features 3 contacts arranged in a single row.
The pitch of this model is 3.5 mm.
It has a width of 10.5 mm and a depth of 18.5 mm, suitable for compact PCB mounting.
It utilizes a clamping yoke wire connection method for secure electrical contact.
This terminal block is manufactured in Germany.
It is part of the Weidmüller BL series of terminal blocks.
This model is suitable for industrial and electronic applications, including automation and control panels.
