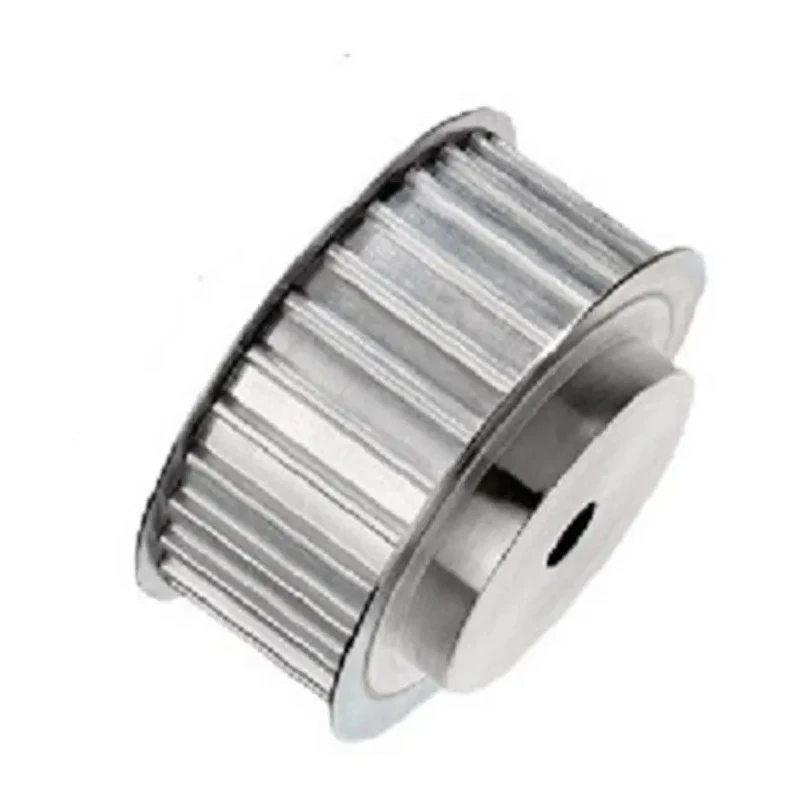

OPTIBELT Timing Belt Pulley Aluminium 25 mm 5 mm Pitch 22 Tooth 22-236AT5

OPTIBELT 22-236AT5 Timing Belt Pulley Aluminium is engineered for reliable mechanical power transmission with HTD belts. This timing belt pulley features 22 teeth designed with a 5 mm pitch size, suitable for precision industrial applications requiring synchronized belt drive mechanisms.

Manufactured from high strength aluminium, the pulley provides a robust yet lightweight solution for belt drives. It has an acceptable belt width of 25 mm and an outside diameter of 33.85 mm, making it optimized for compact mechanical setups.

The pulley includes a flanged design with a flange diameter of 38 mm to ensure belt retention and minimize slippage. It has a finished bore diameter up to 15 mm for secure fitting onto shafts, as well as a pitch circle diameter of 35.12 mm for exact belt engagement.

Compliant with RoHS regulations, this product supports eco-friendly manufacturing standards and is ideal for use in industrial, manufacturing, HVAC, and material handling equipment applications. It is tailored for use with HTD profile belts, enhancing performance in precision conveyor systems and automated machinery drives.

Made from high strength aluminium material for durability. Features 22 teeth with a 5 mm pitch for precise timing belt engagement. Designed with a 25 mm acceptable belt width for compatibility. Includes a flanged design with flange diameter of 38 mm.

Finished bore diameter of maximum 15 mm for secure shaft mounting. Outside diameter measures 33.85 mm ensuring compact dimensioning. Pitch circle diameter of 35.12 mm for accurate belt alignment. Complies with RoHS standards for environmental safety.

Specifically designed for use with HTD belts in industrial machinery. Flanged construction to maintain belt position during operation.

This OPTIBELT Timing Belt Pulley is suitable for a wide range of industrial power transmission applications including material handling, manufacturing machinery, and automation systems. It offers high durability and precision for demanding environments.

Explore its robust design and exact dimensional compatibility when browsing mechanical, fluid power, and power transmission components on EnvMart.
