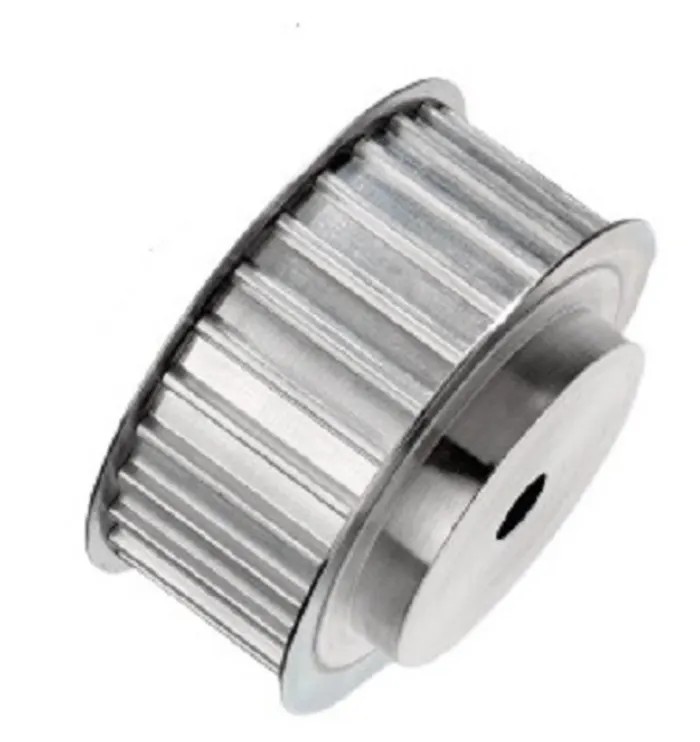

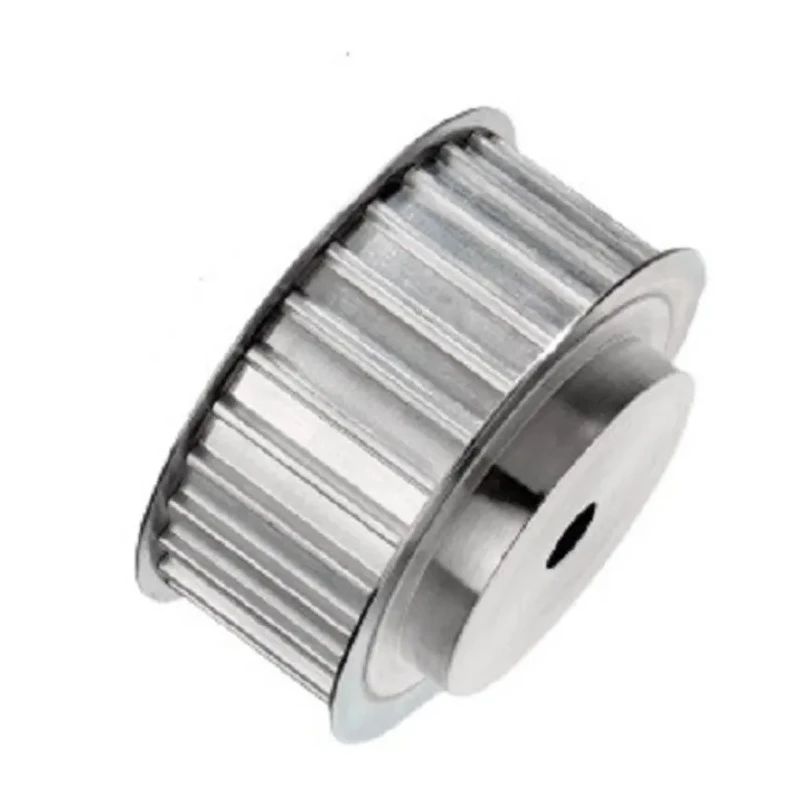

OPTIBELT Timing Belt Pulley Aluminium 16 mm Belt Width 10 mm Pitch 22 Teeth 22-2 31 T10

OPTIBELT 22-2 31 T10 Timing Belt Pulley is a precision-engineered aluminium pulley designed for timing belt drives in various mechanical power transmission systems. Featuring 22 teeth, this pulley is suitable for use with belts having a 16 mm width and a 10 mm pitch, ensuring high operational reliability and efficiency.

The pulley incorporates a pilot bore with a maximum finished bore diameter of 28 mm for secure and precise mounting on shafts. Flanged design with a flange diameter of 75 mm enhances belt guidance, reducing wear and slippage during operation.

With an outside diameter of 68.2 mm and a pitch circle diameter of 70.03 mm, the pulley is designed for accurate force-locking or form-fit connections, optimized for industrial and engineering applications.

The aluminium material offers an excellent balance of strength, corrosion resistance, and weight savings, contributing to the economic efficiency of drive redesigns and maintenance.

This timing pulley is broadly applicable in fields such as manufacturing machinery, automation systems, HVAC drives, and other industrial equipment requiring reliable Timing Belt Pulley solutions.

Constructed from high-quality aluminium for durability and lightweight performance. Designed with 22 teeth ensuring precise timing and power transmission. Compatible with belts having 16 mm width and 10 mm pitch. Features pilot bore with a diameter of 28 mm for secure mounting.

Flanged pulley design with flange diameter of 75 mm to maintain belt alignment. Outside diameter measures 68.2 mm for fitting standard drives. Pitch Circle Diameter is 70.03 mm optimized for timing belt drives. Optimized for use in engineering industries requiring form-fit connection drive pulleys.
