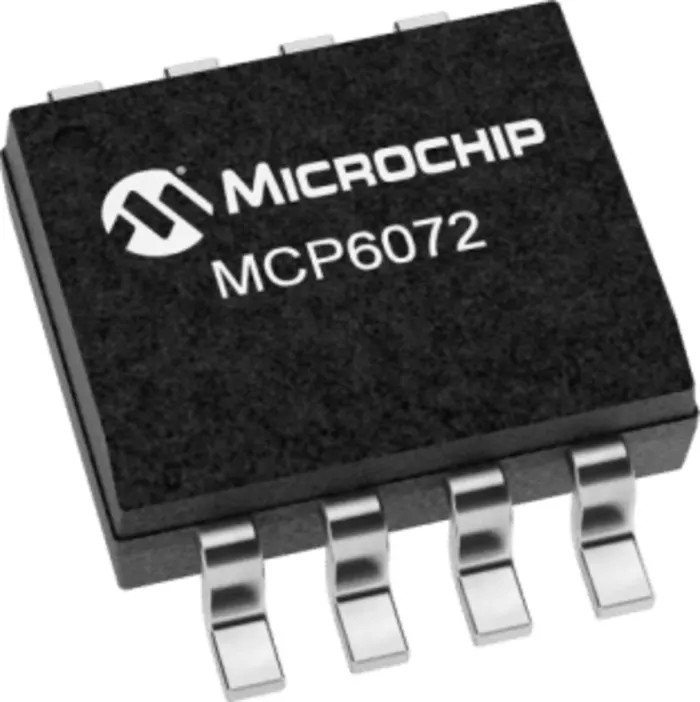

Microchip Operational Amplifier, 1.2 MHz Gain Bandwidth, 8-Pin SOIC, 6V MCP6072T-E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | MCP6072T-E/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6072 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | 100 pA |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 1 pA |
Key Features
- The amplifier is unity gain stable and supports rail-to-rail input and output operation.
- Operates with a supply voltage of 6V with input bias current as low as 100 pA.
- Features a low input offset voltage of ±150 μV maximum for precise signal amplification.
- Has an output current capability of up to 30 mA, suitable for various electronic circuits.
- Supports a wide operating temperature range from -40°C to 125°C for robust use.
- Available in a compact 8-pin SOIC surface mount package measuring 4.9mm x 3.9mm x 1.5mm.
- Complies with RoHS standards and meets Automotive AEC-Q100 qualifications.
- Slew rate of 0.5 V/μs ensures moderate signal response speed appropriate for many analog applications.
Product Description
Microchip MCP6072T-E/SN is a high precision operational amplifier designed for single-supply applications with a 6V voltage rating. The device is unity gain stable and features a gain bandwidth product of 1.2 MHz, making it ideal for battery-powered and low current consumption circuits.
This operational amplifier offers rail-to-rail input and output operation, ensuring maximum dynamic range. Its exceptionally low input offset voltage (±150 μV max) and low input bias current (100 pA typical) provide accurate and stable performance in sensitive analog signal processing.
The MCP6072T-E/SN has an output drive capability of 30 mA, suitable for driving loads in instrumentation, sensor interfacing, and signal conditioning applications. It supports a wide operating temperature range (-40°C to 125°C), making it appropriate for automotive and industrial uses. The device is qualified to AEC-Q100 automotive standards and RoHS compliant.
Its compact 8-pin SOIC surface mount package (4.9 mm length × 3.9 mm width × 1.5 mm height) allows integration into space-constrained printed circuit boards. The device’s slew rate of 0.5 V/μs offers a balance between response speed and noise immunity, ensuring stable operation in various environments.
Unity gain stable with low quiescent current of 110 μA per amplifier. Rail-to-rail input and output for maximized signal range. Gain bandwidth product of 1.2 MHz supports moderate frequency operation. Low input offset voltage and bias current for precision applications.
Automotive-standard AEC-Q100 compliant robustness. Surface mount SOIC package suitable for modern electronics manufacturing. RoHS compliant for environmental safety.
This Operational Amplifier is widely used in industrial control systems, medical instrumentation, battery-powered sensing devices, and audio signal processing. It fits well in applications demanding accuracy, low power consumption, and compact size.
Explore more Microchip amplifiers and semiconductors on EnvMart for diverse electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.2 MHz, suitable for moderate frequency applications.
It has an output current capability of up to 30 mA, making it suitable for driving various loads in electronic circuits.
This operational amplifier operates within a wide temperature range of -40°C to 125°C, suitable for both automotive and industrial applications.
It is available in a compact 8-pin SOIC surface mount package, measuring 4.9 mm x 3.9 mm x 1.5 mm.
The MCP6072T-E/SN operates with a minimum supply voltage of 6V.
It features a low input bias current of 100 pA and an input offset voltage of ±150 μV maximum, ensuring precise signal amplification.
Yes, it is qualified to AEC-Q100 automotive standards, ensuring robustness for automotive applications.
The slew rate of the MCP6072T-E/SN is 0.5 V/μs, providing a balance between response speed and noise immunity.
The height of the package is 1.5 mm, making it suitable for space-constrained applications.
This operational amplifier complies with RoHS standards for environmental safety and is designed for modern electronics manufacturing.
It features a single channel design, making it suitable for various single-supply applications.
