Metrix Handheld Multimeter 10 A AC, 10 A DC, 37-Function Range Measurement MX1

Free Delivery in India | Lowest Global Shipping Charges

Metrix Handheld Multimeter 10 A AC, 10 A DC, 37-Function Range Measurement MX1

Name: Metrix Handheld Multimeter 10 A AC, 10 A DC, 37-Function Range Measurement MX1
Brand: Metrix
SKU: 149403
Price: 406.25 USD
Availability: InStock



Category Multimeter Brand Metrix Condition New

Specifications

Country of Origin	India
Brand	Metrix
Battery Life	250h
Battery type	AA
Height	150mm
Length	40mm
Model	MX1
Gross Weight	420g
Width	98mm
DC Current Accuracy	±2 %
AC Current Accuracy	±2.5 %
Standards/Approvals	EN 610101 CAT II
Multimeter Type	Handheld
Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Maximum Resistance Measurement	20kΩ
Maximum AC Current Measurement	10A ac
Maximum DC Current Measurement	10A dc
Maximum Frequency	1000Hz
AA alkaline batteries (stock no.	591-225) also available separately from the catalogue
37 functions and ranges	audible warning with Rapid continuity, safety alarm, measurement up to 1500 V, diode test, measures 10 A DC with low voltage drop
Metrix MX 2B Analogue Multimeter 200A ac 1.5kVBrand	Metrix
PeakTech 3203 Analogue Panel Ammeter 10 A AC/DCBrand	PeakTech

Key Features

Measures AC and DC current up to 10 A with high accuracy.
Includes audible continuity warning and safety alarm for operator protection.
Durable double-insulated design rated up to 1500 V line voltage withstand.
Compact and splash-proof mold with 80 mm linear scale for easy readability.
Uses AA batteries providing approximately 250 hours of usage time.
True RMS measurement is not supported but offers reliable readings within specified accuracy.
Maximum frequency measurement capability is 1000 Hz for versatile signal testing.
Safety locking system prevents accidental disconnection of test leads during measurement.

Product Description

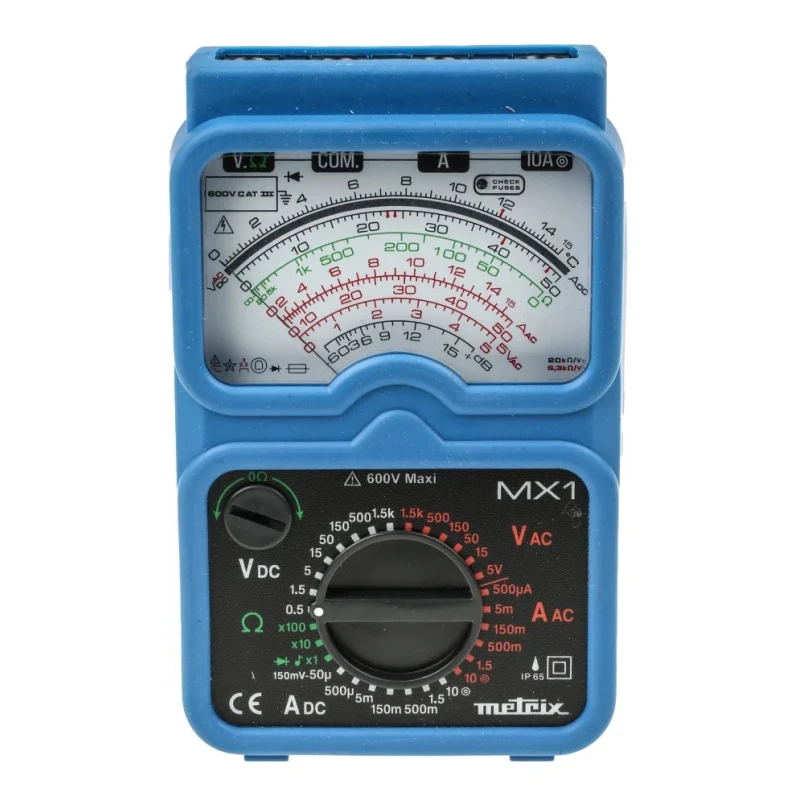

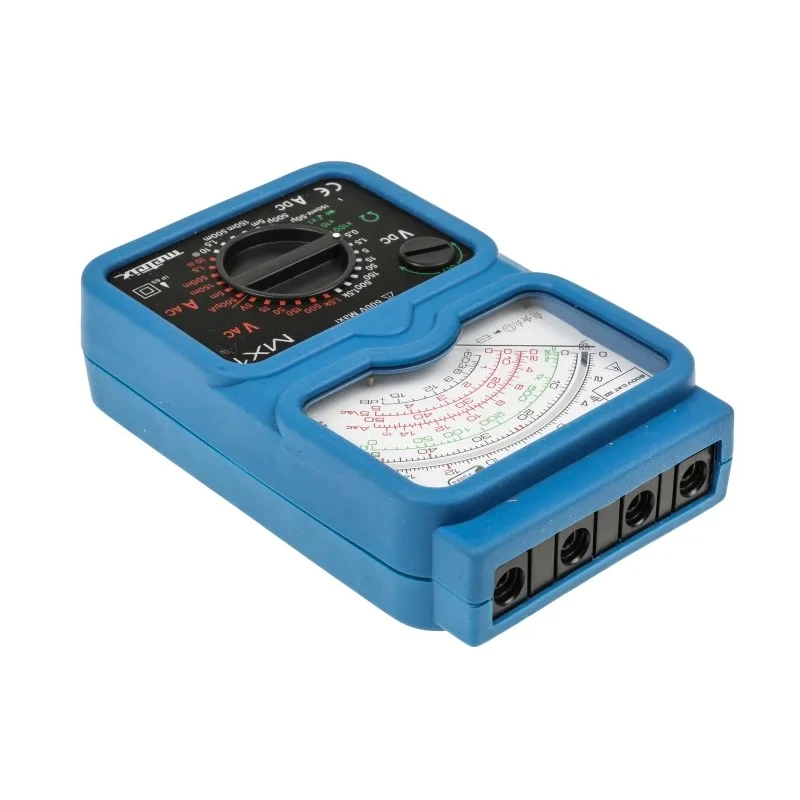

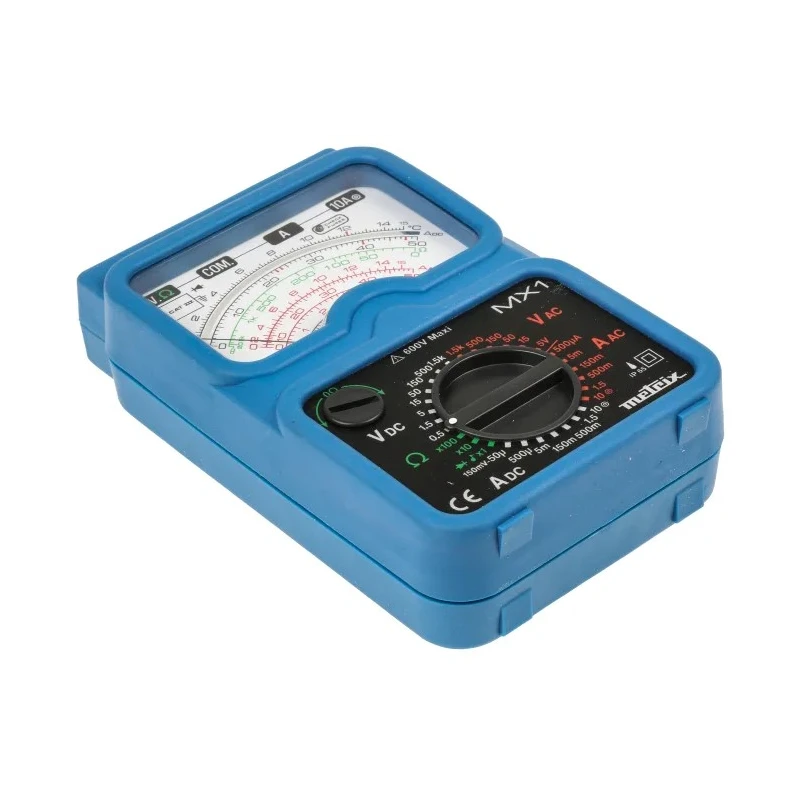

The Metrix MX1 handheld multimeter offers advanced measurement capabilities for electrical testing and troubleshooting in industrial, laboratory, construction, and maintenance environments. This multimeter features 37 different functions and ranges including AC and DC current and voltage, resistance, diode testing, and continuity checks, all within a compact, splash-proof casing.

Designed with operator safety in mind, the MX1 is double insulated to withstand up to 1500 V and includes a SECUR'X locking mechanism to prevent accidental test lead disconnection, ensuring safe battery and fuse replacement. The inputs are transient protected up to 6 kV, suitable for low-energy CAT II electrical environments.

This device supports current measurement up to 10 A for both AC and DC, with a low voltage drop during DC testing, and a maximum resistance measurement up to 20 kΩ. The multimeter features 10 A DC measurement with a ±2 % accuracy and AC voltage accuracy of ±2.5 % reading, suitable for precise electrical diagnostics.

The meter's compact dimensions (150 mm height, 98 mm width, 40 mm length) and lightweight design (420 g) enhance usability in field and laboratory applications. It operates on AA batteries achieving approximately 250 hours of battery life under normal operating conditions.

Additional features include audible continuity warnings, safety alarms, diode test, and measurements up to 1500 V. The multifunction handheld unit is ideal for electrical, HVAC, manufacturing, maintenance, and other professional technical uses.

Measures AC and DC current and voltage with high precision. Robust double insulation and transient voltage protection for safety. 37 functions with audible warnings and safety alarms integrated. Compact handheld design with splash-proof housing.

Long battery life powered by standard AA batteries. Complies with EN 61010-1 CAT II safety standards.

This Metrix MX1 Multimeter is an essential instrument for professionals demanding accuracy, safety, and durability in electrical measurement tools. Browse EnvMart for a wide selection of testing instruments and accessories.
