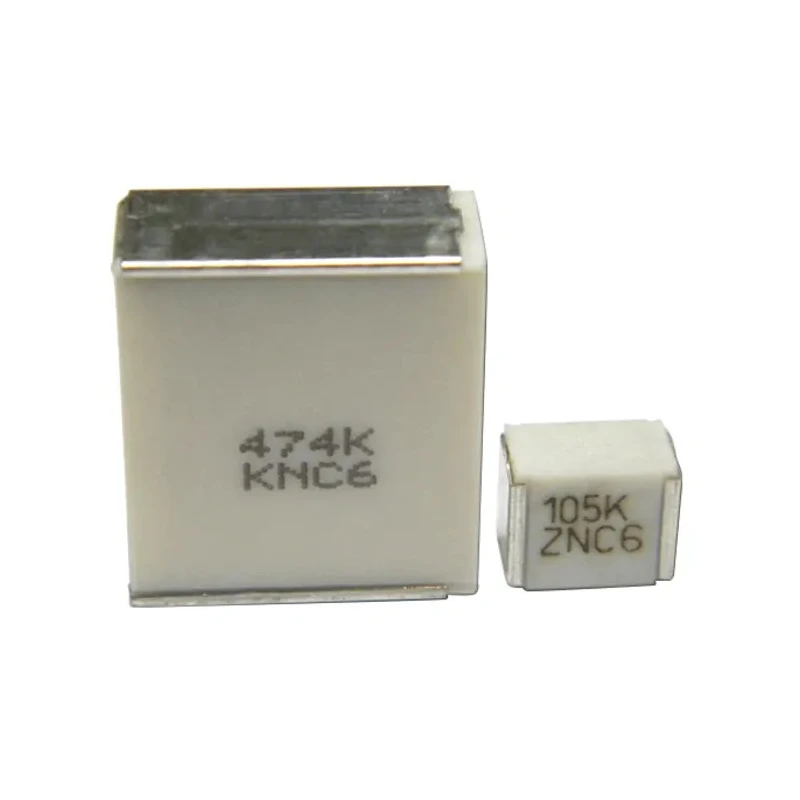

KEMET LDE Film Capacitor ±10% 2.2 nF 1000 V DC 250 V AC Surface Mount 2220 Case LDEQD1220KA5N00

The KEMET LDEQD1220KA5N00 is a high-quality film capacitor manufactured using polyethylene naphthalate (PEN) film designed for surface mounting. It achieves a capacitance of 2.2 nF with a tolerance of ±10%, making it suitable for precise electronic applications.

Rated for a DC voltage of 1000 V and an AC voltage of 250 V, this capacitor is engineered to withstand demanding electrical stress while maintaining stable operation over a temperature range of -55°C to +125°C.

This capacitor meets the automotive standard AEC-Q200, indicating its robustness and compatibility with automotive electronics. It also complies with RoHS directives and features lead-free terminations, supporting environmental standards.

The device's compact 2220 case size with dimensions 6 mm length, 5 mm width, and 2 mm height facilitates its use in space-constrained circuit layouts. A dissipation factor of 0.8% contributes to efficient energy performance.

The capacitor is supplied in a tape and reel packaging format, ideal for automated pick-and-place assembly processes commonly used in industrial manufacturing of electronic devices.

Typical applications include timing circuits, filtering tasks, coupling, and bypassing functions across a wide range of electronic, industrial, automotive, and communications equipment.

Constructed with polyethylene naphthalate (PEN) film for durability. Offers a capacitance tolerance of ±10% for reliable performance. Supports an operating temperature range from -55°C to +125°C. Packaged in tape and reel format suitable for automated assembly.

Complies with RoHS standards and features lead-free terminations. Meets automotive standard AEC-Q200 ensuring suitability for automotive systems. Physical case size 2220 with dimensions 6 mm length, 5 mm width, and 2 mm height.

Dissipation factor of 0.8% ensuring stable electrical characteristics. Designed for timing, filtering, coupling, and bypassing circuit applications.
