KEMET MMK Film Capacitor 100 nF ±10 %, 400 V dc 200 V ac, Through Hole MMK15104K400B04L4BULK

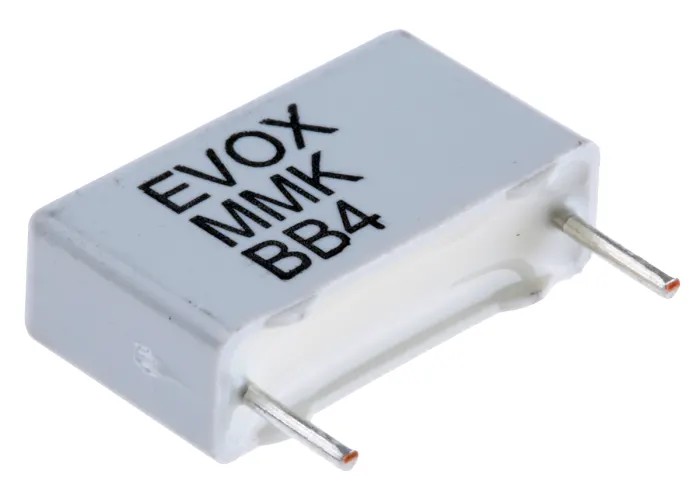

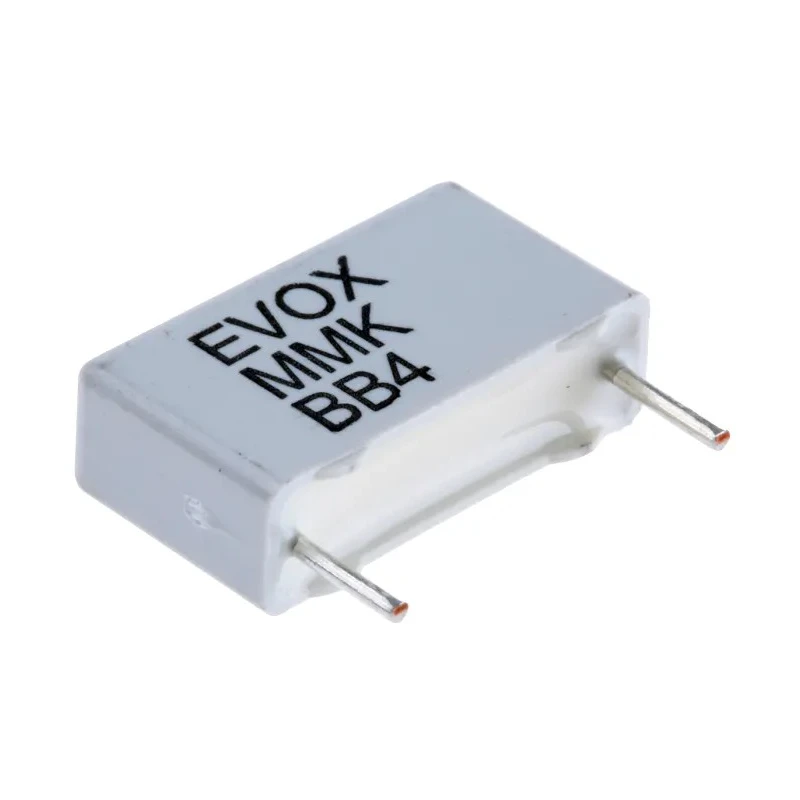

KEMET MMK15104K400B04L4BULK Film Capacitor is a metallized polyester capacitor designed for high reliability and general-purpose electronic applications. With a capacitance of 100 nF and a tolerance of ±10 %, this component can handle a rated DC voltage of 400 V and an AC voltage rating of 200 V, making it suitable for signal coupling and bypassing tasks.

The capacitor features vacuum evaporated aluminium electrodes and is encapsulated in a self-extinguishing material rated UL 94V-0, ensuring safety and durability in various environments. Its radial wire leads with a 15 mm pitch facilitate easy through-hole mounting in printed circuit boards.

This device performs consistently within an operating temperature range from -55°C to 100°C, complying with industry standards DIN 44122 and IEC 60384-2. Physical dimensions measure 18 mm in length, 10.5 mm in height, and 5.5 mm in width, while leads extend 30 mm with a diameter of 0.8 mm, assuring robust electrical connections.

The MMK series capacitors are encapsulated in an environmentally safe, self-extinguishing resin material and are encapsulated for protection against mechanical and environmental stresses. This model, supplied in bulk packaging, is ideal for industrial and commercial manufacturing processes requiring reliable passive components.

This capacitor uses vacuum evaporated aluminium electrodes for stability. Encapsulated in self-extinguishing UL 94V-0 material for flame resistance. Radial leads designed for through-hole mounting with 15 mm lead pitch. Suitable for bypassing and signal coupling in electronic circuits.

Temperature range from -55°C to 100°C supports diverse operating conditions. Compliant with DIN 44122 and IEC 60384-2 standards. Compact dimensions minimize PCB footprint for efficient component layout. Lead specifications: 30 mm length, 0.8 mm diameter for secure soldering.

Packaged in bulk bags to support high-volume assembly lines. Manufactured in Indonesia following rigorous quality controls.

This capacitor is widely used in industrial, manufacturing, electronic prototype, and commercial applications where dependable, stable capacitance is required. Its robust design ensures long service life and risk mitigation in harsh environments.

Explore more KEMET Film Capacitors and other electronic components available at EnvMart for your technical and industrial needs.
