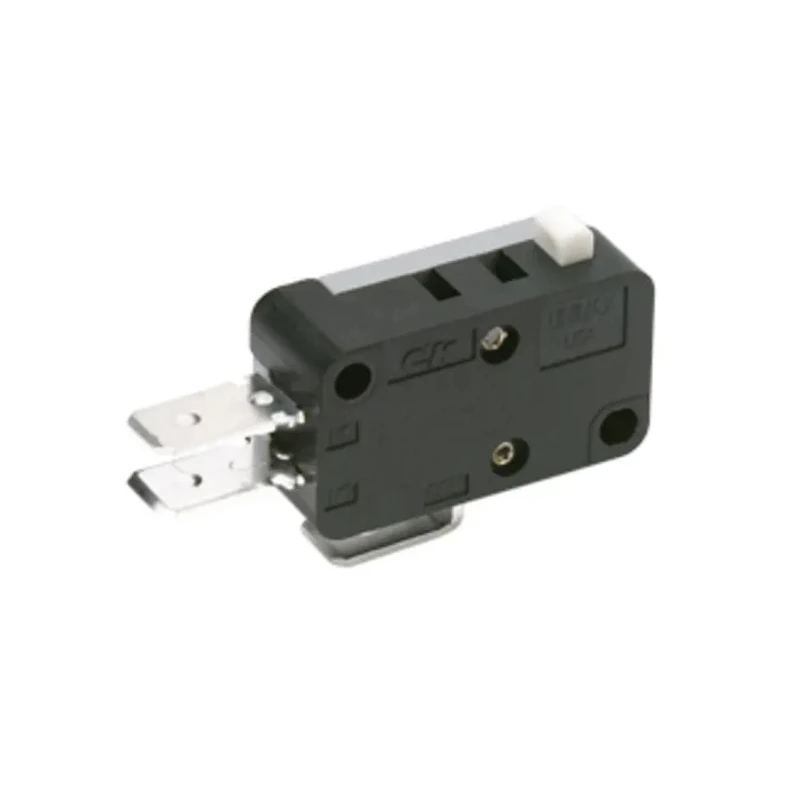

C & K Pin Plunger Snap Action Micro Switch, Solder Terminal, 500 mA/15A, 250 V AC, SPST TMCJG6VP0010Y
Specifications
| Country of Origin | China |
|---|---|
| Brand | C & K |
| Model | TMCJG6VP0010Y |
| Series | TM |
| Maximum Operating Temperature | 150°C |
| Contact Configuration | SPST |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Standards/Approvals | cURus |
| Switch Contact Current | 500, 15mA |
| Operating Force | 150g |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Miniature |
Key Features
- Compact design with a simulated pin plunger lever actuator provides reliable snap action.
- Features solder lug terminals for secure electrical connections.
- Operating force required is 150 grams for actuation.
- Wide operating temperature range from -55°C to 150°C supports diverse environments.
- High durability with up to 350,000 machine life cycles.
- Copper alloy contact material ensures high performance and low cost.
- Certified with cURus standards for safety compliance.
- Ideal for consumer appliances, motors, and pumps applications.
Product Description
C & K TMCJG6VP0010Y Pin Plunger Snap Action Micro Switch is a high-performance miniature switch featuring a spring-loaded lever for precise snap action. It uses a pin plunger actuator and solder terminal mounting to ensure efficient operation at 500 mA and 15 A currents under an AC voltage of 250 V.
The switch requires an operating force of 150 grams to actuate and performs reliably across a wide temperature range from -55°C up to 150°C, making it suitable for various industrial and consumer applications. Its compact and durable design offers up to 350,000 mechanical cycles, leveraging copper alloy contacts for longevity and cost-efficiency.
The device's solder terminals enable stable electrical connections, supporting use in motors, pumps, and other machinery requiring rapid and precise switching. Compact pin plunger actuator for reliable snap action. Solder lug terminals for consistent connectivity.
150 gf operating force for quick response. Operates effectively from -55°C to 150°C. Up to 350,000 machine life cycles for durability. Copper alloy contacts provide excellent conductivity. Certified to cURus standards for quality assurance.
Suitable for consumer appliances, motors, pumps, and automation.
This micro switch is an essential component in industrial automation, consumer electronics, and manufacturing equipment. Its robust engineering and safety certifications make it a reliable choice for high-demand electrical control systems.
Discover more quality Micro Switches in the Electronics & Electricals category on EnvMart for your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 150°C.
It uses a pin plunger actuator for reliable snap action.
This switch requires an operating force of 150 grams for actuation.
The contact configuration is SPST (Single Pole Single Throw).
It operates at a current of 500 mA and 15 A under an AC voltage of 250 V.
This model is designed for up to 350,000 mechanical cycles, ensuring durability.
The switch features solder lug terminals for secure electrical connections.
The operating temperature range is from -55°C to 150°C.
It is certified with cURus standards for safety compliance.
It is suitable for consumer appliances, motors, pumps, and industrial automation.
The contacts are made from copper alloy, providing excellent conductivity.
Yes, it is an essential component for high-demand electrical control systems in automation.
