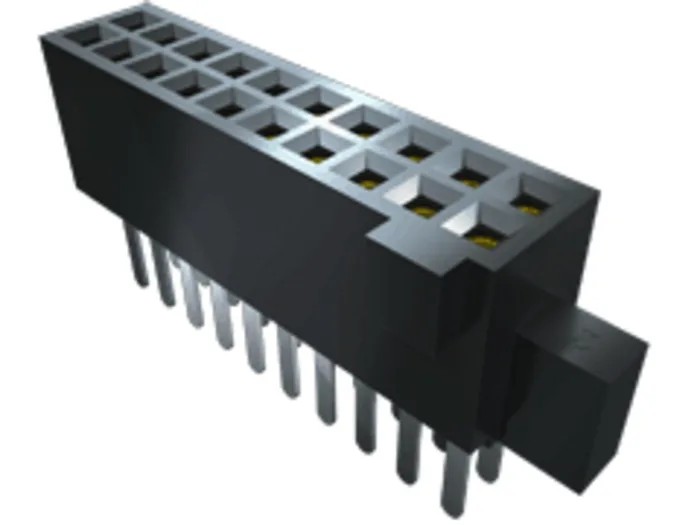

Samtec SFM Series Straight Surface PCB Socket, 10-Contact, 2 Row, 1.27 mm Pitch Solder SFM-105-02-S-D-LC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | SFM-105-02-S-D-LC |
| Mount Type | Surface |
| Special Features | Screw down and solder nail options available for most rugged requirements |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SFM |
| Termination | Through-hole, surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold or Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Cable |
| Stacking Height | 12mm |
| Contact System | Tiger Eye™ |
Key Features
- The socket supports a maximum current of 3.2 A at 250 V voltage rating.
- Constructed with a liquid crystal polymer housing for durability and high performance.
- Features gold or tin plated bronze contacts providing reliable electrical performance.
- Designed with a stacking height of 12 mm and straight orientation for easy integration.
- Operates efficiently across a wide temperature range from -55°C to 125°C.
- The contact system utilizes Tiger Eye™ technology for enhanced reliability.
- Termination options include solder with through-hole and surface mount capabilities.
- Special features include screw down and solder nail options for rugged requirements.
Product Description
The Samtec SFM-105-02-S-D-LC is a high-reliability straight surface PCB socket designed for board-to-board and cable connections. This 10-contact, 2-row socket features a 1.27 mm pitch and is constructed to handle electric currents up to 3.2 A at 250 V, making it suitable for industrial and electronic manufacturing applications.
The housing is made from liquid crystal polymer, ensuring stability and resistance under operational stresses, while the contacts are bronze plated with gold or tin over nickel for optimal conductivity and corrosion resistance. Its stacking height of 12 mm and straight orientation facilitates compatibility with a range of PCB assemblies.
Operating reliably within a temperature range of -55°C to 125°C, this socket incorporates Samtec's Tiger Eye™ contact system that guarantees extended life and high performance. Termination types include solder with both through-hole and surface mount options, supporting versatile mounting requirements.
Additional ruggedness is provided by optional screw down and solder nail fixes, suitable for environments requiring robust mechanical retention. This product is ideal for applications in electronic components manufacturing, PCB assembly, and other industrial uses requiring reliable board-to-board connections.
The socket supports a 10-contact, 2-row arrangement with 1.27 mm pitch. Rated for 3.2 A current and 250 V voltage maximum. Features liquid crystal polymer housing material for durability. Contact plating with gold or tin over nickel ensures electrical reliability.
Works efficiently in the temperature range from -55°C to 125°C. Tiger Eye™ contact system delivers high-reliability performance. Through-hole and surface mount termination types are available. Screw down and solder nail options for more rugged applications.
Choose Samtec SFM-105-02-S-D-LC PCB Sockets for enhanced electronic reliability and durable mounting in industrial and laboratory PCB assemblies. Browse the Electronics Components category on EnvMart for more options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The socket supports a maximum current of 3.2 A at a voltage rating of 250 V.
It features a housing made from liquid crystal polymer and bronze contacts plated with gold or tin over nickel.
The stacking height of this socket is 12 mm.
This model operates efficiently across a temperature range from -55°C to 125°C.
Termination options include solder with both through-hole and surface mount capabilities.
It includes screw down and solder nail options for enhanced ruggedness in demanding environments.
This socket has 10 contacts arranged in a 2-row configuration.
It utilizes the Tiger Eye™ contact system for enhanced reliability and performance.
This socket is designed with a straight orientation for easy integration.
It is ideal for board-to-board and cable connections in electronic components manufacturing and PCB assembly.
The country of origin for this socket is India.
The pitch size of this model is 1.27 mm.
