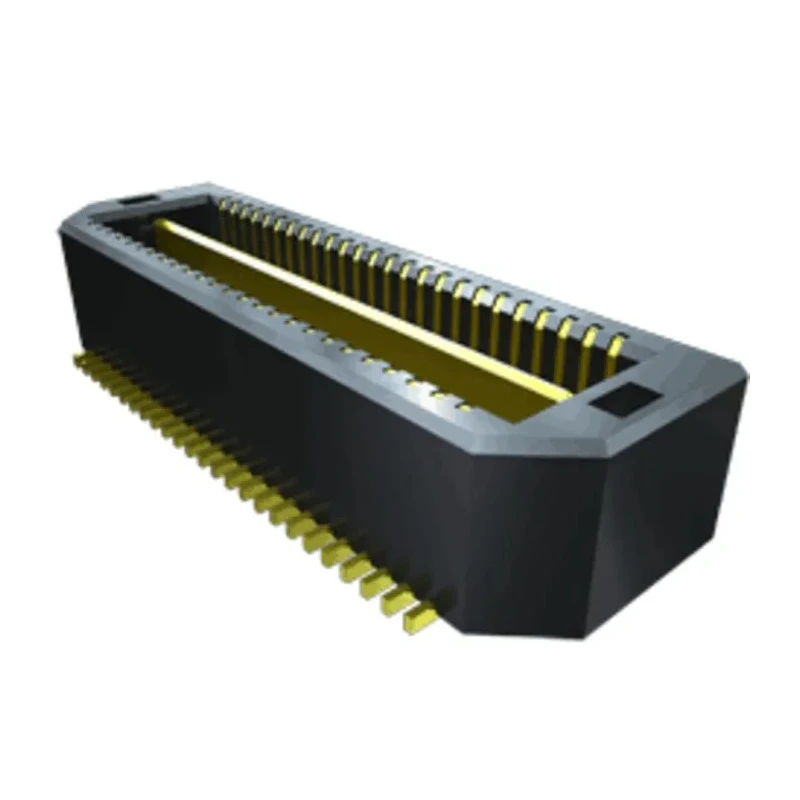

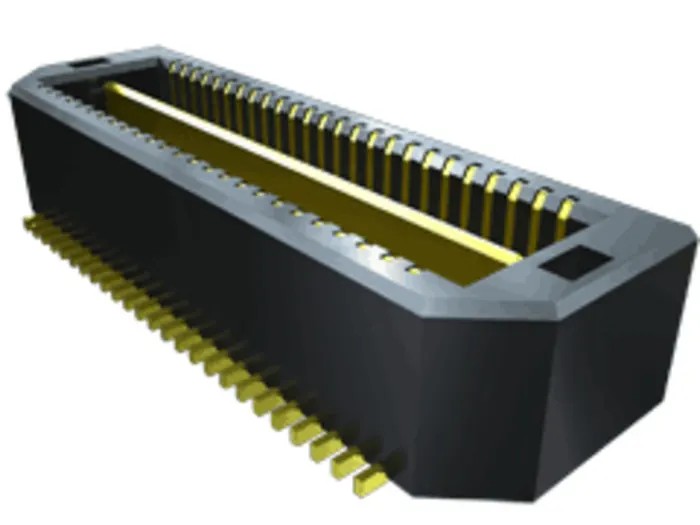

Samtec QTS Series Right Angle Surface PCB Header, 150 Contact(s), 0.64 mm Pitch, 2 Row, Shrouded QTS-075-01-L-D-A-K

Samtec QTS-075-01-L-D-A-K is a high-quality right angle surface mount PCB header featuring 150 contacts arranged in 2 rows with a 0.64 mm pitch. This shrouded male connector is constructed with phosphor bronze contacts plated in gold to ensure superior electrical conductivity and durability. Designed for board-to-board connector systems, it offers a current rating of 15.7A and a voltage rating of 275V, meeting the demands of industrial, electronic, and communications equipment.

This header supports operation in harsh thermal conditions ranging from a minimum of -55°C to a maximum of 125°C, maintaining reliable performance in extreme environments. Its surface mount termination type and right angle configuration enable compact PCB designs and robust mechanical stability. The product is dual sourced by TE Connectivity under the MICTOR SB series, assuring availability and industry acceptance.

Applications include electronic assemblies requiring secure board connections with high pin counts and signal integrity up to 4.5 GHz and 9 Gbps data rates. The shrouded design adds mechanical protection and improved alignment for mating connectors, reducing risk of damage or misalignment during assembly.

This PCB header supports a current capacity of 15.7A for reliable high-power connections. It is shrouded to ensure protection and precise mating alignment. Manufactured with phosphor bronze contact material plated with gold to provide excellent conductivity and corrosion resistance.

The header operates within a temperature range of -55°C to 125°C to suit various harsh environments. It supports up to 275V voltage rating for diverse electronic circuit applications. Termination is by solder, making it suitable for reliable surface mount assembly.

Right angle orientation facilitates compact PCB layouts and board-to-board stacking. The design includes dual sourcing by TE Connectivity as the MICTOR SB. Compatible with use cases up to 4.5 GHz / 9 Gbps data transmission rates, ideal for high-speed electronic designs.

This product is ideal for industrial electronics, telecommunications hardware, computing equipment, and other applications requiring reliable multi-contact board interconnections with high signal integrity and thermal endurance. Explore more PCB Headers and connectors at EnvMart for advanced electronics manufacturing needs.
