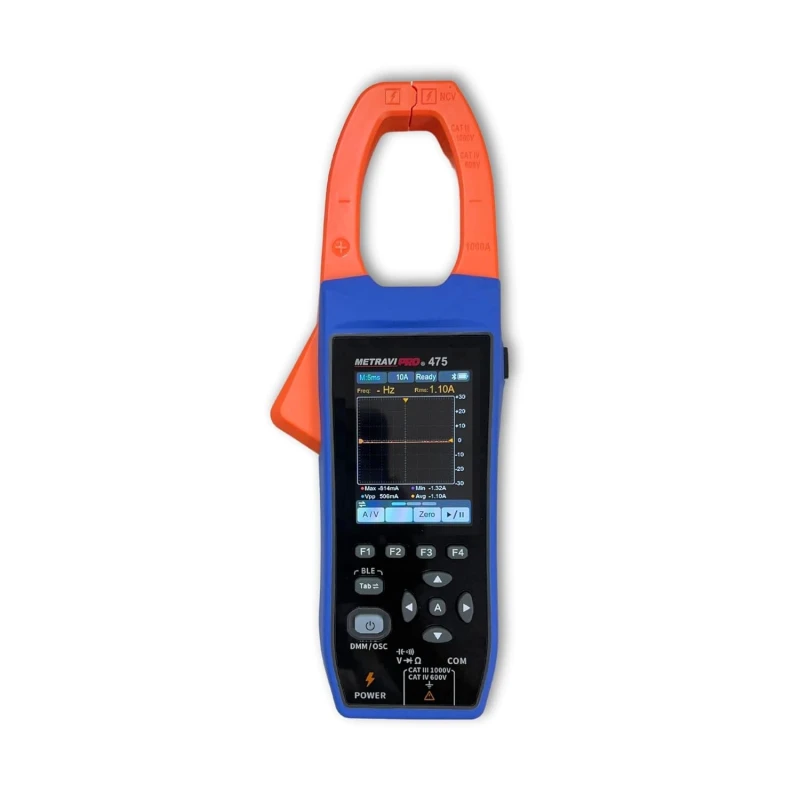

Metravi TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger PRO 475
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PRO 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger / Test Leads / User Manual / USB C-type Cable |
| Resolution | 0.0001V 0.01mV 0.10% |
| Accuracy | ±(0.6%+10dgt) ±(1.2%+3dgt)/±(2.5%+10dgt) |
| Display | 2.8-inch color IPS LCD with dual theme |
| Frequency range | 40Hz–1000Hz |
| Brand | Metravi |
| Power | 3.7V rechargeable lithium battery USB type-C charging |
| Dimensions | 248mm×94.5mm×37.8mm |
| Function | VRMS |
| Model | 475 |
| SENSITIVITY | 30mV/div–500V/div |
| Weight | Approx.0.35kg |
| Safety | Input protection ABS rubber coating housing |
| Display Mode | DMM or OSC |
| Input Impedance | ≥10MΩ |
| Counts | 2000/20000(3½&4½ digits depending on ranges) |
| Data logging | Yes(data can be recorded recalled and analysed) |
| Channel | 1 |
| Jaw opening | 38mm |
| Scan Speed | 2.5µs/div–10s/div |
| Compliance | CAT III 1000V/CAT IV 600V |
| Displacement Range | ±3 grid |
| Measurement Values | Rms/Freq/Max/Min/Pk-Pk/Avg |
| Trigger Mode | Auto |
| Maximum Input Voltage | 1000V peak |
| Trigger Type | Rise/Fall |
| Open Circuit Voltage | 3.2V |
| Inrush Mode | AC mode only |
| True Effective Value | True RMS |
| Ac Voltage(Mv) Measurement Range | 200.00mV |
| Duty Cycle(%) | Range |
| Diode Measurement Range | 3.0000V |
| Oscilloscope Analogue Bandwidth | Voltage 1MHz/Current 1kHz |
| Sample Mode | Real-time sample |
| Real-Time Sampling Rate | 5.0MSa/s |
| Maximum Sample Current | 1000A peak |
| Time Base Accuracy | ±(0.01%+0.1div) |
| Sensitivity Accuracy | ±(5%+0.2div) |
Key Features
- Multi-functional Usage: A 4-in-1 innovative experience which combines TRMS Clamp Meter, Multimeter, Oscilloscope, and Data Recorder functions to suit various measurement needs.
- High Accuracy: Ensures precise reading with high accuracy across voltage, current, resistance, and frequency measurements.
- Easy-to-Read Display: Features a large, clear screen for easy viewing of measurement results and waveforms.
- Narrow-edge Jaw Opening: A 38mm elongated jaw opening design makes it suitable for confined spaces as well as large wire dimensions.
- Robust Input Protection: Equipped with comprehensive input protection to protect the device and the user.
- Bluetooth& Smartphone App: Helps automatically record measurement values and display them in a graph to visualise trends.
Product Description
The Metravi PRO 475 is a sophisticated TRMS AC/DC Clamp Meter equipped with a built-in oscilloscope and datalogging capabilities, making it an all-in-one diagnostic instrument for electrical engineers and technicians. It accurately measures AC/DC voltage, current, resistance, capacitance, frequency, and temperature. The oscilloscope function displays waveform signals in real-time, helping users identify anomalies in electrical systems. The datalogger records measurements over time for in-depth analysis. With a high-resolution color screen, intuitive interface, and non-contact voltage detection, this clamp meter enhances safety and functionality. Built to meet industrial demands, the PRO 475 is ideal for power quality monitoring, equipment troubleshooting, and preventative maintenance.
Available on EnvMart, these Clamp Meters are engineered for safe and accurate current measurements without breaking the circuit—perfect for electricians and field technicians. Metravi Clamp Meters are trusted for their robust build, precision, and ease of use, making them a top choice for both industrial and residential diagnostics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AC voltage measurement range for this model is 200.00mV to 1000V peak.
The accuracy for current measurements is ±(1.2%+3dgt)/±(2.5%+10dgt).
The oscilloscope analogue bandwidth for voltage is 1MHz and for current is 1kHz.
This clamp meter can measure AC/DC voltage, current, resistance, capacitance, frequency, and temperature.
The resolution for voltage measurements is 0.0001V for AC and 0.01mV for DC.
The maximum input voltage this model can handle is 1000V peak.
The data logging feature allows users to record, recall, and analyze measurements over time.
The dimensions of this unit are 248mm x 94.5mm x 37.8mm, and it weighs approximately 0.35kg.
This model complies with CAT III 1000V and CAT IV 600V safety ratings.
It uses a 3.7V rechargeable lithium battery with USB type-C charging.
The scan speed for the oscilloscope feature ranges from 2.5µs/div to 10s/div.
The jaw opening size is 38mm, making it suitable for both confined spaces and larger wire dimensions.
