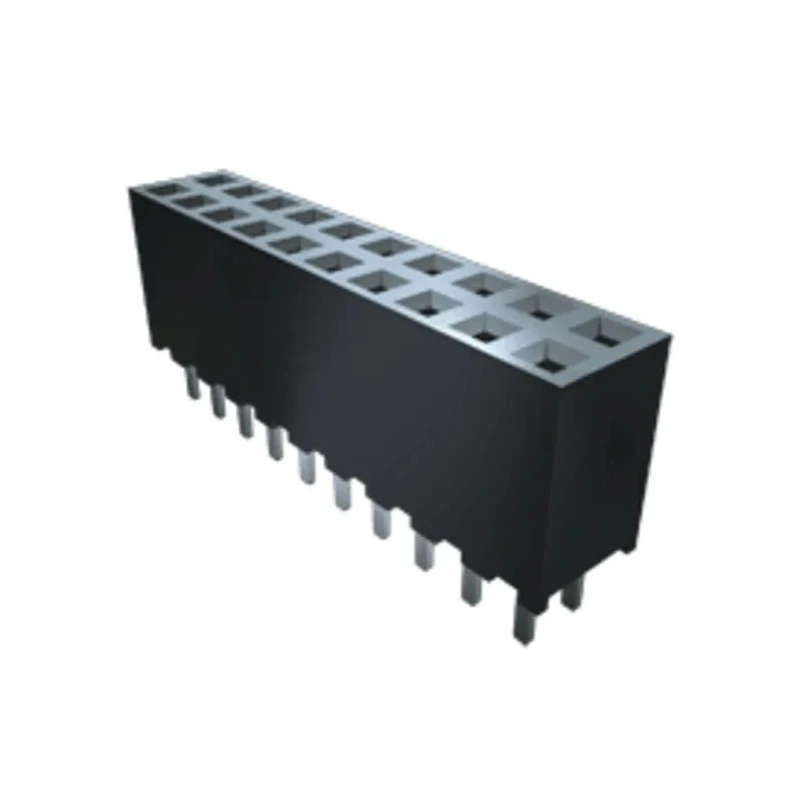

Samtec SQW Series Straight Surface PCB Socket, 34-Contact, 2 Row, 2 mm Pitch Solder SQW-117-01-L-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec SQW Series Straight Surface PCB Socket, 34-Contact, 2 Row, 2 mm Pitch Solder SQW-117-01-L-D

Name: Samtec SQW Series Straight Surface PCB Socket, 34-Contact, 2 Row, 2 mm Pitch Solder SQW-117-01-L-D
Brand: Samtec
SKU: 147775
Price: 5.46 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	281V
Brand	Samtec
Orientation	Straight
Current	3.8A
Model	SQW-117-01-L-D
Mount Type	Surface
Special Features	FleXYZ™ design allows design flexibility in all three axes
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	SQW
Termination	Through-hole, surface mount
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	34
Contact Gender	Female
Connector System	Board-to-Board
Contact System	Tiger Buy™

Key Features

This PCB socket supports board-to-board connection applications.
Constructed with liquid crystal polymer housing for high durability.
Features gold-plated bronze contacts to ensure excellent conductivity and corrosion resistance.
Operates at voltages up to 281 V and current rating of 3.8 A.
Designed with FleXYZ™ technology enabling flexibility in all three axes for versatile applications.
Suitable for operating temperature range from -55°C to 125°C.
Contact system utilizes Tiger Buy™ technology for reliable connections.
Mount type is surface mount with straight orientation optimizing PCB assembly.

Product Description

Samtec SQW-117-01-L-D is a high-quality SQW Series Straight Surface PCB Socket designed for robust board-to-board connections. This product features 34 female contacts arranged in 2 rows with a precise 2 mm pitch, making it ideal for space-efficient PCB designs requiring reliable interfacing.

The socket housing is fabricated from liquid crystal polymer, providing enhanced mechanical strength and stability under demanding thermal conditions. Contacts are made of bronze with gold plating to ensure long-term electrical performance and resistance to environmental degradation.

This socket supports current up to 3.8 A and voltage operation up to 281 V, suitable for moderate power electronic applications. Its FleXYZ™ design offers adaptable flexibility in all three axes, enabling easy alignment and integration in complex assemblies.

Operating temperature ranges from -55°C to 125°C, accommodating various industrial environments. Tiger Buy™ contact system technology ensures secure, consistent electrical contact throughout product life.

This PCB socket facilitates board-to-board connection system implementations. Gold-plated bronze contacts provide reliable conductivity and corrosion resistance. Surface mounting with straight orientation suits automated PCB assembly processes.

FleXYZ™ design enhances mechanical flexibility during installation. Wide operating temperature range supports diverse industrial applications.

Applications include industrial electronics manufacturing, prototyping, automation controls, instrumentation, and other sectors requiring reliable connector solutions. The design supports through-hole and surface mount termination, offering versatility in PCB layout decisions.

For technical documentation, 3D models, and design resources, this product is compatible with DesignSpark software for efficient design collaboration. Browse the Electronics Components category on EnvMart for additional PCB Sockets and related connectors from leading brands.
