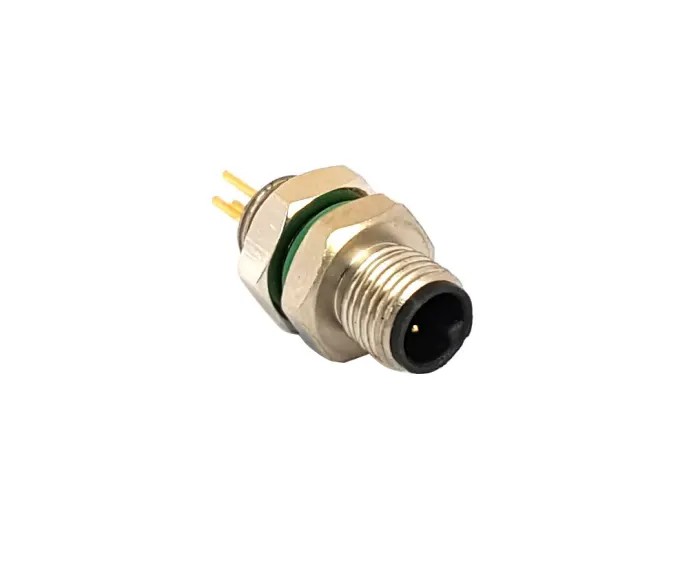

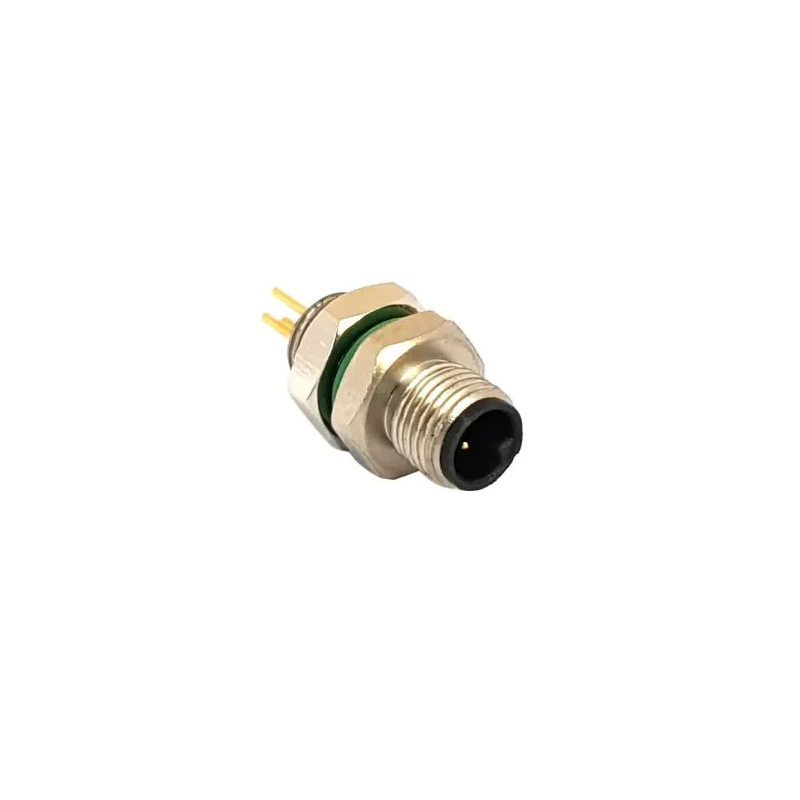

Bulgin Circular Connector 4 Contacts Front Mount M5 Plug Male IP67 Buccaneer M5 Series PXMBNI05FPM04APC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 60V |
| Brand | Bulgin |
| Orientation | Straight |
| Current | 1A |
| Model | PXMBNI05FPM04APC |
| IP Rating | IP67 |
| Mount Type | Front |
| Housing Material | Nickel |
| Contact Material | Brass |
| Series | Buccaneer M5 |
| Termination Type | PCB |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shell Size | 5 |
| Mating Type | Threaded |
| Connector Size | M5 |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- Compact M5 sensor connector with 4 gold-plated contacts for reliable signal transmission.
- Features front mounting and threaded mating type for secure panel installation.
- Rated IP67 for high environmental protection against dust and water.
- Uses nickel housing material suitable for rugged industrial applications.
- Operates at 60V and 1A current with brass contacts and gold plating.
- Designed for temperatures ranging from -25°C to 80°C for versatile conditions.
- Suitable for automotive, process control, commercial electronics and instrumentation.
- Provides secure screw locking mechanism and straight orientation.
Product Description
Bulgin PXMBNI05FPM04APC Circular Connector is a highly compact and robust 4-contact M5 plug connector designed for demanding industrial environments. It features a front mounting type with male contacts and a secure threaded screw coupling mechanism to ensure reliable connections.
Constructed with a nickel housing and gold-plated brass contacts, this connector supports operating voltages up to 60V and currents of 1A, making it ideal for sensitive electronic sensor and instrumentation applications. The connector is rated IP67, providing a high degree of protection against dust and water ingress, suitable for harsh environments.
Operating temperature ranges from -25°C to 80°C allow deployment in varied settings, including automotive, industrial process control, and commercial electronics. The PCB termination type supports integration within printed circuit boards, enhancing system compactness and reliability.
Its Buccaneer M5 series design supports straight orientation with A coding rate, ensuring compatibility with industry standard mating connectors. The screw locking mechanism secures the connector in place, preventing accidental disconnections during operation.
Compact M5 sensor connector with four gold-plated contacts ensuring reliable electrical performance. Front mount, threaded mating type supports secure installations in panel and PCB applications. IP67 rating offers excellent environmental protection against dust and water ingress.
Nickel housing and brass contact material ensure durability under industrial conditions. Supports 60V and 1A operation within -25°C to 80°C temperature range. Suitable for automotive, process control, commercial electronics and instrumentation use.
Straight orientation with screw coupling provides stable and secure connectivity. PCB termination type for easy integration into electronic assemblies.
This Bulgin circular connector is an excellent industrial component for applications requiring compact size, durability, and environmental resistance. It ensures dependable electrical connectivity in complex and harsh technical environments.
Explore more Industrial Circular Connectors on EnvMart to find components suited to diverse electronic and power connection requirements supporting industrial and commercial infrastructure.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 60V and a current of 1A.
This model has an IP67 rating, providing high protection against dust and water ingress.
The housing is made of nickel, and it features brass contacts with gold plating.
It can operate in temperatures ranging from -25°C to 80°C.
It features 4 contacts.
It supports front mounting with a threaded mating type for secure installation.
This connector uses PCB termination, allowing for integration within printed circuit boards.
It belongs to the Buccaneer M5 series.
The connector has a straight orientation with A coding.
It is suitable for automotive, process control, commercial electronics, and instrumentation applications.
The connector size is M5 and the shell size is also 5.
It features a secure screw locking mechanism to prevent accidental disconnections during operation.
