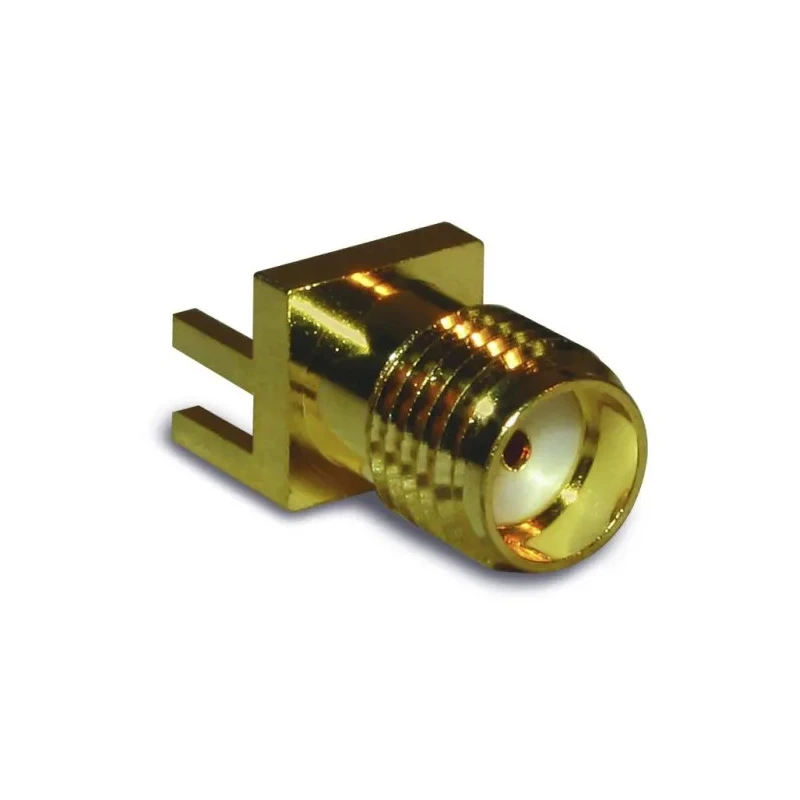

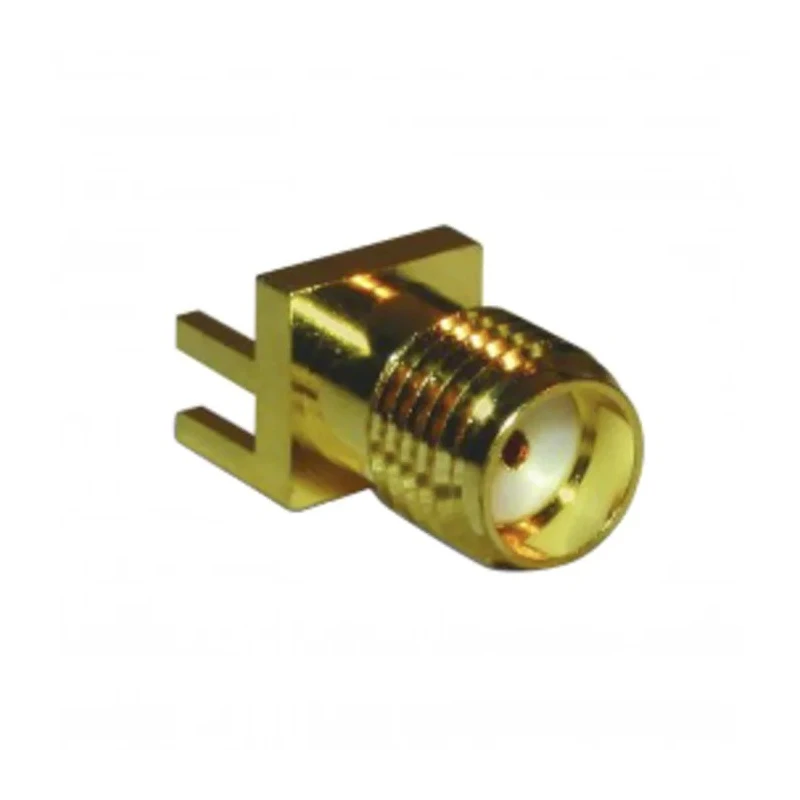

Amphenol RF SMA Series Coaxial Connector Edge Female SMA, 50 Ω, Straight Body Solder 132322
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | Amphenol RF |
| Orientation | Straight |
| Model | 132322 |
| Mount Type | Edge |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
Key Features
- This coaxial connector operates with frequencies up to 18 GHz.
- It features a gold-plated body and contacts for corrosion resistance and signal integrity.
- The connector is constructed from beryllium copper contact material, offering high durability.
- Designed for solder termination with normal polarity and a female contact gender.
- Operating temperature ranges from -65°C to 165°C, suitable for demanding environments.
- Standard size with no bulkhead and a compact straight body design.
- The connector is lightweight, vibration proof, and suitable for RF applications requiring broadband performance with low VSWR.
Product Description
Amphenol RF 132322 SMA Series Coaxial Connector is a precision-engineered RF coaxial connector designed for broadband performance ranging from DC to 18 GHz with a constant 50 Ω impedance. This edge-mount female SMA connector features a straight body with gold plating on both the body and contacts to ensure excellent corrosion resistance and optimal signal transmission.
The connector utilizes beryllium copper for its contacts, which delivers high mechanical strength and durability. Its solder termination type and normal polarity make it suitable for reliable PCB mounting applications.
It operates effectively across a wide temperature spectrum of -65°C to 165°C, thus meeting stringent requirements in industrial, telecommunications, aerospace, and military applications. The lightweight, compact, and vibration-resistant design supports mounting on PCBs where space and stability are critical.
Amphenol RF SMA connectors are known for low voltage standing wave ratio (VSWR), ensuring minimal signal reflection and loss, essential for high-frequency communications and testing equipment.
The standard size and edge mount type make it compatible with all standard flexible coaxial cables and industry-standard semi-rigid or conformable cables, enhancing its versatility across various RF systems.
This connector is ideal for use in telecommunications, instrumentation, laboratory equipment, and other electronic industries that demand precision RF connectors. Its gold plating and high-quality materials ensure reliable long-term performance in harsh environments.
Manufactured rigorously under established quality controls to meet consistent standards. Explore more Amphenol RF Coaxial Connectors and adapters for your RF and electronic component needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This SMA connector operates with frequencies up to 18 GHz, making it suitable for high-frequency applications.
It features a solder termination type, which is suitable for reliable PCB mounting applications.
The connector has a constant impedance of 50 Ω, which is standard for RF applications.
The connector is constructed with a beryllium copper contact material and features gold plating on both the body and contacts for corrosion resistance.
It operates effectively within a temperature range of -65°C to 165°C, suitable for demanding environments.
Yes, this model is designed for edge mounting, making it compatible with various PCB layouts.
The connector features a female contact gender, suitable for corresponding male connectors.
This model is ideal for use in telecommunications, instrumentation, laboratory equipment, and other electronic industries that require precision RF connectors.
It is classified as a standard size connector, ensuring compatibility with various RF systems.
The low voltage standing wave ratio (VSWR) ensures minimal signal reflection and loss, which is essential for high-frequency communications and testing equipment.
The country of origin for this connector is China.
This connector has a straight orientation, which is common for many RF applications.
