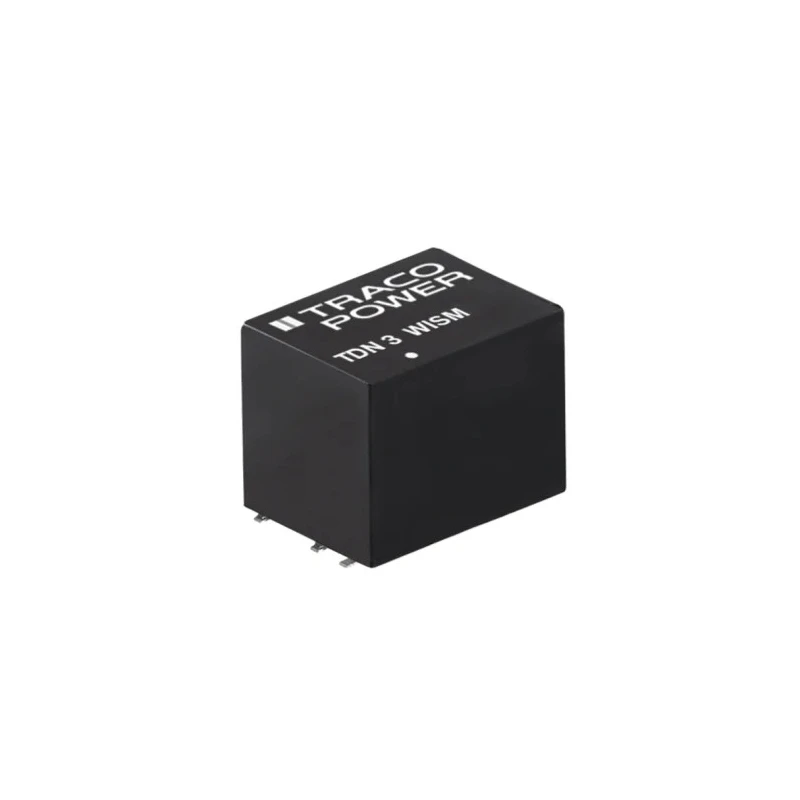

TRACOPOWER High Efficiency 3W DC/DC Converter Surface Mount 15V DC Output 100mA Input 9-36V TDN 3-2423WISM
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TDN 3WISM DC/DC Converter, 15V dc/ 100 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 13.2mm |
| Model | TDN 3-2423WISM |
| Depth | 9.9mm |
| Width | 9.1mm |
| Mount Type | Surface |
| Series | TDN 3WISM |
| Maximum Operating Temperature | 70°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 5630000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 1:6 |
| Output Voltage 2 | -15V dc |
| Input Ratio 1 | 6 |
Key Features
- Provides regulated 15V DC output with a current of 100mA.
- Operates with input voltage range from 9V to 36V DC.
- Efficient conversion with up to 82% efficiency.
- Compact SMD design measuring 13.2 x 9.1 x 9.9 mm for space-limited applications.
- Supports dual outputs with 1.6kV DC isolation for enhanced safety.
- Wide operating temperature range from -40°C to +70°C for harsh environments.
- Features short circuit protection and remote On/Off control.
- Reliable operation with MTBF of 5,630,000 hours.
Product Description
TRACOPOWER TDN 3-2423WISM is a high-efficiency DC/DC Converter providing fully regulated dual outputs with 3 watts maximum power in a compact surface mount package measuring 13.2 mm length, 9.1 mm width, and 9.9 mm depth.
This device delivers a primary output voltage of 15V DC at 100mA current, with input voltage flexibility ranging from 9V to 36V DC, making it suitable for a wide range of industrial and electronic applications.
Designed with high isolation voltage of 1.6kV DC between input and output, it ensures operational safety and protects sensitive electronics. The converter operates reliably across a wide temperature range from -40°C to +70°C, supporting usage in harsh environmental conditions without derating.
The converter features short circuit protection and remote On/Off functionality, enhancing system safety and control. Its ultra-compact surface mount design allows integration in devices with limited space, making it ideal for industrial controls, telecommunications, instrumentation, and power supply modules.
With an efficiency rating of 82% and a mean time between failures (MTBF) of 5,630,000 hours, this model provides robust performance and durability. The package includes a 7-pin layout optimized for PCB mounting.
Provides regulated 15V DC output at 100mA. Operates with input voltages from 9V to 36V DC. Compact surface mount package 13.2 x 9.1 x 9.9 mm. 1.6kV DC input-to-output isolation voltage. Wide temperature range -40°C to +70°C.
Short circuit protection and remote On/Off. 82% conversion efficiency. High reliability with MTBF of 5,630,000 hours. 7-pin surface mount package. 3-year product warranty.
This DC/DC converter is ideal for industrial, laboratory, telecommunications, and embedded system applications where reliable power conversion from a DC source is required. It integrates well into compact electronics designs and PCB layouts.
Explore the Electronics & Electricals category for more DC/DC Converters and power supply components to meet your specific project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 36V DC.
This unit provides a maximum output power of 3 watts.
It delivers a primary output voltage of 15V DC at a current of 100mA.
This model has a compact surface mount design measuring 13.2 mm in length, 9.1 mm in width, and 9.9 mm in depth.
The efficiency rating of this converter is up to 82%.
It features a high isolation voltage of 1.6kV DC between input and output.
The operating temperature range is from -40°C to +70°C.
This unit provides two outputs: 15V DC and -15V DC.
It supports surface mount installation, making it suitable for compact applications.
It includes short circuit protection and remote On/Off control for enhanced safety.
The MTBF for this converter is 5,630,000 hours, indicating high reliability.
This model is suitable for industrial controls, telecommunications, instrumentation, and embedded systems.
