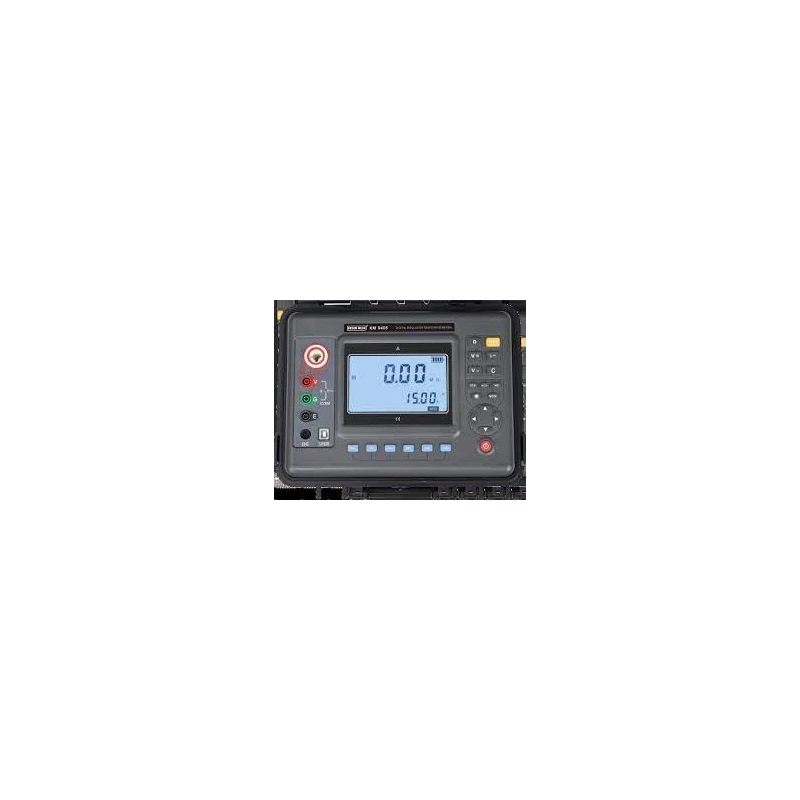

Kusam Meco 5 Kv Digital Insulation Resistance KM5405
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 5405 IN 5 KV DIGITAL INSULATION RESISTANCE / High Voltage Bar / High Voltage Test Line / USB Communication LineUSB Charger / Software CD / Instruction Manuals / Instruments Box |
| DC Voltage Range | 0.1~1000V Accuracy ±1.5%Rdg±3dgt Resolution 0.1V |
| AC Voltage Range | 0.1~750V Resolution 0.1V |
| Power Consumption | Standby 30mA / Backlight 42mA / Measure 200mA |
| Brand | Kusam Meco |
| Power | 12V Rechargeable Battery |
| Function | Insulation Resistance Test / Voltage Test / Current Test / Capacitance Test |
| Model | KM5405 |
| Weight | 2720g (Including Battery) |
| Backlight | Controllable Gray Screen Backlight |
| Display Mode | 4-Bit Large LCD Display Gray Screen |
| Insulation resistance | ≥250MΩ |
| Data Storage | 500 groups |
| USB interface | Yes (Data Upload / Save / Print) |
| Alarm Function | Yes |
| Storage Temp & Humidity | -15°C~+55°C ≤90%RH |
| Pressure Resistance | AC3kV 50Hz 1min |
| Auto Shutdown | After 15 Minutes |
| Rated Voltage | 100V / 250V / 500V / 1000V / 2500V / 5000V |
| Insulation Resistance Range | 0.01MΩ~10TΩ Accuracy ±3%Rdg±5dgt Resolution 0.01MΩ |
| Battery Voltage | Low Battery Symbol Display |
| Basic Condition | 23°C±5°C Below 75%RH |
| Step Voltage | ±5V ±50V Per Range |
| DC Current Measurement | 0.01nA~6mA Accuracy ±5.0%Rdg±5dgt Resolution 0.01nA |
| Capacitance Test | 10nF~50mF Accuracy ±10%Rdg±5dgt Resolution 10nF |
| Absorption Ratio & Polarization Index Measurement | Yes |
| Ramp Test Function | Yes |
| Instrument Size | 240L×188W×85H mm |
| Communication Line | USB 1pc |
| Test Line | Red / Black / Green 1.5m Each |
| Overflow Display | “OL” Symbol |
| Working Temp & Humidity | -10°C~+40°C ≤85%RH |
| Safety Regulation | IEC61010-1 / IEC1010-2-31 / IEC61557-1/5 / IEC60529 (IP54) |
Key Features
- Rated voltages: 100 V–5 kV for insulation resistance measurement
- Measures up to 10 TΩ with 0.01 MΩ resolution
- ±3 % rdg ± 5 dgt accuracy for precision testing
- Output short-circuit current ≥ 6 mA for stable readings
- Wide resistance limit range from 0.01 MΩ to 10 TΩ
Product Description
Kusam Meco KM5405 Insulation Resistance Tester is a precision 5kV digital instrument designed for measuring insulation resistance up to 1TΩ. It provides accurate readings for motors, transformers, and cables. The backlit display ensures clear visibility, while built-in PI and DAR functions help assess insulation quality over time. Compact and rugged, it includes auto discharge and safety interlock features for operator protection. Ideal for electrical engineers, technicians, and industrial maintenance professionals.
Available on EnvMart, these Insulation Resistance Testers ensure high-voltage accuracy up to 5 kV. Kusam Meco Instruments are reliable tools for industrial insulation measurement.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM5405 can measure insulation resistance up to 10 TΩ with a resolution of 0.01 MΩ.
The rated voltage range for the Kusam Meco KM5405 is 100V, 250V, 500V, 1000V, 2500V, and 5000V.
The insulation resistance measurements have an accuracy of ±3% reading ±5 digits.
The Kusam Meco KM5405 operates on a 12V rechargeable battery.
The dimensions of the Kusam Meco KM5405 are 240 mm in length, 188 mm in width, and 85 mm in height.
The Kusam Meco KM5405 includes features such as built-in PI and DAR functions for assessing insulation quality over time, and an auto discharge function for safety.
The weight of the Kusam Meco KM5405 is 2720 grams, including the battery.
Yes, the Kusam Meco KM5405 can store up to 500 groups of data.
The Kusam Meco KM5405 complies with IEC61010-1, IEC1010-2-31, IEC61557-1/5, and IEC60529 (IP54) safety regulations.
The operating temperature range for the Kusam Meco KM5405 is -10°C to +40°C with a humidity level of ≤85% RH.
The Kusam Meco KM5405 features a 4-bit large LCD display with controllable gray screen backlight for visibility.
The package contents of the Kusam Meco KM5405 include the insulation resistance tester, high voltage bar, high voltage test line, USB communication line, USB charger, software CD, instruction manuals, and an instrument box.
