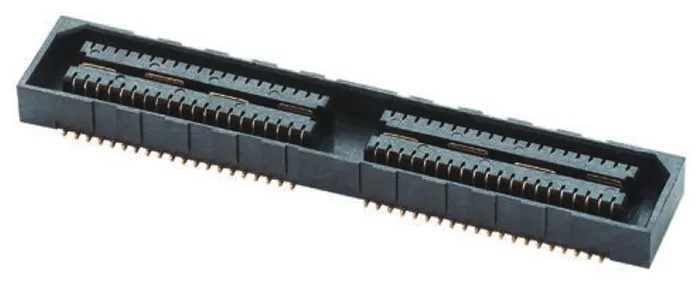

Samtec QSE Series Straight Surface PCB Socket 120-Contact 2 Row 0.8 mm Pitch Solder QSE-060-01-L-D-A

Free Delivery in India | Lowest Global Shipping Charges

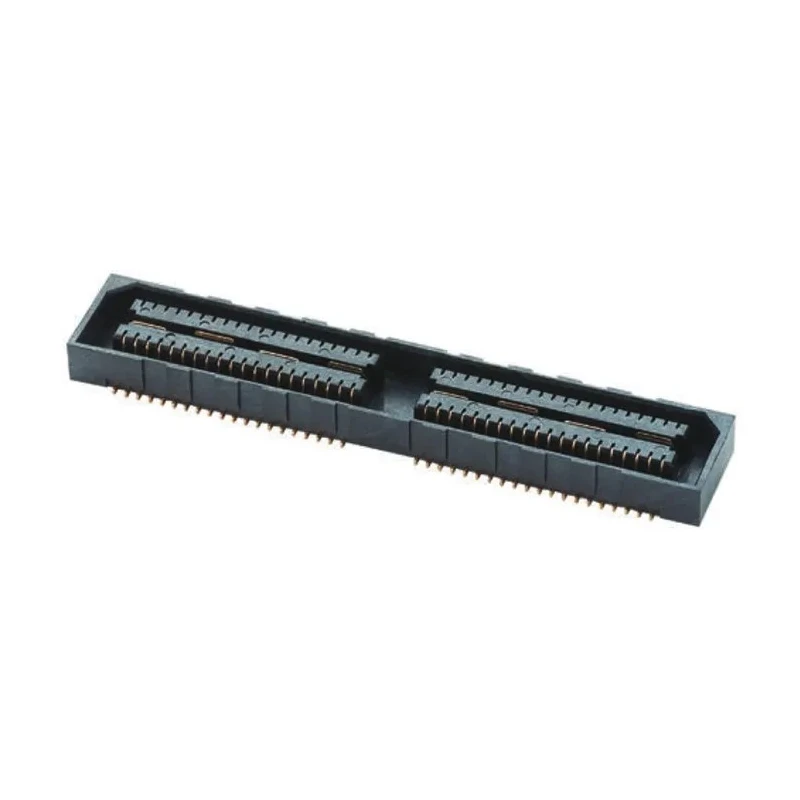

Samtec QSE Series Straight Surface PCB Socket 120-Contact 2 Row 0.8 mm Pitch Solder QSE-060-01-L-D-A

Name: Samtec QSE Series Straight Surface PCB Socket 120-Contact 2 Row 0.8 mm Pitch Solder QSE-060-01-L-D-A
Brand: Samtec
SKU: 145951
Price: 8.69 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	Costa Rica
Voltage	225V
Brand	Samtec
Orientation	Straight
Current	12A
Model	QSE-060-01-L-D-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	QSE
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	120
Connector System	Board-to-Board
Stacking Height	5mm
Row Pitch	5.73mm

Key Features

The socket supports a maximum current of 12A for reliable performance.
Constructed with liquid crystal polymer housing for durability and strength.
Gold plated bronze contacts ensure superior conductivity and corrosion resistance.
Designed for board-to-board connector systems with a stacking height of 5 mm.
Operates reliably within -55°C to 125°C temperature range.
Mount type is surface mount with straight orientation for easy PCB integration.
Row pitch measures 5.73 mm suitable for compact and high-density PCB layouts.
The socket has a metal ground plate ensuring robust ground connections within critical applications.

Product Description

Samtec QSE-060-01-L-D-A is a high-speed QSE Series straight surface PCB socket designed for industrial and electronic component applications requiring reliable, high-density connector systems.

Featuring 120 contacts arranged in 2 rows with a precise 0.8 mm pitch solder termination, this PCB Socket is optimized for board-to-board interfacing in advanced electronics and telecommunications.

The housing is made from liquid crystal polymer, providing excellent mechanical performance and durability under rigors of manufacturing and field use. Contacts are bronze with gold plating, enhancing conductivity and preventing corrosion over long-term cycles.

The socket supports currents up to 12 amperes and voltage ratings up to 225 volts, making it suitable for a diverse range of industrial power and signal transfer applications.

It is engineered to operate across a wide temperature range from -55°C to 125°C, ideal for harsh environments such as manufacturing equipment, industrial controls, and embedded systems.

With a stacking height of 5 mm and a straight orientation mount type, integration on printed circuit boards is compact and sturdy. The 5.73 mm row pitch supports dense PCB layouts while maintaining reliable contact alignment with built-in alignment pins.

This product originates from Costa Rica and represents new condition electronics connector components. It is especially suited for industrial tools, electronic manufacturing, telecommunications, and laboratory equipment requiring stable and precise PCB connectivity.

The socket has a metal ground plate ensuring robust ground connections within critical applications. Designed for low profile mounting with a 3.25 mm board-to-board spacing facilitating compact device form factors. Applicable across industrial, laboratory, and manufacturing use cases involving high-density surface mount PCBs.

Explore the extensive range of Samtec connectors and sockets on EnvMart for professional and industrial-grade electronics solutions.
