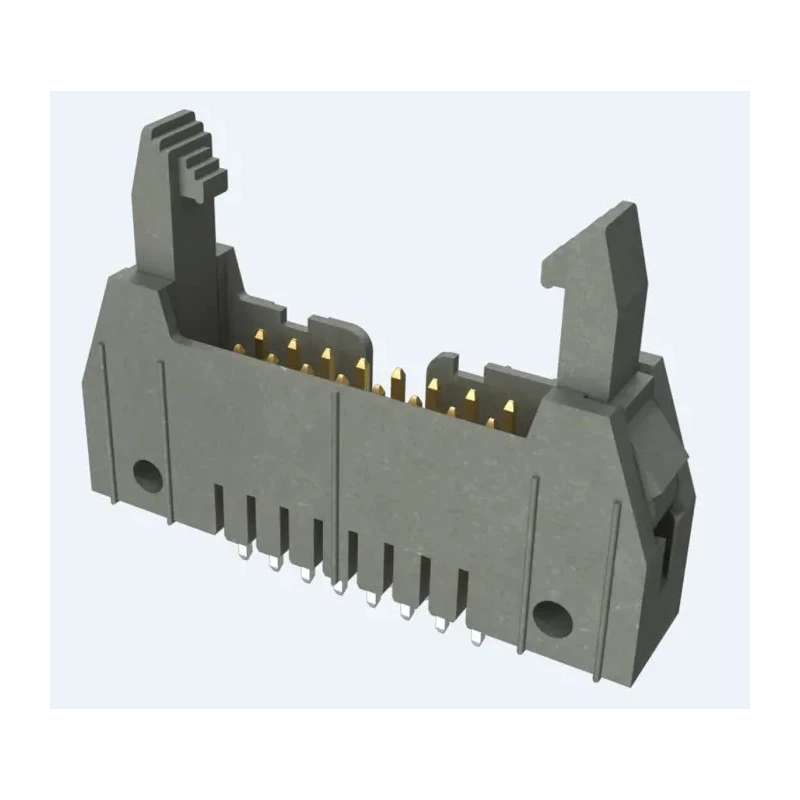

Amphenol ICC Quickie Series Straight Through Hole PCB Header, 16 Contact, 2.54 mm Pitch, 2 Row, Unshrouded 71918-216LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol ICC Quickie Series Straight Through Hole PCB Header, 16 Contact, 2.54 mm Pitch, 2 Row, Unshrouded 71918-216LF

Name: Amphenol ICC Quickie Series Straight Through Hole PCB Header, 16 Contact, 2.54 mm Pitch, 2 Row, Unshrouded 71918-216LF
Brand: Amphenol ICC
SKU: 145824
Price: 2.31 USD
Availability: InStock



Category PCB Headers Brand Amphenol ICC Condition New

Specifications

Country of Origin	India
Voltage	1.5kV
Brand	Amphenol ICC
Orientation	Straight
Current	3A
Model	71918-216LF
Mount Type	Through Hole
Housing Material	Glass Filled Thermoplastic Polyester
Contact Material	Phosphor Bronze
Series	Quickie
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	16
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board

Key Features

Designed for wire-to-board connection with through hole mount type.
Constructed using glass filled thermoplastic polyester housing for durability.
Features phosphor bronze contacts plated with gold for reliable conductivity.
Supports a current rating of 3A and voltage rating of 1.5kV.
Suitable for industrial, instrumentation, medical, consumer, communications, and data market applications.
Operates reliably between -65°C and 105°C temperature range.
Unshrouded with straight orientation and male contact gender.
Duplex plated contacts guarantee performance up to 100 mating cycles.

Product Description

Amphenol ICC 71918-216LF Quickie Series Straight Through Hole PCB Header features 16 male contacts arranged in 2 rows with a 2.54 mm pitch. It is a unshrouded, wire-to-board connector designed for through-hole mounting, ideal for secure and reliable PCB connections.

The housing is made from glass filled thermoplastic polyester, offering high durability and resistance to high temperatures, making it compatible with wave solder processes.

The connectors utilize phosphor bronze contacts plated with gold, ensuring outstanding electrical performance and longevity. With a current rating of 3A and voltage rating of 1.5kV, these headers are reliable for various industrial and commercial electronics applications.

These Quickie series connectors have duplex plating that guarantees up to 100 mating cycles, providing durability for frequent connections and disconnections. The straight orientation and male contact gender design fits numerous electronic component interfaces.

Operating temperature spans from -65°C to 105°C, ensuring performance in wide environmental conditions. The unshrouded design facilitates easy access and integration where necessary.

Designed for wire-to-board connection with through hole mount type. Glass filled thermoplastic polyester housing ensures durability and heat resistance. Phosphor bronze contacts plated with gold for superior conductivity.

Rated for 3A current and 1.5kV voltage. Duplex plating guarantees up to 100 mating cycles performance. Wide operating temperature range from -65°C to 105°C. Unshrouded, straight orientation, male contact gender configuration.

Ideal for industrial, medical, consumer, and communication electronic markets.

This product is part of the Amphenol ICC Quickie series, known for high-density mounting and reliable secure connections made possible by side latches and polarization features preventing mismating.
