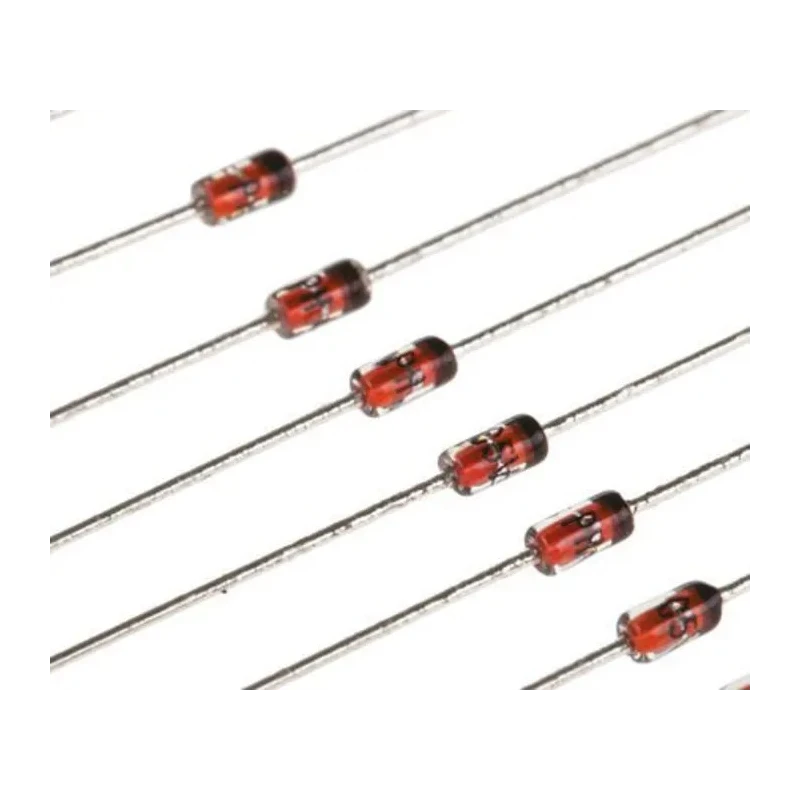

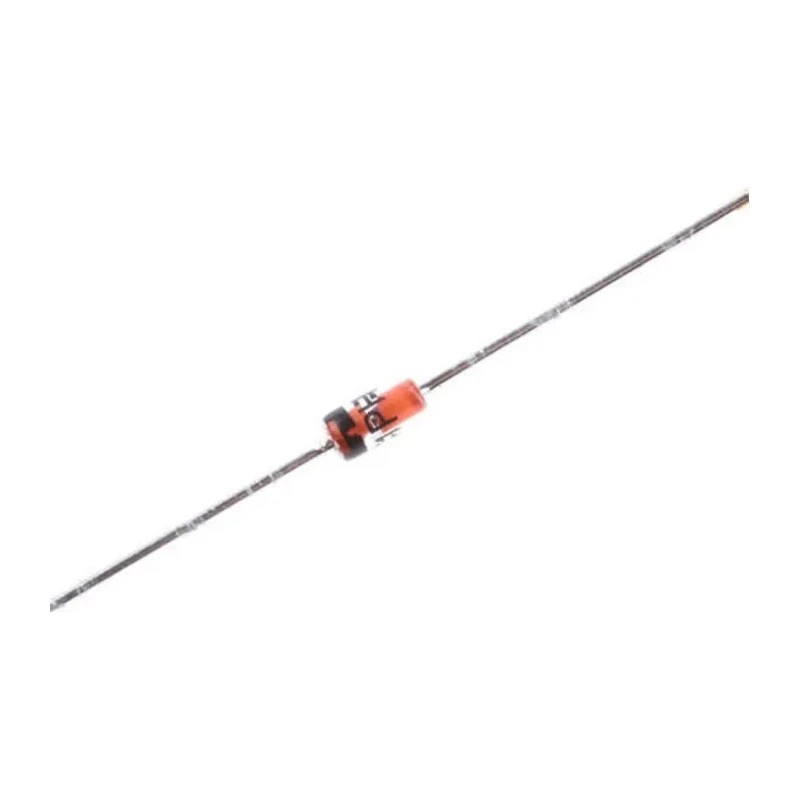

Nexperia Zener Diode Through Hole SOD-27 10 V 500 mW 2 % Tolerance 2-Pin BZX79-C10,133

Nexperia BZX79-C10,133 is a single Zener diode designed for voltage regulation applications. It provides a nominal Zener voltage of 10 V with a power dissipation capacity of 500 mW, packaged in a through hole SOD-27 form factor suitable for electrical and electronic circuits requiring stable voltage references.

This Zener diode features a voltage regulation capability with a tolerance of ±2%, ensuring effective clamping and voltage stabilization. Its maximum reverse leakage current is extremely low at 200 nA, contributing to efficient operation in sensitive power supply circuits.

The device is rated for a maximum operating temperature of 200°C and a minimum of -65°C, making it suitable for industrial, laboratory, and commercial electronic applications where temperature variations can be significant.

Physical dimensions of 4.25 mm length and 1.85 mm height allow straightforward through hole mounting on printed circuit boards. The diode includes a test current of 5 mA and a maximum Zener impedance of 150 Ω, which are critical parameters for circuit design and performance optimization.

Applications include use in voltage regulation, reference voltage circuits, protection in power supplies, and other semiconductor-based control systems within electronics manufacturing, telecommunications, and instrumentation.

Offers a nominal Zener voltage of 10 V with ±2% tolerance for voltage regulation. Power dissipation rating of 500 mW to handle moderate power loads safely. Single diode configuration with two pins designed for through hole mounting.

Maximum reverse leakage current of 200 nA ensuring low leakage in reverse bias conditions. Operating temperature range from -65°C to 200°C ensures reliability over wide conditions. Test current rating of 5 mA aligns with typical test standards for Zener Diodes.

Package type SOD-27 offers a compact and reliable form for mounting. Maximum Zener impedance of 150 Ω for stable voltage regulation performance. Typical voltage temperature coefficient of 6.4 mV/K for precise temperature response.

Length dimension of 4.25 mm and height 1.85 mm for easy PCB integration.

Choose Nexperia BZX79-C10,133 for reliable and precise voltage regulation in electronic and industrial applications. Explore more high-quality semiconductor components in the Electronics & Electricals category at EnvMart.
