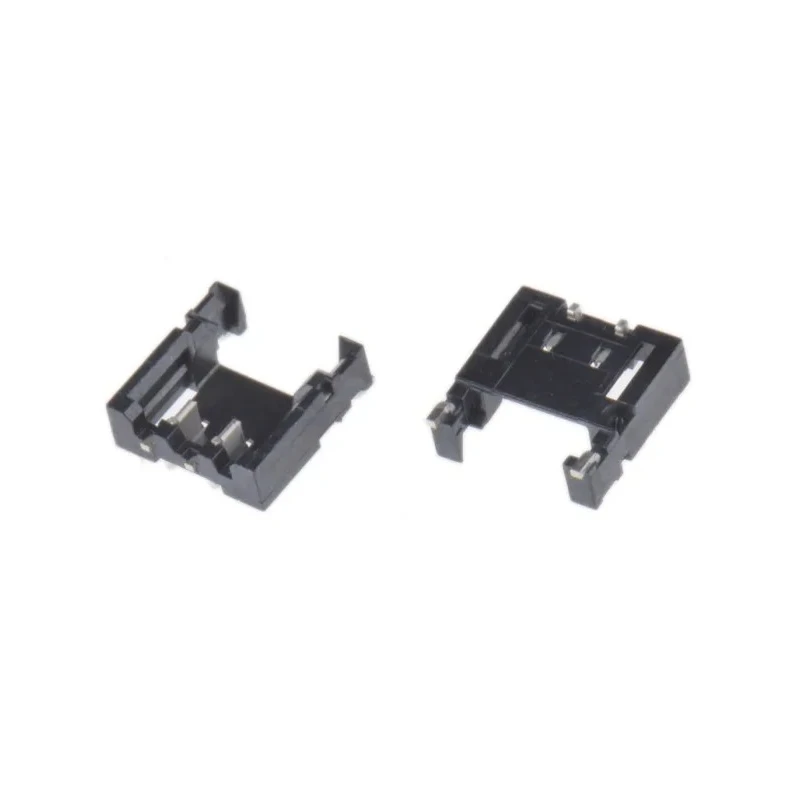

Hirose DF57 Series Straight Surface PCB Header, 2 Contacts, 1.2 mm Pitch, 1 Row, Shrouded, 50V Rated

Hirose DF57H-2P-1.2V(21) is a straight surface-mounted PCB header connector from the DF57 series, designed with a 1.2 mm pitch and shrouded housing. It features 2 male contacts arranged in a single row, engineered using liquid crystal polymer for housing and brass contacts plated with tin for optimal electrical performance.

This series incorporates a reinforced swing lock design that combines positive and friction locking mechanisms, resulting in enhanced cable retention and a secure tactile engagement. The connector’s low profile mating height of 1.4 mm ensures compact placement on PCBs.

The housing integral molding design prevents solder wicking and includes metal fittings to reinforce PCB retention, reducing the risk of housing damage during tough cable routing. The connector supports operating temperatures ranging from -35°C to 85°C with a voltage rating of 50 V and maximum current capability of 2 A, making it ideal for robust industrial and electronic applications.

These DF57 connectors are widely used in applications such as LED driver connections, digital still and video cameras, notebook computers, and tablet PCs due to their compact size and reliable electrical connection.

Reinforced swing lock design for secure cable retention. Double locking mechanism with positive and friction locks. Housing material is liquid crystal polymer preventing solder wicking. Brass contacts with tin plating for excellent conductivity.

Low profile height of 1.4 mm for compact PCB design. Surface mount type for easy PCB assembly. Rated for 2 A current and 50 V voltage. Operating temperature from -35°C to 85°C. 1 row with 2 contacts, shrouded and male contact gender.

This connector is categorized under electronics components suitable for use in industrial, manufacturing, electronic device assembly, and consumer electronics sectors. For further product options and variations, browse the PCB Headers category at EnvMart.
