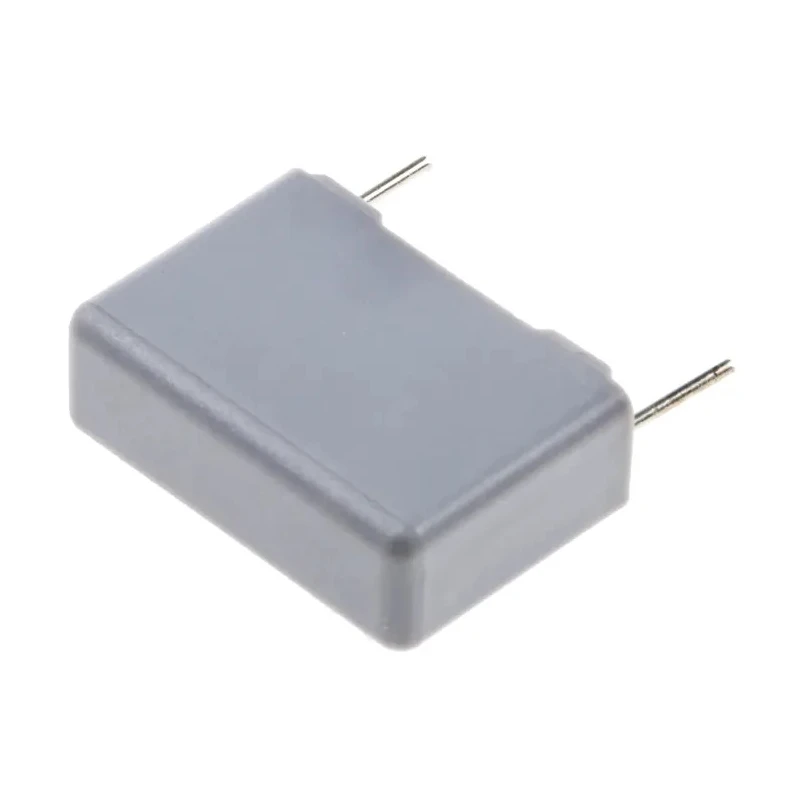

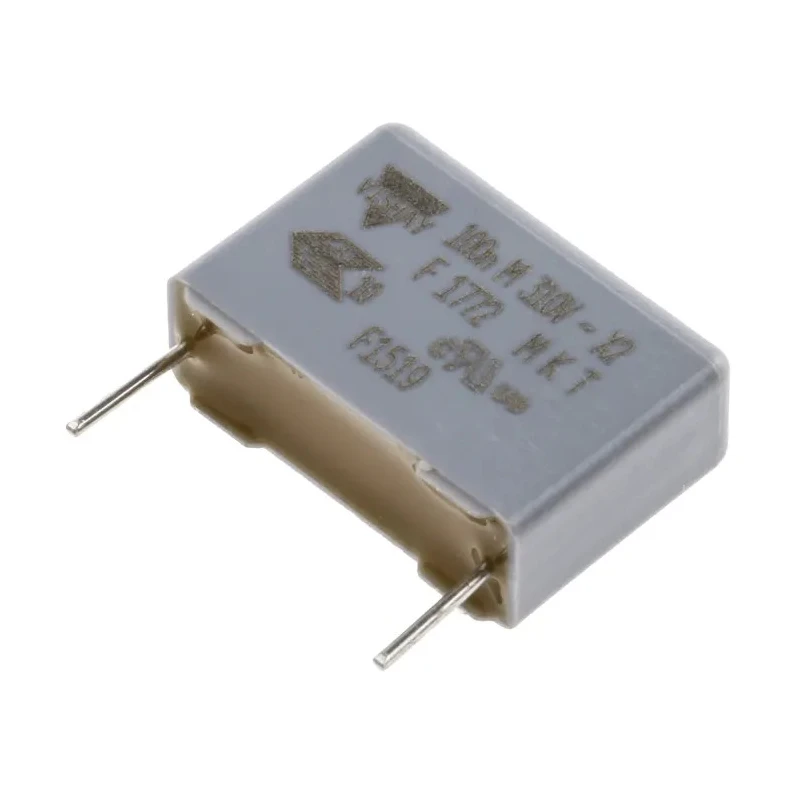

Vishay F1772 Film Capacitor 100 nF 310V AC 310 V DC Through Hole Mount F17724102200
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 12mm |
| Length | 17.9mm |
| Model | F17724102200 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | F1772 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 100nF |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 310V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
Key Features
- Capacitance of 100 nF for robust signal filtering and noise reduction.
- Rated AC voltage of 310V and DC voltage of 310V suitable for high-reliability circuits.
- Constructed with metallised film in a flame-retardant epoxy resin-sealed case for durability.
- Lead pitch of 15mm and lead diameter of 0.8mm for easy through-hole PCB mounting.
- Maximum operating temperature of 110°C ensuring performance in harsh environments.
- Suppressor class X2 compliant with automotive AEC-Q200 standards.
- Complies with IEC 60384-14 and multiple international standards for reliability and safety.
- Ideal for interference suppression installed between phases or phase to neutral connections.
Product Description
Vishay F17724102200 is a high-quality film capacitor offering a capacitance of 100 nF rated for 310V AC and 310 V DC, suitable for interference suppression in electronic circuits. This capacitor features a through-hole mount design that provides stability and ease of installation on printed circuit boards. Its metallised film construction ensures excellent durability and flame retardancy with an epoxy resin-sealed case.
Designed for harsh industrial and automotive environments, this capacitor complies with the AEC-Q200 automotive standard and has a maximum operating temperature of 110°C. The device meets recognized international standards, including IEC 60384-14 ed-4, UL 60384-14, CSA E384-14, and IEC 60065. Its X2 suppression class rating enables reliable operation between phases or phase-to-neutral applications to reduce electromagnetic interference.

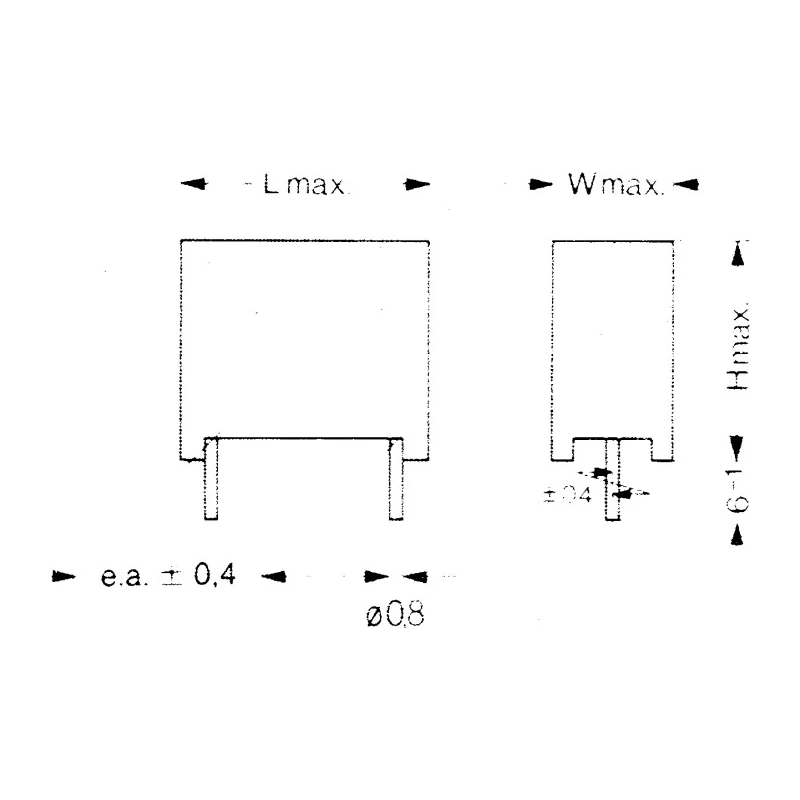

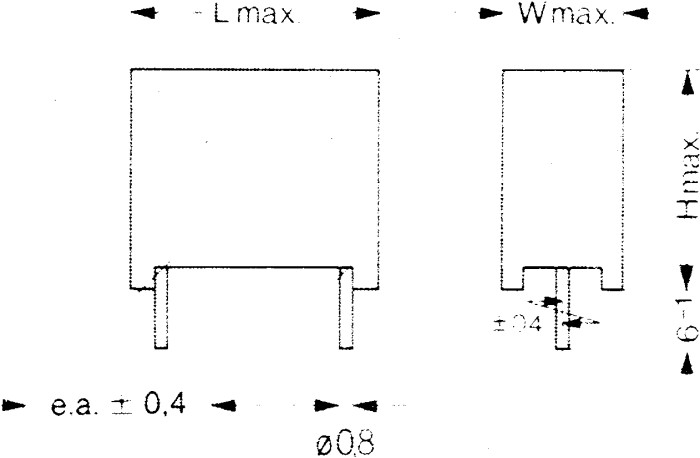

Physical attributes include a compact size with dimensions of 17.9mm in length, 12mm height, and 6mm width, and a lead pitch of 15mm complemented by 0.8mm lead diameter for secure through-hole PCB mounting. This makes it well-suited for industrial electronics, power supplies, and HVAC equipment where stable capacitor performance is critical.
Capacitance of 100 nF provides stable noise suppression. Rated for 310V AC and DC ensuring robust voltage endurance. Epoxy resin flame-retardant case protects against environmental hazards. Lead pitch of 15mm enables accurate PCB placement and soldering.
Meets IEC and UL certification standards for safety and reliability. AEC-Q200 qualified for automotive and demanding applications. Compact dimensions support space-constrained electronic designs. X2 class interference suppression capacitor for industrial use.
Suitable for installation between electrical phases or phase to neutral.
This Vishay film capacitor is optimal for use in industrial, automotive, HVAC, power supply, and electronic manufacturing applications requiring proven reliability and compliance. For more electronic components and capacitors from Vishay, explore the capacitors category at EnvMart.
Explore more products in our Film Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this film capacitor is 100 nF.
It is rated for 310V AC and 310V DC.
The maximum operating temperature is 110°C.
The dimensions are 17.9mm in length, 12mm in height, and 6mm in width.
The lead pitch is 15mm and the lead diameter is 0.8mm.
This model uses a through-hole mount design for installation.
Yes, it complies with the AEC-Q200 automotive standard.
It belongs to the X2 suppression class, suitable for interference suppression.
It complies with IEC 60384-14, UL 60384-14, CSA E384-14, and IEC 60065.
It is suitable for industrial electronics, power supplies, HVAC equipment, and automotive applications.
It features a metallised film construction and is sealed in a flame-retardant epoxy resin case.
The X2 class rating indicates its reliability for use between phases or phase-to-neutral applications to reduce electromagnetic interference.
