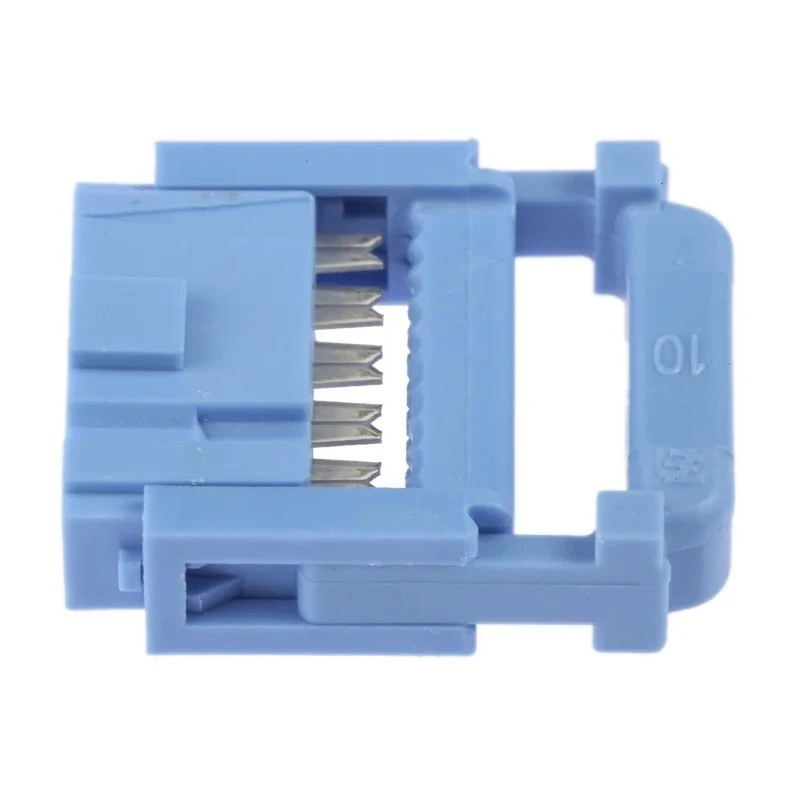

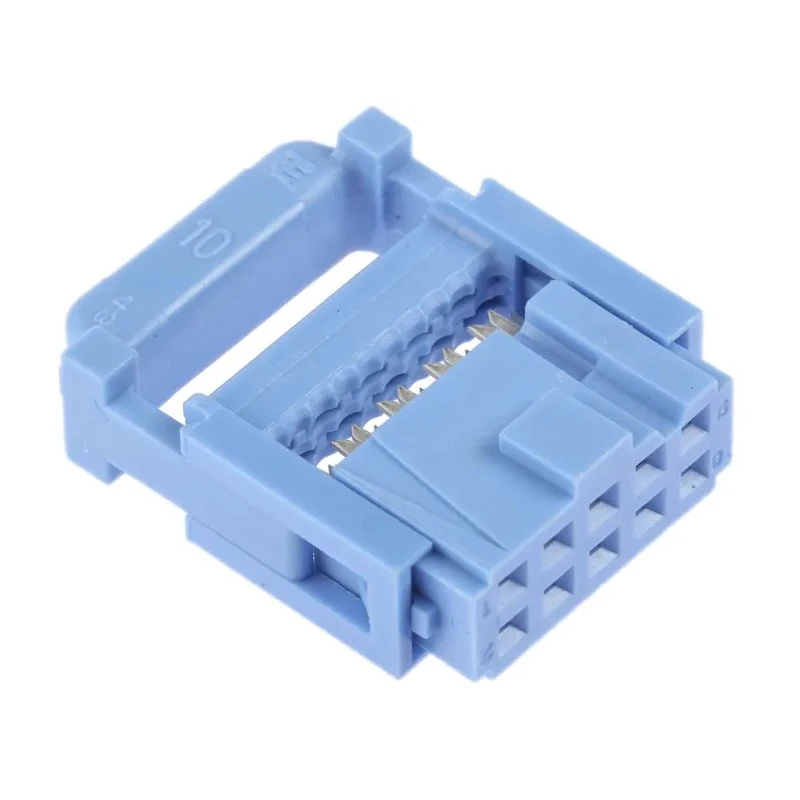

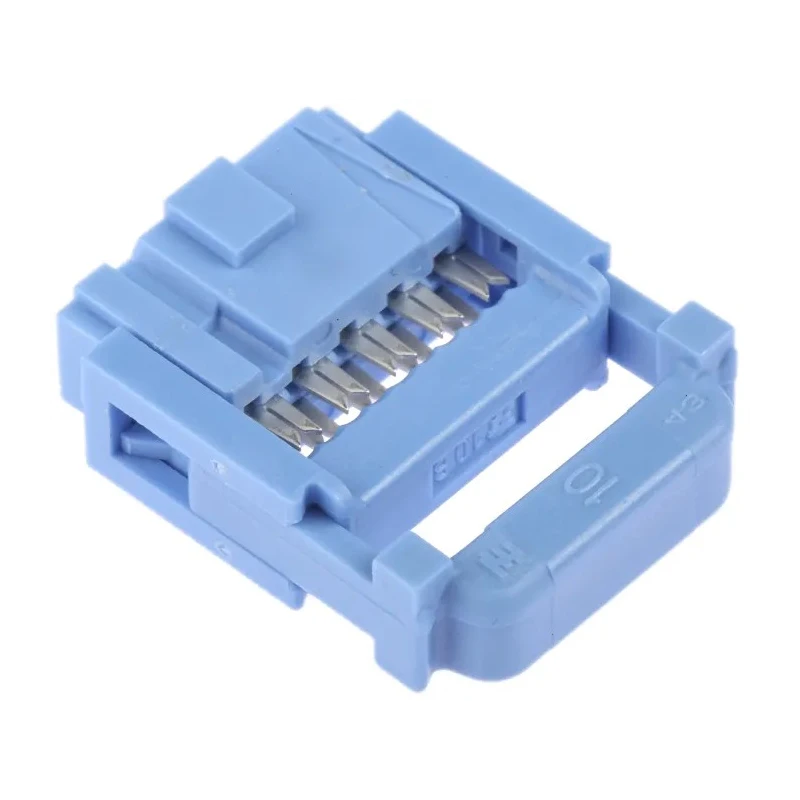

TE Connectivity 10-Way IDC Connector Female for Cable, 2 Row, 250V, 1A, Gold over Nickel Plating 1658527-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper |
| Series | AMP-LATCH 622 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| TE Connectivity 10-Way IDC Connector Female for Cable, 2 RowBrand | TE Connectivity |
Key Features
- Designed for use with flat ribbon cables possessing 26-28 AWG or stranded PVC insulation.
- Gold over nickel contact plating provides enhanced conductivity and corrosion resistance.
- Features a right-angle cable mount and shrouded female connector for secure attachment.
- Operating temperature range from -55°C to 125°C ensures durability in harsh environments.
- Housing is made of thermoplastic material with UL 94V-0 flame rating for safety assurance.
- Contact spacing of 2.54mm pitch suits standard PCB connector requirements.
- Part of the AMP-LATCH 622 series with single slot, flat tuning fork IDC contact design.
- Complies with IDC and DIN-41651 standards for multi-row ribbon cable connectors.
Product Description
TE Connectivity 1658527-4 10-Way IDC Connector Female for Cable, 2 Row is a precision-engineered IDC ribbon cable socket connector designed for creating reliable cable assemblies in electronic applications. Rated for 250V and 1A, it ensures consistent electrical performance in industrial, electronic, and communication systems.
This 2-row female connector features 10 contacts spaced at a 2.54mm pitch, accommodating 26-28 AWG or stranded PVC insulated flat ribbon cables. The contact pins are made of beryllium copper with gold plating over a nickel underplate to provide excellent conductivity and resistance to corrosion.
The thermoplastic housing is glass-filled and UL 94V-0 rated, delivering enhanced safety and flame retardancy. Its right-angle cable mount design aids in efficient PCB layout and cable management within compact assemblies. The connector's single-slot flat tuning fork IDC contact design facilitates secure, maintenance-free cable termination.
Operating temperature range from -55°C to 125°C allows use in diverse environmental conditions, including industrial and commercial electronic devices. The connector complies with IDC and DIN-41651 standards, assuring compatibility and quality consistency.
Suitable for industrial, communication, and electronic assembly applications. Ensures secure and reliable cable connections with gold-plated contacts. Thermoplastic housing with UL 94V-0 flame rating for electrical safety.
Right-angle orientation for optimal cable routing and PCB space utilization. 2-row 10-contact housing supports standard ribbon cable formats. EnvMart offers this connector as part of the comprehensive TE Connectivity range, perfect for electronics manufacturing, repair, and prototyping needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 250V.
This connector is rated for a maximum current of 1A.
It is designed for use with flat ribbon cables that possess 26-28 AWG or stranded PVC insulation.
The contact spacing for this model is 2.54mm pitch, which suits standard PCB connector requirements.
The operating temperature range for this connector is from -55°C to 125°C.
The housing is made of thermoplastic material with a UL 94V-0 flame rating for safety assurance.
This connector features 10 contacts arranged in 2 rows.
This model uses IDC (Insulation Displacement Connector) termination type for secure connections.
The connector has a right-angle orientation, which aids in efficient PCB layout and cable management.
The contact pins are made of beryllium copper with gold over nickel plating for enhanced conductivity and corrosion resistance.
It complies with IDC and DIN-41651 standards for multi-row ribbon cable connectors.
This connector is part of the AMP-LATCH 622 series.
