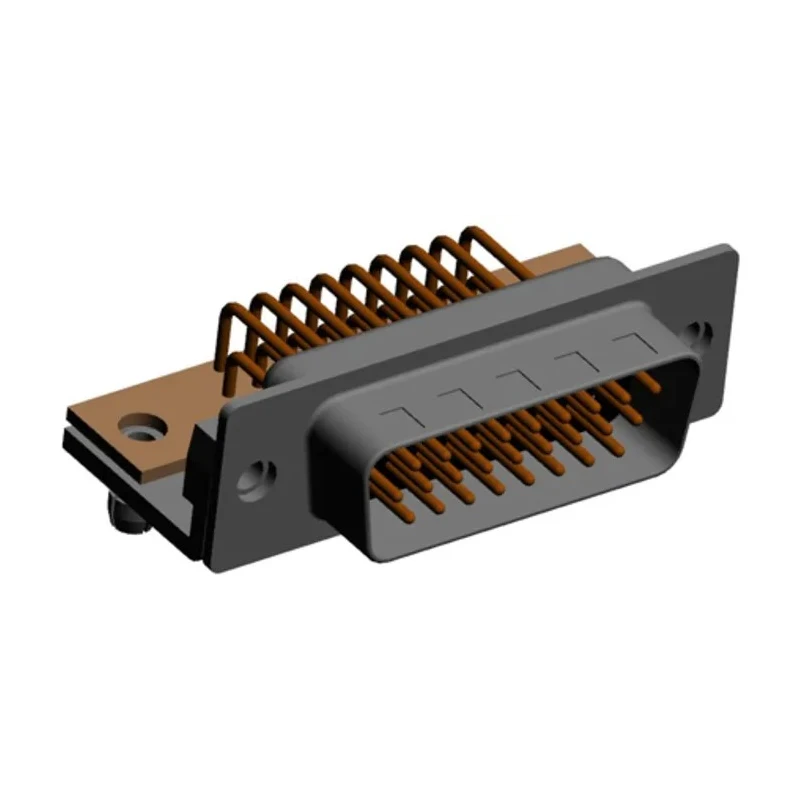

Norcomp SEAL-D 26 Way Right Angle 2.286 mm Pitch High Density D-Sub Connector 781-M26-113R141
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 1000V |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | 781-M26-113R141 |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | SEAL-D |
| Mounting Hardware | 4 to 40 Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.286mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | High Density |
Key Features
- Features a right angle orientation ideal for PCB mounting.
- Comprises 26 contacts made from brass with gold plating for enhanced conductivity and corrosion resistance.
- Supports a voltage rating of up to 1000V and current limit of 5A for robust performance.
- Constructed with a nickel-plated steel housing delivering improved shielding and grounding.
- Contains mounting hardware with 4 to 40 inserts and PCB board locks for secure installation.
- Designed to meet IEC-529-IP67 sealing standards ensuring protection against dust and temporary water immersion.
- Operates reliably across a temperature range of -55°C to 105°C.
- Termination type is solder for secure electrical connection.
Product Description
The Norcomp 781-M26-113R141 SEAL-D 26 Way Right Angle High Density D-Sub Connector features a 2.286 mm pitch with male contacts optimized for reliable PCB mounting and connectivity in demanding environments.
This IP67 sealed D-Sub Connector utilizes advanced sealing technology to maintain a standard D-sub footprint while providing industry-leading resistance to dust and water infiltration meeting IEC-529-IP67 standards. Its robust nickel-plated steel shell enhances electromagnetic shielding and grounding via ground indents.
Designed for applications including handheld computers, remote sensors, medical equipment, industrial transmitters, gas and electric metering systems, and portable power generation, this connector assures reliability in harsh and outdoor conditions.
Right angle orientation with 4 to 40 mount inserts and board locks provide strong PCB retention. Brass contacts plated with gold guarantee quality signal transmission and corrosion resistance. Operable temperature range from -55°C to 105°C suits diverse industrial environments.
Supports operating voltage of 1000V and current up to 5A for stable electrical performance. Sealing technology enables temporary immersion protection without changing connector size or compatibility. Constructed in United States with high manufacturing standards ensuring quality and durability.
The SEAL-D series connectors are a preferred choice for industries requiring high reliability in water and dust-exposed conditions without redesigning existing enclosure footprints. Norcomp's quality ensures excellent shielding, durability, and secure mounting to enhance long-term application performance.
Explore the EnvMart Electronics & Electricals Connectors category for more Norcomp products offering innovative solutions for power and signal connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Norcomp SEAL-D 26 Way Right Angle D-Sub Connector supports a voltage rating of up to 1000V.
This connector has a current limit of 5A, ensuring robust electrical performance.
The contacts are made from brass and plated with gold, while the housing is constructed from nickel-plated steel.
It operates reliably across a temperature range of -55°C to 105°C, suitable for diverse industrial environments.
The termination type for this model is solder, providing a secure electrical connection.
The pitch of the contacts is 2.286 mm, designed for high-density applications.
It includes mounting hardware with 4 to 40 inserts and PCB board locks for secure installation.
This model meets IEC-529-IP67 sealing standards, ensuring protection against dust and temporary water immersion.
It is designed for applications including handheld computers, remote sensors, medical equipment, and industrial transmitters.
The connector features male contacts, optimized for reliable connectivity.
The Norcomp SEAL-D connector is constructed in the United States, adhering to high manufacturing standards.
