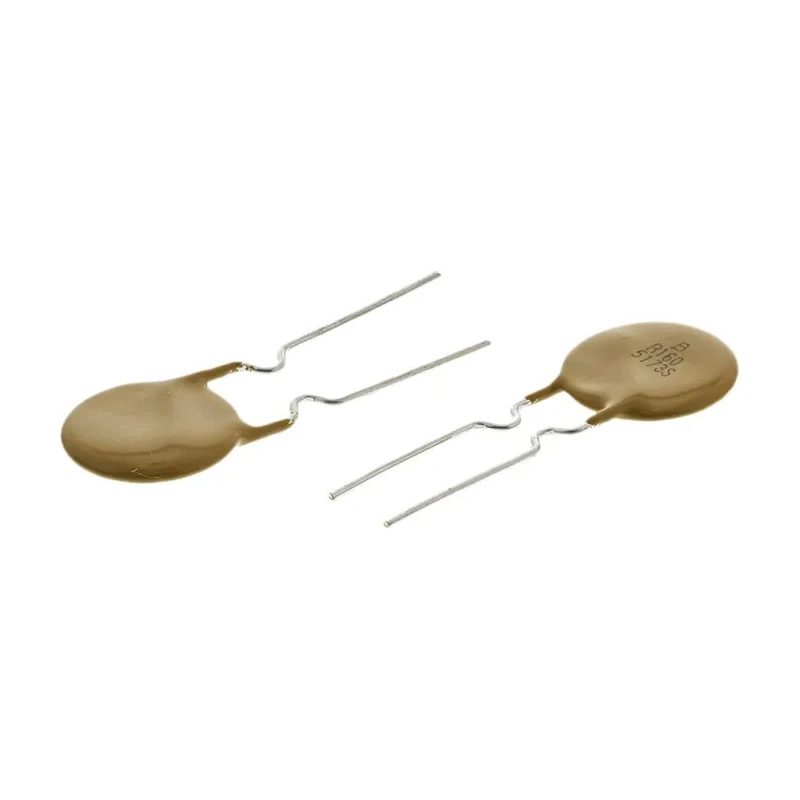

Bourns 1.6 A Resettable Fuse 30V Radial Leaded MFR Series MF-R160
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Bourns |
| Height | 16.8mm |
| Length | 10.2mm |
| Model | MF-R160 |
| Width | 3mm |
| Current Rating | 40A |
| Series | MFR |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 3.2A |
| Power Dissipation | 0.9W |
| Standards/Approvals | RoHS, UL |
| Lead Diameter | 0.51mm |
| Time to Trip | 8s |
| Hold Current | 1.6A |
| Minimum Resistance | 0.055Ω |
| Maximum Resistance | 150mΩ |
| Lead Orientation | Radial |
Key Features
- Automatically resets thousands of times for maintenance-free use.
- Radial leaded design suitable for PCB wire-ended mounting.
- Power dissipation of 0.9W supports reliable operation.
- Wide operating temperature range from -40°C to 85°C.
- Compact dimensions of 10.2mm length, 16.8mm height, and 3mm width.
- Meets RoHS and UL standards for safety and compliance.
- Ideal for protecting security systems, power supplies, and automotive equipment.
- Fast trip time of 8 seconds at 3.2A trip current ensures prompt fault response.
Product Description
Bourns MF-R160 is a 1.6 A rated resettable fuse designed to protect electrical and electronic circuits against excessive current conditions at 30 volts. This radial leaded MFR series device incorporates cured, flame retardant epoxy polymer material conforming to UL 94V-0 for enhanced safety and durability. Its compact form factor features a length of 10.2mm, height of 16.8mm, and width of 3mm, enabling easy PCB integration.
The fuse automatically switches from a low resistance state to a high resistance state during overload or short circuit, then resets itself once the fault is cleared, providing maintenance-free and repeated use. It operates reliably across a broad temperature range, from -40°C to 85°C, and dissipates up to 0.9 watts of power. Approvals include RoHS and UL certifications.
Typical applications include security systems, power supplies and transformers, power switching devices, automotive and medical equipment, instrumentation and control systems, computer peripherals, audio visual, and telecommunications. The rapid 8-second trip time at a 3.2A trip current offers effective protection without delays.
Automatically resets thousands of times, eliminating fuse replacements. Radial lead orientation with 0.51mm lead diameter for secure soldering. Durable epoxy polymer housing ensures flame retardancy and insulation. Compact size saves PCB space in dense electronic assemblies.
Wide application range including industrial, medical, automotive, and communication devices. Compliance with international safety standards RoHS and UL enhances reliability. Stable electrical characteristics with minimum resistance of 0.055Ω and maximum resistance of 150mΩ.
Designed to improve production efficiency with easy insertion packaging.
Select Bourns MF-R160 for robust circuit protection requiring rapid resettable fuse technology in various electrical and electronic applications. Explore more Resettable Fuse options and specifications within EnvMart's comprehensive industrial electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns MF-R160 has a current rating of 1.6A and a trip current of 3.2A.
This model has a length of 10.2mm, a height of 16.8mm, and a width of 3mm.
The maximum operating temperature for this resettable fuse is 85°C.
It meets RoHS and UL standards for safety and compliance.
During overload or short circuit, it switches from a low resistance state to a high resistance state and resets itself once the fault is cleared.
The MF-R160 can dissipate up to 0.9 watts of power.
The time to trip is 8 seconds at a trip current of 3.2A.
The lead diameter is 0.51mm, designed for secure soldering.
The minimum resistance is 0.055Ω and the maximum resistance is 150mΩ.
Typical applications include security systems, power supplies, automotive equipment, and instrumentation.
The country of origin for this resettable fuse is India.
The MF-R160 is part of the MFR series of resettable fuses.
