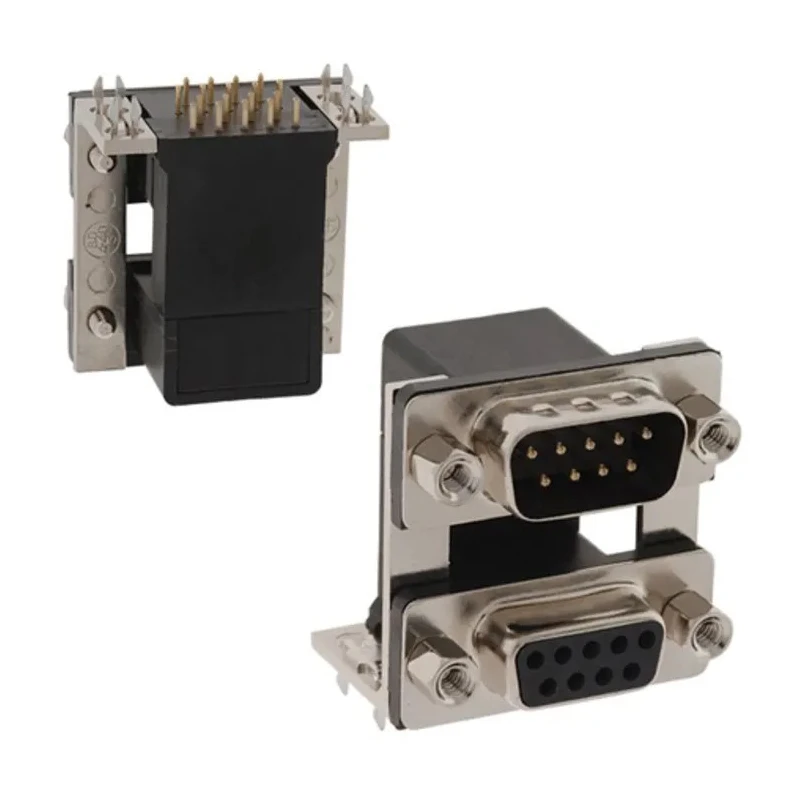

Norcomp D-Sub Connector Right Angle PCB Mount 9 Contacts Female to Male 1kV Voltage 5A Current 189-009-413R571
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1kV |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | 189-009-413R571 |
| Mount Type | PCB |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 189 |
| Mounting Hardware | 4 to 40 Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts A | 9 |
| D-Sub Shell Size A | DA-9 |
| Contact Gender A | Female |
| D-Sub Shell Size B | DB-9 |
| Contact Gender B | Male |
Key Features
- Equipped with 9 female and 9 male contacts for dual-port PCB connectivity.
- Right angle orientation optimizes PCB space efficiently.
- Housing made of nickel-plated steel offers improved shielding and grounding.
- Contacts are brass with gold plating to ensure high performance and durability.
- Rated for 5A current and 1kV voltage for industrial electronic applications.
- Suitable for operating temperatures from -55°C to 105°C with UL94V-0 thermoplastic insulator.
- Secure mounting enabled by 4 to 40 inserts for reliable PCB retention.
- Pitch measurement of 2.769 mm ensures precise alignment and connection.
Product Description
Norcomp 189-009-413R571 is a high-quality D-Sub Connector featuring a right angle, dual-port PCB mount design with 9 female contacts on side A and 9 male contacts on side B. The connector series 189 provides excellent electrical performance with stamped, gold-plated brass contacts rated at 5 amperes and 1kV voltage.
The nickel-plated steel housing ensures superior shielding and grounding with ground indents that also help in retention. Its mounting hardware includes 4 to 40 inserts for secure and stable attachment to the PCB, complemented by boardlocks for additional retention.
This connector operates effectively within a temperature range from -55°C to 105°C, making it suitable for various industrial, electronics manufacturing, and embedded system applications. The UL94V-0 thermoplastic insulator supports a high process temperature of 260°C, ensuring durability during soldering and operation.
The 2.769 mm pitch between contacts allows precise mating and reliable electrical contact, ideal for stacked dual-port configurations to save PCB space without compromising performance.
Equipped with 9 female and 9 male contacts for dual-port PCB connectivity. Right angle orientation optimizes PCB space efficiently. Housing made of nickel-plated steel offers improved shielding and grounding. Contacts are brass with gold plating to ensure high performance and durability.
Rated for 5A current and 1kV voltage for industrial electronic applications. Suitable for operating temperatures from -55°C to 105°C with UL94V-0 thermoplastic insulator. Secure mounting enabled by 4 to 40 inserts for reliable PCB retention.
Pitch measurement of 2.769 mm ensures precise alignment and connection. Designed specifically for multiple connector ports within limited PCB space.
This Norcomp D-Sub Connector 189 Series is widely used in electronic component manufacturing, telecommunications, automotive electronics, and other industrial sectors requiring robust and compact connector solutions. It supports complex PCB layouts requiring reliable and dense connectivity without extra board space.
Explore more connectors and electronic component solutions on EnvMart to find products matching specific application needs and standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Norcomp D-Sub Connector is rated for a voltage of 1kV.
This connector supports a current rating of 5A.
The pitch measurement of this connector is 2.769 mm, ensuring precise alignment and connection.
The housing is made of nickel-plated steel, while the contacts are brass with gold plating.
It operates effectively within a temperature range from -55°C to 105°C.
It features mounting hardware with 4 to 40 inserts for secure attachment to the PCB.
The termination type for this model is solder.
This D-Sub connector has 9 female contacts on one side and 9 male contacts on the other side.
This connector is part of the Norcomp 189 series.
The right angle orientation optimizes PCB space efficiently, making it suitable for dense layouts.
The connector is manufactured in Taiwan.
It is suitable for various industrial, electronics manufacturing, and embedded system applications.
