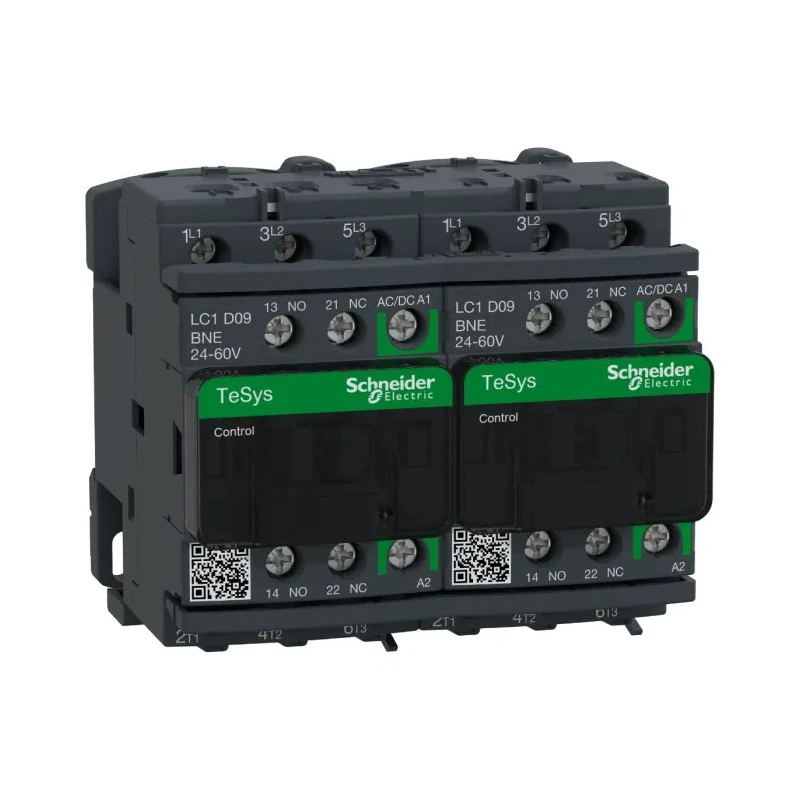

Schneider Electric TeSys D Reversing Contactor 24V ac/dc Coil 3-Pole 9 A 5.5 kW 60V 3 NO 690V ac LC2D09BNE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 90mm |
| Model | LC2D09BNE |
| Depth | 77mm |
| Width | 86mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 60V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 24V ac/dc coil voltage for flexible control circuit applications.
- Features 3 poles with 3 normally open (NO) contacts for reliable reversing function.
- Supports contact voltage of up to 690V ac ensuring high-voltage motor compatibility.
- Includes 2 auxiliary contacts configured as 2 NO and 2 NC providing additional switching capabilities.
- DIN rail mountable for easy installation and IP20 finger-safe screw terminals.
- Suitable for motor control, resistive loads, and reversing applications with operational current rating of 9A.
- Designed with robust construction compliant with IEC, UL, CSA, CCC, RoHS, and EAC standards.
- Operating temperature range from -25°C to 60°C for versatile industrial environments.
Product Description
Schneider Electric LC2D09BNE is a premium TeSys D series reversing contactor featuring a 24V ac/dc coil designed for motor control and resistive load applications. It offers a 3-pole configuration with 9A contact current and power rating of 5.5 kW, supporting a maximum contact voltage of 690V ac and control circuit voltage of 60V.
The contactor ensures versatile industrial and automation usage through its reliable built-in auxiliary contacts and pre-installed mechanical interlock allowing safe reversing operations. With DIN rail mounting compatibility and IP20 finger-safe screw terminals marked for international and North American standards, installation remains straightforward and secure.
This device operates efficiently within a temperature range from -25°C to 60°C, making it suitable for various industrial, manufacturing, HVAC, and electrical automation scenarios. Its compact dimensions (90mm length, 86mm width, 77mm depth) enable panel space optimization.
Designed for durability, the contactor follows international standards including IEC, UL, CSA, CCC, EAC, and RoHS ensuring compliance and longevity in demanding applications. The LC2D09BNE leverages the TeSys D technology with double-break linear translation movement for enhanced contact longevity and performance.
Equipped with 2 auxiliary contacts configured as normally open and normally closed for versatile switching options. Includes screw-type terminals that are IP20 finger-safe with clear markings for ease of wiring. Preassembled with reversing power busbar and mechanical interlock, guaranteeing safe motor reversing operation.
Use cases include motor starters, resistive load control, lifts, conveyors, compressors, pumps, and HVAC systems. Designed for high electrical and mechanical endurance suitable for industrial automation and control panels.
Choose Schneider Electric TeSys D Reversing Contactors for efficient motor control, robust industrial use, and compliance with multiple global certifications. EnvMart offers this product for applications requiring durable and reliable reversing switching solutions.
