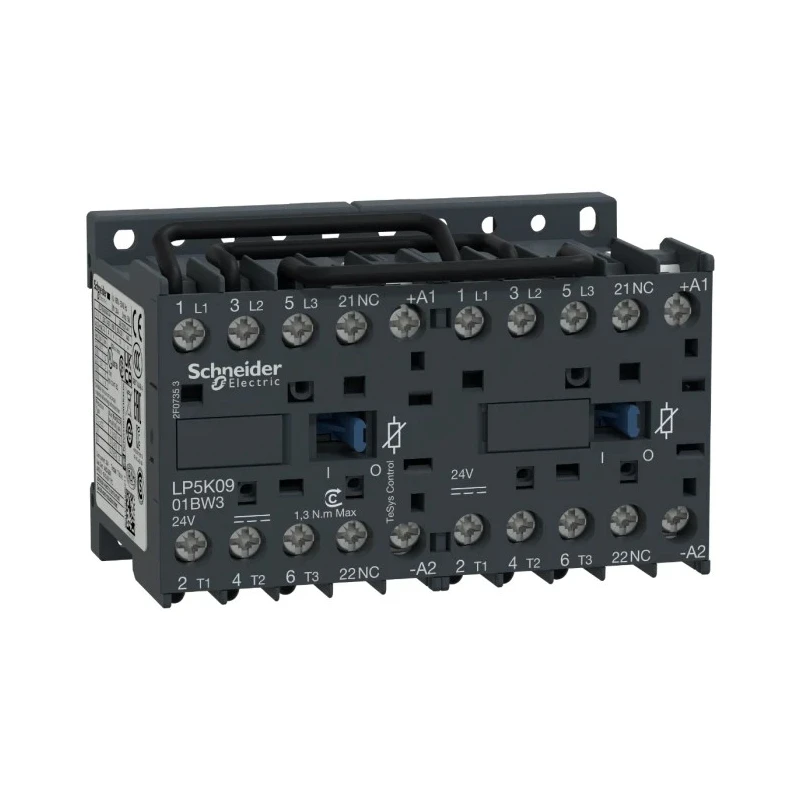

Schneider Electric LP5K Reversing Contactor, 24V DC Coil, 3-Pole, 9 A, 4 kW, 3 NO, 690V AC LP5K0901BW3
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 58mm |
| Model | LP5K0901BW3 |
| Depth | 57mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LP5K |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Connectors | screw clamp, faston connectors, spring terminals, pins for printed circuit boards |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
| Common options available for all ratings | 6, 9, 12 A |
| Control circuits available | AC, DC, low-consumption DC, silent |
Key Features
- Operates at an AC contact voltage of 690V for reliable performance.
- Designed with 3 normally open (NO) contacts and 1 normally closed (NC) auxiliary contact.
- Power rated at 4 kW, suitable for resistive load and motor control.
- DIN rail mounted with screw clamp terminals for secure and convenient installation.
- Suitable for operating temperatures from -25°C to a maximum of 50°C.
- Complies with multiple international standards including IEC, UL, CSA, CCC, EAC, and RoHS.
- Preassembled with reversing power busbar and mechanical interlock feature for enhanced safety.
- Motor control category applications such as lifts, conveyors, compressors, pumps, and mixers.
Product Description
Schneider Electric LP5K0901BW3 is a high-quality reversing contactor designed specifically for motor control and resistive load applications. This model operates with a 24V DC coil voltage and supports up to 9 A current at an operational voltage of 690V AC. It features a 3-pole configuration with 3 normally open contacts and includes 1 normally closed auxiliary contact for auxiliary functions.
The device is compact with dimensions of 90mm width, 58mm length, and 57mm depth, making it suitable for installations requiring space efficiency. It mounts easily to DIN rails and uses screw clamp terminals for secure electrical connections, ensuring a robust setup in industrial or automation control systems.
Built to operate reliably in temperatures ranging from -25°C to 50°C, the LP5K0901BW3 is suitable for challenging industrial environments. It carries multiple certifications such as IEC, UL, CSA, CCC, EAC, and RoHS, affirming its compliance with global quality and safety standards.
This reversing contactor is equipped with a transient suppressor module to reduce coil consumption and features mechanical interlocks to prevent electrical interlocking issues during operation. It is preassembled with a reversing power busbar to simplify wiring and improve installation efficiency.
Operates at 690V AC contact voltage with 9A current and 4kW power rating. 3 NO main contacts and 1 NC auxiliary contact configuration for versatile motor control. Compact size with DIN rail mounting and screw clamp terminals.
Wide operating temperature range from -25°C to 50°C for industrial environments. Certified to IEC, UL, CSA, CCC, EAC standards and RoHS compliant. Transient suppressor and low coil power consumption improve durability and efficiency.
Mechanical interlock and prewired power connections enhance safety and simplify installation. Ideal for motor control in lifts, compressors, pumps, conveyors, mixers, and more.
This Reversing Contactor is a reliable choice for electrical and automation control gear applications in industrial, commercial, and HVAC settings. Its robust construction and multi-standard certification ensure dependable performance and ease of integration.
Explore more Schneider Electric products and automation solutions through EnvMart for enhanced control and operational efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LP5K0901BW3 has a power rating of 4 kW, suitable for resistive load and motor control applications.
This reversing contactor operates at a maximum contact voltage of 690V AC.
The coil voltage for this model is 24V DC.
It features a 3-pole configuration with 3 normally open contacts and 1 normally closed auxiliary contact.
The dimensions of the LP5K0901BW3 are 90mm in width, 58mm in length, and 57mm in depth.
It can operate in temperatures ranging from -25°C to a maximum of 50°C.
This model is designed for DIN rail mounting and utilizes screw clamp terminals for secure connections.
It complies with multiple international standards including IEC, UL, CSA, CCC, EAC, and is RoHS compliant.
This reversing contactor is suitable for motor control applications such as lifts, conveyors, compressors, pumps, and mixers.
It uses screw clamp connectors, faston connectors, spring terminals, and pins for printed circuit boards.
Yes, it is equipped with a mechanical interlock feature and a transient suppressor module to enhance safety and reduce coil consumption.
The contact current rating for the LP5K0901BW3 is 9 A.
