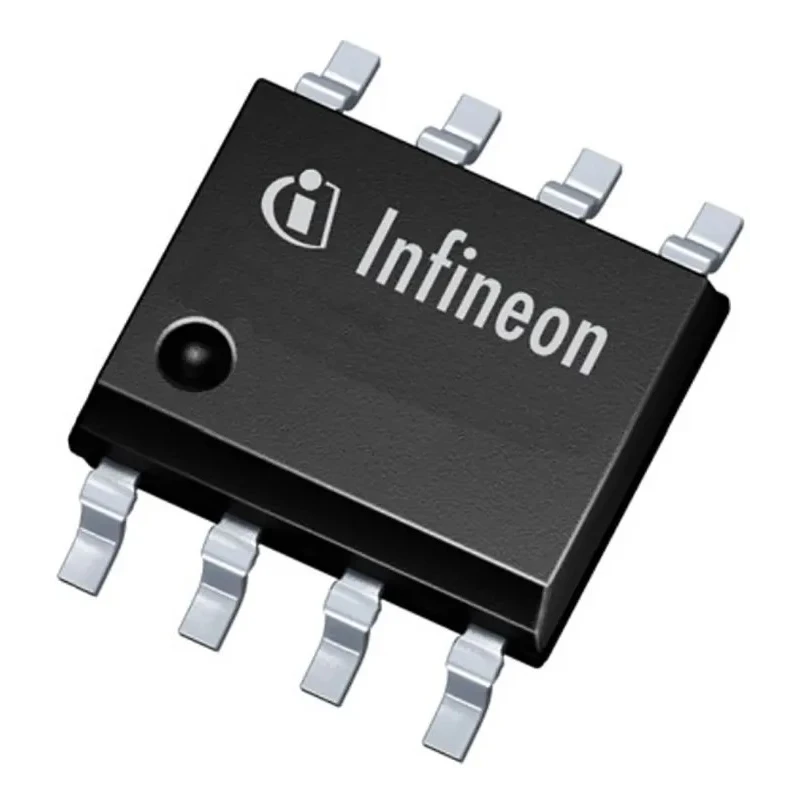

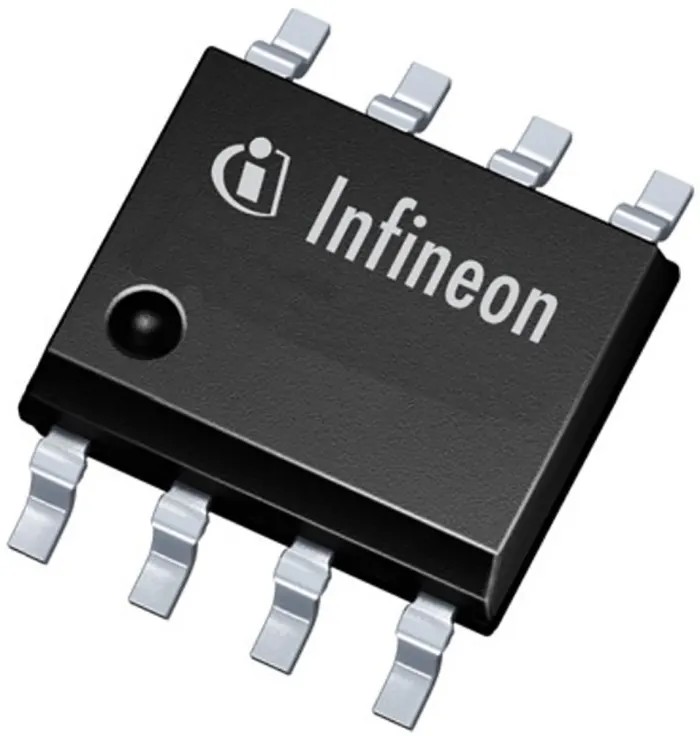

Infineon MOSFET Gate Driver 2 Outputs 4 A 8-Pin 17V Surface Mount DSO Package 1EDI20I12AFXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon MOSFET Gate Driver 2 Outputs 4 A 8-Pin 17V Surface Mount DSO Package 1EDI20I12AFXUMA1

Name: Infineon MOSFET Gate Driver 2 Outputs 4 A 8-Pin 17V Surface Mount DSO Package 1EDI20I12AFXUMA1
Brand: Infineon
SKU: 144014



Category MOSFET Gate Driver Brand Infineon Condition New

Specifications

Country of Origin	China
Brand	Infineon
Height	1.65mm
Length	5mm
Model	1EDI20I12AFXUMA1
Width	4mm
Mount Type	Surface
Series	1EDI20I12AF
Output Current	4A
Maximum Operating Temperature	125°C
Package Type	DSO
Minimum Operating Temperature	-40°C
Number of outputs	2
Rise Time	20ns
Pin Count	8
Minimum Supply Voltage	17V
Number of Drivers	2
Fall Time	19ns
Driver Type	MOSFET

Key Features

Supports a maximum output current of 4 amperes across two outputs.
Operates with a minimum and maximum supply voltage of 17 volts.
Comes in a compact DSO surface mount package with dimensions 5 mm length, 4 mm width, and 1.65 mm height.
Designed to operate in temperatures ranging from -40°C to +125°C ensuring reliability.
Features fast switching with rise time of 20 ns and fall time of 19 ns.
Includes two MOSFET drivers providing isolated gate driving for MOSFET and IGBT transistors.
Mount type is surface-mount technology suitable for modern PCB assembly.
No automotive standard compliance; suitable for general industrial and electronic applications.

Product Description

Infineon 1EDI20I12AFXUMA1 MOSFET Gate Driver is a high-performance power management integrated circuit featuring dual MOSFET driving capability with a peak output current of 4 A. It is housed in a compact 8-pin DSO surface mount package with dimensions of 5 mm length, 4 mm width, and 1.65 mm height, making it suitable for integration into various electronic designs.

The device supports operation across a supply voltage of 17 V and is optimized for fast switching with a rise time of 20 ns and fall time of 19 ns, enabling efficient gate control of power MOSFETs and IGBTs. It is engineered to operate reliably in harsh industrial environments with temperature ranges from -40°C to +125°C.

Its dual isolated gate drivers facilitate separate source and sink outputs, enhancing the effectiveness of motor drive applications such as AC motors and brushless DC motor drives. The product is designed for surface mounting, compatible with automated PCB soldering processes.

This Infineon MOSFET Gate Driver finds extensive application in power management circuits in industrial equipment, manufacturing automation, automotive electronics (non-automotive standard compliant), HVAC systems, and electronic test equipment.

Dual output MOSFET Gate Driver IC with 4 A output current for robust driving capability. Compact and reliable 8-pin DSO surface mount package suitable for high-density board layouts. Wide operating temperature range from -40°C to 125°C for enhanced durability.

Fast switching rise and fall times for improved efficiency in power conversion. Designed for isolated gate driving of MOSFETs and IGBTs in advanced industrial applications. Surface mount compatible for modern electronics manufacturing processes.

For further technical insights and engineering resources, designers can access related datasheets, RoHS and conformity certificates through Infineon’s official documentation. The product supports integration into motors and industrial power control designs for optimal performance.

Explore more semiconductor power management solutions at EnvMart to enhance your electronic component sourcing needs.
