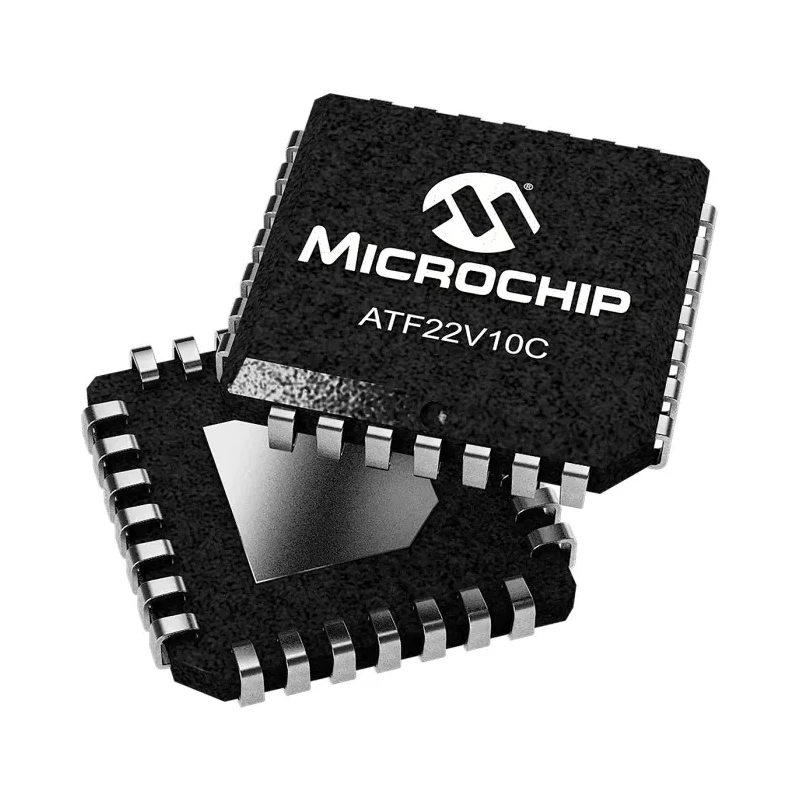

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 125 MHz In System ATF22V10C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 11.58mm |
| Model | ATF22V10C |
| Mount Type | Surface |
| Series | ATF22V10C |
| Maximum Operating Temperature | 85°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 10ns |
| Number of Gates | 350 |
| Number of Macro Cells | 10 |
| Number of User I/Os | 10 |
| Maximum Internal Frequency | 125MHz |
Key Features
- Offers in-system programmability for flexible integration.
- Supports re-programmability with surface mount PLCC package.
- Operates with supply voltage range from 4.5V to 5V.
- Operates reliably from -40°C to 85°C operating temperature range.
- Features 28 pins and a maximum propagation delay time of 10ns.
- Designed with RoHS compliance ensuring environmental standards.
- Compact dimensions measuring 11.58mm length and 4.06mm height.
- Ideal for industrial and electronic component applications.
Product Description
Microchip ATF22V10C is a simple programmable logic device designed for high reliability and low power consumption. Featuring 350 gates, 10 macro cells, and 10 user I/Os, this device supports in-system programmability enabling dynamic modification after deployment.
The device comes in a surface mount PLCC package with 28 pins, measuring 11.58mm in length and 4.06mm in height, making it suitable for space-constrained PCB designs. With a maximum internal frequency of 125 MHz and a maximum propagation delay time of 10 nanoseconds, it provides fast logic operation for electronic applications.
Operating voltage ranges between 4.5V and 5V, and it is specified to operate reliably over a broad temperature range from -40°C to 85°C, making it apt for demanding industrial environments.
The Microchip ATF22V10C is RoHS compliant, aligning with modern environmental and safety standards. In-system programmability for real-time configurability. Re-programmability support enabling flexible design modifications.
Surface mount PLCC package for efficient PCB integration. Wide operating temperature ensures industrial grade performance. High maximum internal frequency and low propagation delay time. Low power consumption suited for embedded systems.
Compliant with RoHS environmental regulations. Compact form factor supports dense circuit layouts. This programmable logic device is extensively used in electronic components, semiconductor applications, and industrial automation systems.
Explore more Programmable Logic ICs and electronic components at EnvMart for versatile industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum internal frequency of the ATF22V10C is 125 MHz.
This model operates reliably within a temperature range of -40°C to 85°C.
The ATF22V10C features 350 gates.
It operates with a supply voltage range from 4.5V to 5V.
The maximum propagation delay time for this model is 10 nanoseconds.
It comes in a surface mount PLCC package.
This device supports 10 user I/Os.
The dimensions are 11.58mm in length and 4.06mm in height.
Yes, the ATF22V10C is RoHS compliant, ensuring it meets environmental standards.
It is suitable for industrial and electronic component applications.
The device includes 10 macro cells.
The country of origin for the ATF22V10C is India.
