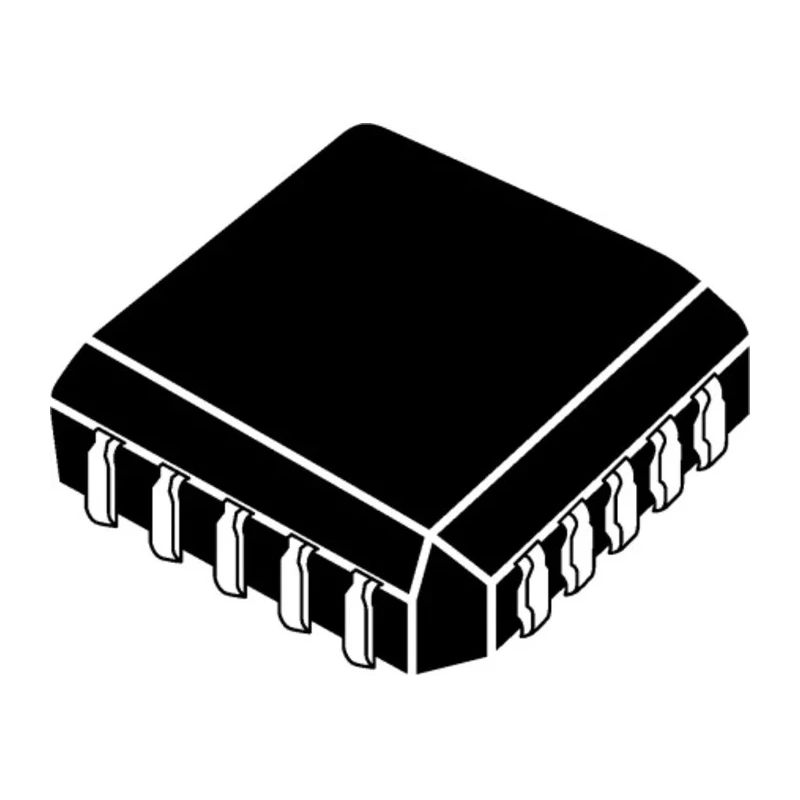

Microchip Simple Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System ATF16V8CZ-15JU
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 9.04mm |
| Model | ATF16V8CZ-15JU |
| Mount Type | Surface |
| Series | ATF16V8CZ |
| Maximum Operating Temperature | 85°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 15ns |
| Number of Gates | 150 |
| Number of Macro Cells | 8 |
| Number of User I/Os | 8 |
| Maximum Internal Frequency | 62MHz |
Key Features
- High-performance device with 150 gates suitable for complex logic designs.
- Features 8 macro cells enabling flexible programmable logic functions.
- Offers 8 user input/output pins for versatile interfacing.
- Operates at a maximum internal frequency of 62 MHz for fast processing.
- Supports in-system programmability and re-programmability for design modifications.
- Surface mount type with a PLCC package for ease of PCB integration.
- Wide operating temperature range from -40°C to 85°C for industrial environments.
- Low propagation delay time of 15 nanoseconds ensuring responsive logic operations.
Product Description
Microchip ATF16V8CZ-15JU is a simple programmable logic device featuring 150 gates, 8 macro cells, and 8 user input/output pins, capable of operating internally at 62 MHz. This device is designed for low power consumption and high reliability, making it suitable for a wide range of industrial, electronic, and manufacturing applications requiring configurable logic solutions.
This programmable logic IC supports in-system programmability and re-programmability, providing flexibility to update or modify circuitry without physical removal. It comes in a PLCC surface mount package with 20 pins, facilitating easy integration into printed circuit boards.
The device operates reliably within a temperature range of -40°C to 85°C, suitable for harsh industrial conditions. With a maximum propagation delay time of 15 nanoseconds, it delivers quick response times essential for high-speed digital processing tasks.
Its electrical specifications include a minimum supply voltage of 4.5 V and a maximum of 5 V, making it compatible with typical digital power rails. The compact physical dimensions of 9.04mm length and 4.06mm height enable space-efficient designs.
Microchip ensures this device meets RoHS environmental standards, endorsing eco-friendly manufacturing. Originating from Thailand, this SPLD is ideal for applications in industrial automation, embedded systems, and electronic controller design.
High-performance simple programmable logic device with 150 gates. Eight macro cells provide flexible logic cell utilization. Supports 8 user input/output pins for versatile circuit interfacing. Operates at an internal frequency up to 62 MHz for fast logic processing.
Enables in-system programmability and re-programmability for easy updates. Equipped with a PLCC surface mount package featuring 20 pins. Designed for operation in temperatures from -40°C to 85°C for industrial use. Ensures fast logic switching with a 15 ns maximum propagation delay.
Complies with RoHS standards for environmental safety. Compact dimensions fit space-constrained electronic assemblies. Explore the Electronics & Electricals category for more semiconductor and programmable logic devices at EnvMart.
Explore more products in our Programmable Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum internal frequency of this model is 62 MHz, allowing for fast logic processing.
This device features 150 gates, which are suitable for complex logic designs.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
The ATF16V8CZ-15JU supports 8 user input/output pins for versatile interfacing.
The maximum propagation delay time is 15 nanoseconds, ensuring responsive logic operations.
It comes in a PLCC surface mount package with a pin count of 20, facilitating easy integration into PCBs.
Yes, it complies with RoHS standards for environmental safety, endorsing eco-friendly manufacturing practices.
The minimum supply voltage required is 4.5 V, while the maximum is 5 V, making it compatible with typical digital power rails.
Yes, it supports in-system programmability and re-programmability, allowing for updates without physical removal.
The dimensions are 9.04 mm in length and 4.06 mm in height, enabling space-efficient designs.
This model belongs to the ATF16V8CZ series, which features high-performance programmable logic devices.
It is suitable for a wide range of applications in industrial automation, embedded systems, and electronic controller design.
