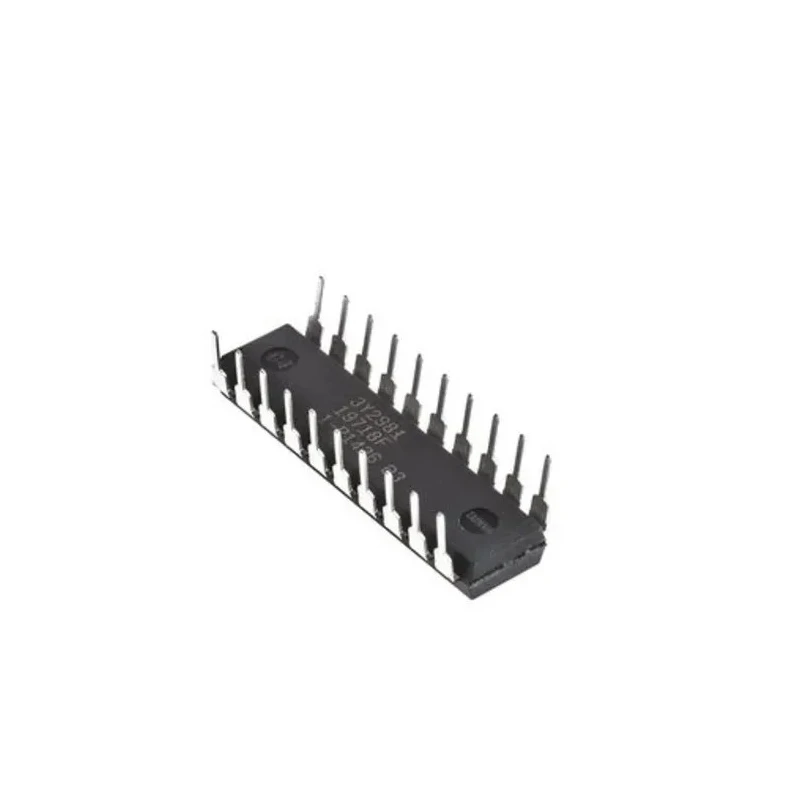

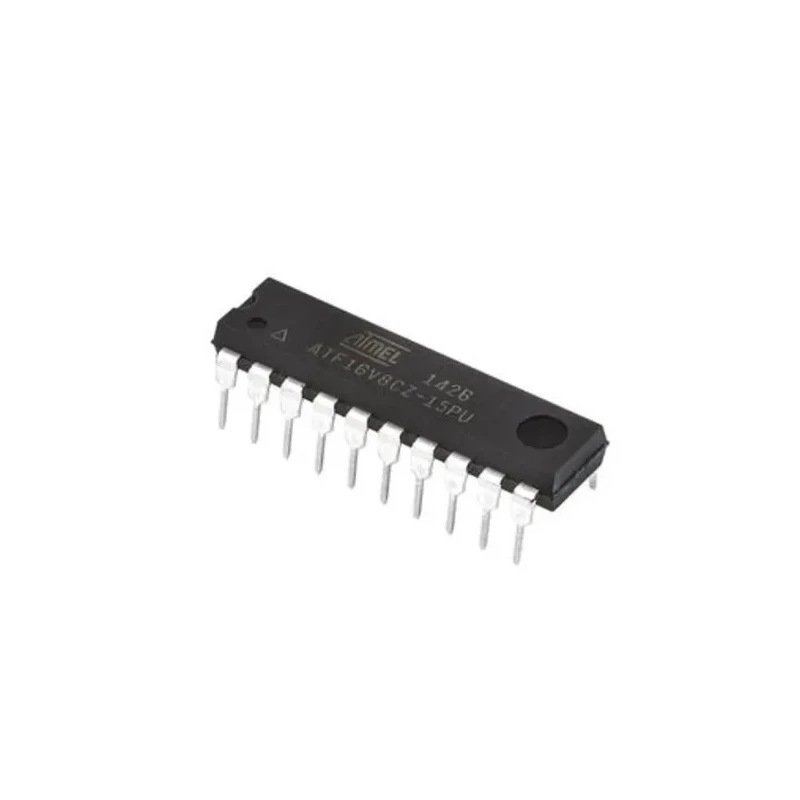

Microchip Simple Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System Programmability ATF16V8CZ

Microchip ATF16V8CZ is a Simple Programmable Logic Device designed with an industry-standard architecture, offering 150 Gates, 8 Macro Cells, and 8 User I/O pins. Featuring a maximum internal frequency of 62 MHz and In System Programmability with re-programmability support, this device ensures flexibility for a variety of electronic applications.

Its through-hole mount type and 20-pin PDIP package allow ease of assembly on printed circuit boards. The device operates reliably within a supply voltage range from 4.5 V to 5 V and withstands temperatures from -40°C to 85°C, making it suitable for harsh industrial and electronic environments.

With a maximum propagation delay time of 15 ns, the ATF16V8CZ supports high-speed electronic circuit designs. The device is RoHS compliant, ensuring environmentally friendly manufacturing standards.

Typical applications include industrial automation systems, electronic controls, programmable logic implementations, and prototyping. Its compact dimensions of 26.92 mm in length and 4.95 mm in height facilitate integration into various circuit designs.

High-performance programmable logic device designed for reliable electronic control. Supports In System Programmability and re-programmability for flexible design changes. Through-hole mount and 20-pin PDIP package for easy PCB integration.

Operates from 4.5 V to 5 V supply voltage, ensuring stable performance. Wide operating temperature range from -40°C to 85°C suits industrial applications. Maximum propagation delay time of 15 ns for fast signal timing. RoHS compliance guarantees environmental standards are met.

Compact package dimensions enable versatile placement in electronic systems.

This Microchip programmable logic device is ideal for industrial, laboratory, manufacturing, and electronic development environments requiring programmable and reliable logic solutions. Explore the broader selection of semiconductor and Programmable Logic ICs at EnvMart.
