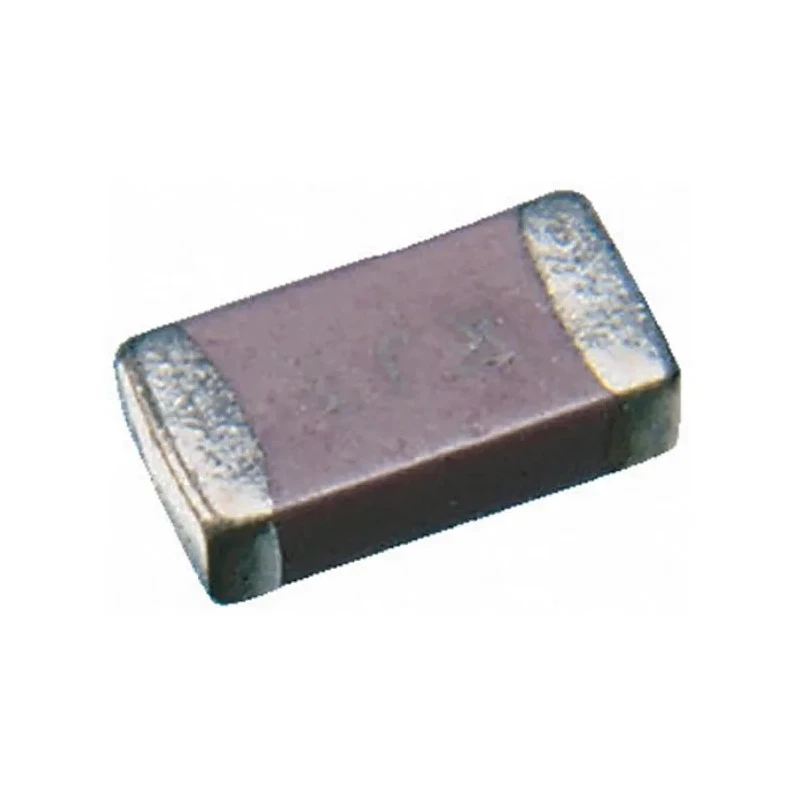

Vishay 2.2 pF Multilayer Ceramic Capacitor 500V dc C0G Surface Mount 1206 Package VJ1206A2R2CXEAC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V dc |
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.2mm |
| Model | VJ1206A2R2CXEAC |
| Packaging | 7 in Reel/Paper Tape |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | VJ |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 150°C |
| Tolerance | 0.25 pF |
| Capacitance | 2.2pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, IEC 61249-2-21, JEDEC JS709A |
| Package/Case | 1206 |
| Dielectric | C0G |
Key Features
- High voltage handling capability ideal for snubber and surge suppression circuits.
- 1206 package size with dimensions 3.2 mm length, 1.6 mm width, and 1.7 mm height.
- C0G dielectric offers temperature compensating performance for stable operation.
- Operating temperature range from -55°C to 150°C suits harsh industrial environments.
- Packaging available as 7 inch reel with paper tape for automated insertion.
- Compliance with RoHS, IEC 61249-2-21, and JEDEC JS709A standards ensures quality and safety.
- Surface mount termination type for efficient PCB assembly.
- Suitable for industrial, electronic component manufacturing, and repair applications.
Product Description
Vishay VJ1206A2R2CXEAC is a high-quality 2.2 pF Multilayer Ceramic Capacitor designed for surface mount technology (SMT) on printed circuit boards. It features a 500V dc voltage rating, making it well suited for circuits requiring high voltage handling capability, such as snubber and surge suppression applications.
The capacitor is built with a 1206 package size, measuring 3.2 mm in length, 1.6 mm in width, and 1.7 mm in height. It uses the C0G (NP0) dielectric, a well-known temperature compensating ceramic that provides excellent stability over a wide temperature range from -55°C to 150°C. This ensures reliable performance in industrial and demanding electronic environments.
The tolerance of ±0.25 pF allows for precision applications where capacitance stability is critical. The termination type is surface mount, facilitating optimized automated assembly in manufacturing processes. Packaging on a 7 inch reel with paper tape supports efficient insertion and handling in production lines.
The capacitor complies with industry standards including RoHS environmental directives, IEC 61249-2-21 for material safety, and JEDEC JS709A for reliability testing. These certifications assure quality and conformity, suitable for automotive, industrial electronics, and general electronic component manufacturers.
High voltage handling capability ideal for snubber and surge suppression circuits. Compact 1206 package size supports modern PCB designs. C0G dielectric ensures excellent temperature stability and low loss. Wide operating temperature range from -55°C to 150°C.
Packaging supports automated assembly with 7 inch reel and paper tape. Meets RoHS, IEC 61249-2-21, and JEDEC JS709A standards. Surface mount device suitable for precision SMT applications.
This Vishay multilayer ceramic capacitor is ideal for use in industrial electronics, telecommunications, automotive electronics, measurement instruments, and power supply circuits. Its robust physical and electrical characteristics make it a reliable component for high-performance electronic assemblies.
Explore more high-grade Vishay electronic components in the EnvMart catalog for all your industrial and manufacturing needs.
Explore more products in our Multilayer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this capacitor is 2.2 pF.
This model has a voltage rating of 500V dc.
The dimensions of the 1206 package are 3.2 mm in length, 1.6 mm in width, and 1.7 mm in height.
The operating temperature range is from -55°C to 150°C.
It uses a C0G (NP0) dielectric, which provides excellent temperature stability and low loss.
It is packaged on a 7 inch reel with paper tape, which supports automated insertion in manufacturing processes.
The tolerance of this model is ±0.25 pF.
This capacitor complies with RoHS, IEC 61249-2-21, and JEDEC JS709A standards.
It supports surface mount termination, making it suitable for surface mount technology (SMT) applications.
This model is suitable for use in industrial electronics, telecommunications, automotive electronics, measurement instruments, and power supply circuits.
The country of origin for this capacitor is India.
This capacitor belongs to the VJ series.
