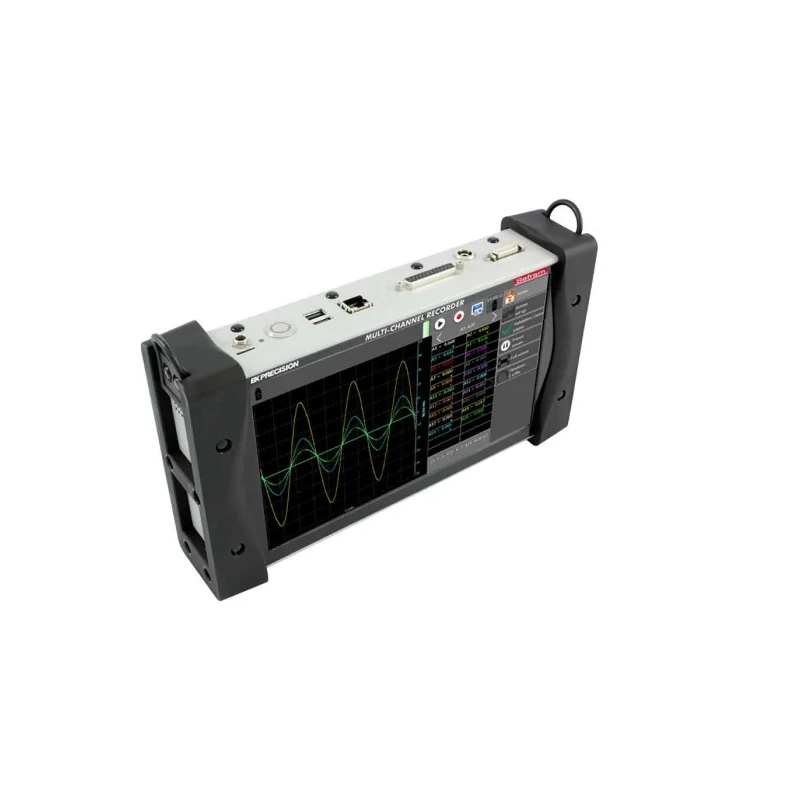

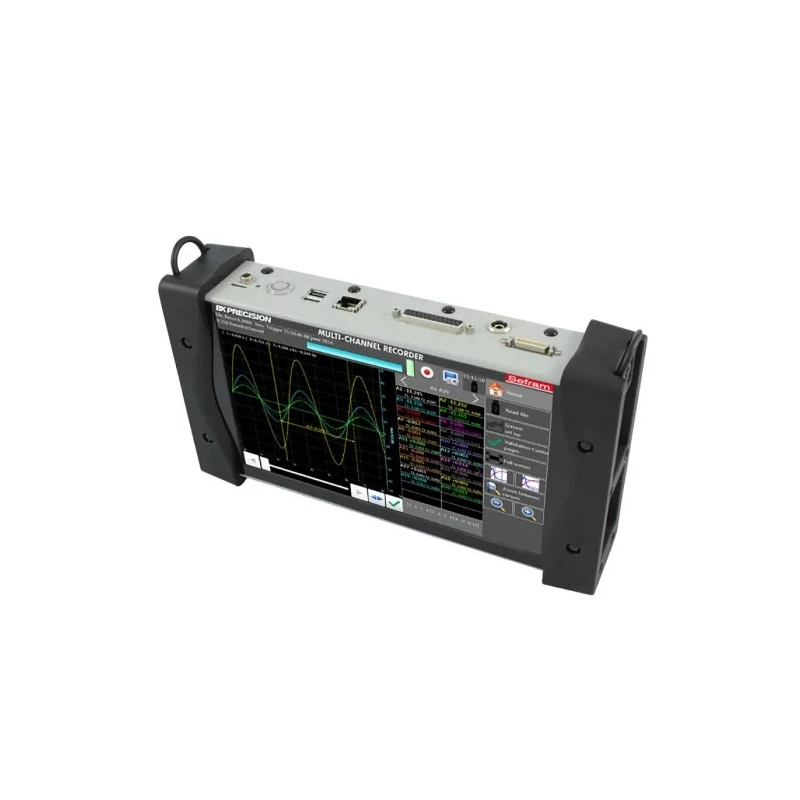

Sefram DAS 240 Multi Purpose Data Logger 20 Channel, Ethernet, USB, LCD 10 Inch TFT Touch Screen DAS240BAT

Sefram DAS240BAT multi purpose data logger is a versatile instrument designed for comprehensive process measurement and monitoring, supporting 20 analog input channels and multiple parameters including voltage, temperature (thermocouples, Pt100-1000), current (with optional shunt), resistance, pulse counting, and frequency. The device includes Ethernet and USB interfaces facilitating flexible data connectivity.

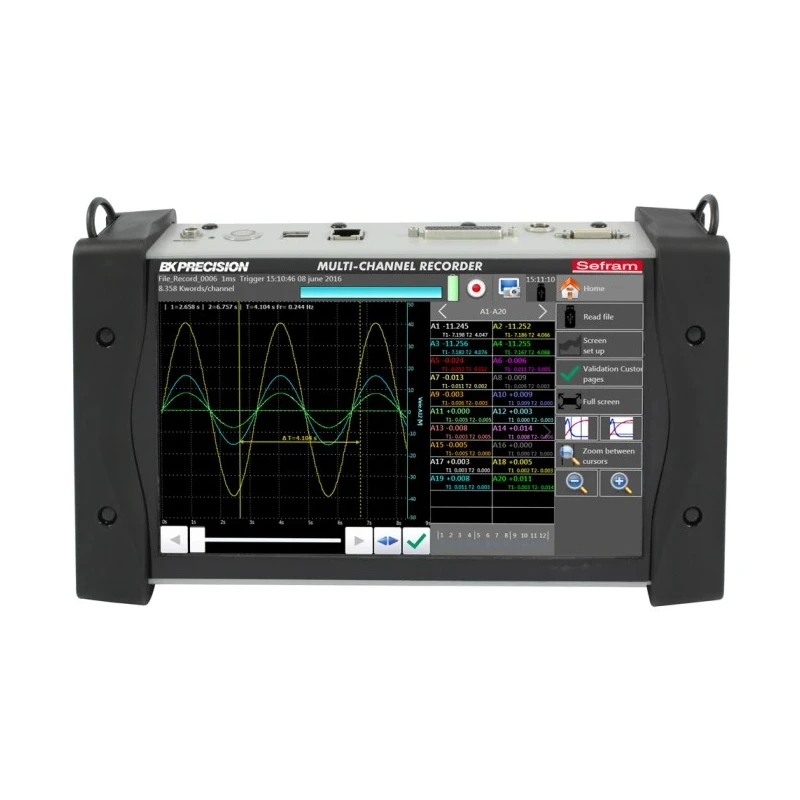

The unit features a 10 inch colour TFT panoramic touch screen LCD enabling intuitive operation and visualization of graphs and numerical data. It has an internal 32 GB hard drive for extensive data storage and comes with licence-free DasLab software which supports data transfer, processing, and remote setup.

Powered by a lithium-ion battery offering 15 hours of autonomy, DAS240BAT is suitable for portable and remote applications. The device supports a maximum sampling rate of 1 millisecond (1 kHz) and 16 bit vertical resolution for high accuracy data acquisition. An alarm system with four outputs along with 12 logical channels and four logical input functions provide enhanced monitoring and control features.

Constructed to meet IEC 61010 CAT I 100V safety standards, it operates reliably across a 0 to 40 degree Celsius temperature range. The device comes complete with essential accessories including a main adaptor (100/240V), a measurement module with 20 channels, connectors, a stylus, a soft wipe, and a screwdriver for assembly and maintenance.

This data logger is ideal for industrial, laboratory, environmental, and manufacturing applications requiring multi-parameter process monitoring and data logging. It supports Ethernet and USB connectivity, making it versatile for integration with existing systems.

Records voltage, temperature, current, resistance, pulse counting, and frequency measurements. High-resolution 10 inch colour TFT panoramic touch screen LCD for clear data display. Multiple communication interfaces including Ethernet, USB, and optional WiFi.

Long-lasting lithium-ion battery delivering up to 15 hours of operation. Supports up to 200 analogue channels with 16 bit resolution and 1 kHz sampling rate. Includes licence-free DasLab software for data management and analysis.

Alarm and logical channel functionalities for comprehensive monitoring. Meets IEC 61010 CAT I 100V safety certification standards. Explore more in the Data Loggers category at EnvMart for state-of-the-art data acquisition and logging solutions.
