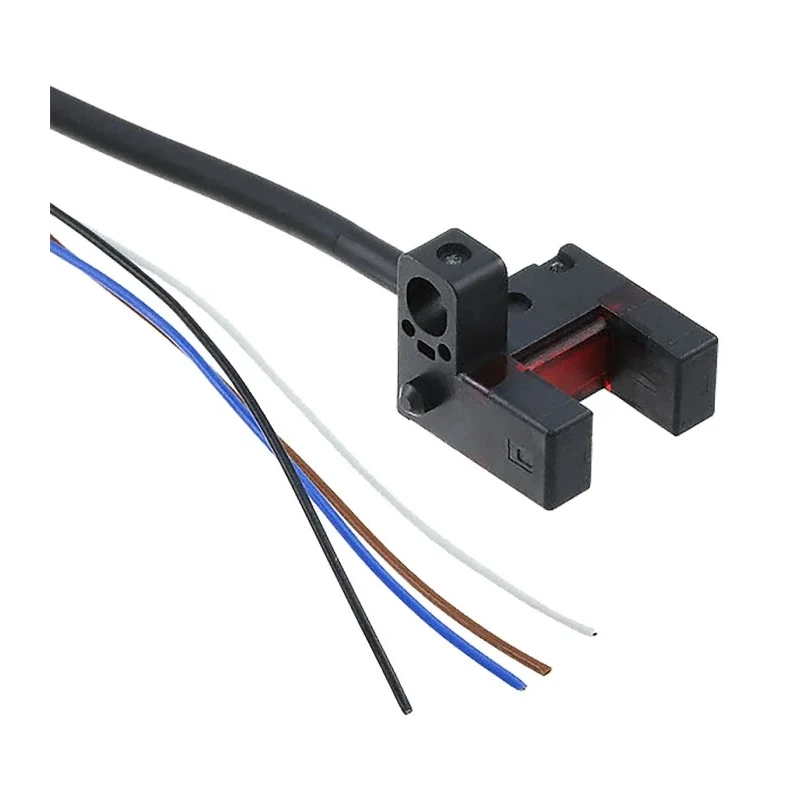

Panasonic Through Beam Photoelectric Fork Sensor, 6 mm Detection Range, NPN Output, IP64 Protection PM-F25-C3
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-F25-C3 |
| IP Rating | IP64 |
| Mount Type | Chassis Mount |
| Housing Material | Polybutylene Terephthalate, Polycarbonate |
| Output type | NPN |
| Series | PM-25 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | Cable |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- U-shaped ultra-small micro photoelectric sensor with combined emitter and receiver.
- Large operating indicator visible from top and sides.
- Robust resin protection for cable connections and internal circuitry to reduce vibration impact.
- Features reverse supply and output polarity protection along with output short circuit protection.
- Easy chassis mounting using M2 / M3 screws.
- Polybutylene Terephthalate and Polycarbonate housing for durable operation.
- Operates reliably in temperatures from -25°C to 55°C.
- IP64 ingress protection ensuring dust resistance and splashing water protection.
Product Description
Panasonic PM-F25-C3 Through Beam Photoelectric Fork Sensor is a compact U-shaped sensor designed for high precision detection in industrial automation and control applications. It features a built-in emitter and receiver within a durable chassis that simplifies mounting and optimizes reliability.
The sensor uses an infrared light source for through-beam detection, making it ideal for sensing opaque materials within a 6 mm detection range. Its chassis mount facilitates easy installation with standard M2 and M3 screws.
With a rugged housing composed of polybutylene terephthalate and polycarbonate, the sensor withstands industrial vibration and impacts. The resin coverage on stress-prone cable and circuitry sections prevents malfunctions and ensures long service life.
Electrical protections include reverse supply polarity, reverse output polarity, and output short circuit safeguards enhancing operational safety. The sensor is compatible with a 24 V DC maximum input voltage and can handle up to 50 mA current output.
Operating temperature ranges from -25°C to 55°C, making it suitable for varied environmental conditions. IP64 rating assures dust ingress prevention and splash water resistance. Response times of 20 and 80 microseconds support dynamic process control and fast signaling requirements.
U-shaped design merges emitter and receiver into one compact housing. Infrared through beam detection for reliable sensing of opaque objects. Durable polybutylene terephthalate and polycarbonate housing with resin-covered stress points.
Robust electrical protections improve reliability and reduce damage risks. IP64 rated for industrial environments requiring dust and splash resistance.
This sensor is extensively used in industrial automation, manufacturing line control, packaging machines, assembly verification, and laboratory instrumentation. It is engineered in Japan to meet IEC safety standards and offers dependable performance for precise material detection in demanding environments.
Explore more about Panasonic's range of Photoelectric Sensors and essential industrial automation components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of the PM-F25-C3 sensor is 6 mm, making it suitable for precise sensing applications.
This model features an NPN output type, which is commonly used in various industrial applications.
The maximum operating temperature for this sensor is 55°C, allowing it to function effectively in various environments.
This sensor is designed to detect opaque materials, making it suitable for various industrial applications.
The sensor has a response time of 20 and 80 microseconds, supporting dynamic process control and fast signaling requirements.
The PM-F25-C3 sensor has an IP64 rating, ensuring protection against dust ingress and splashing water.
The minimum operating temperature for the PM-F25-C3 is -25°C, enabling it to operate in colder environments.
The housing is made from polybutylene terephthalate and polycarbonate, providing durability and resistance to industrial conditions.
This sensor features a chassis mount design, allowing for easy installation using standard M2 and M3 screws.
The maximum current output for this sensor is 50 mA, suitable for various control applications.
This sensor utilizes an infrared light source for through-beam detection, enhancing its sensing capabilities.
The PM-F25-C3 is engineered to meet IEC safety standards, ensuring its reliability in industrial applications.
