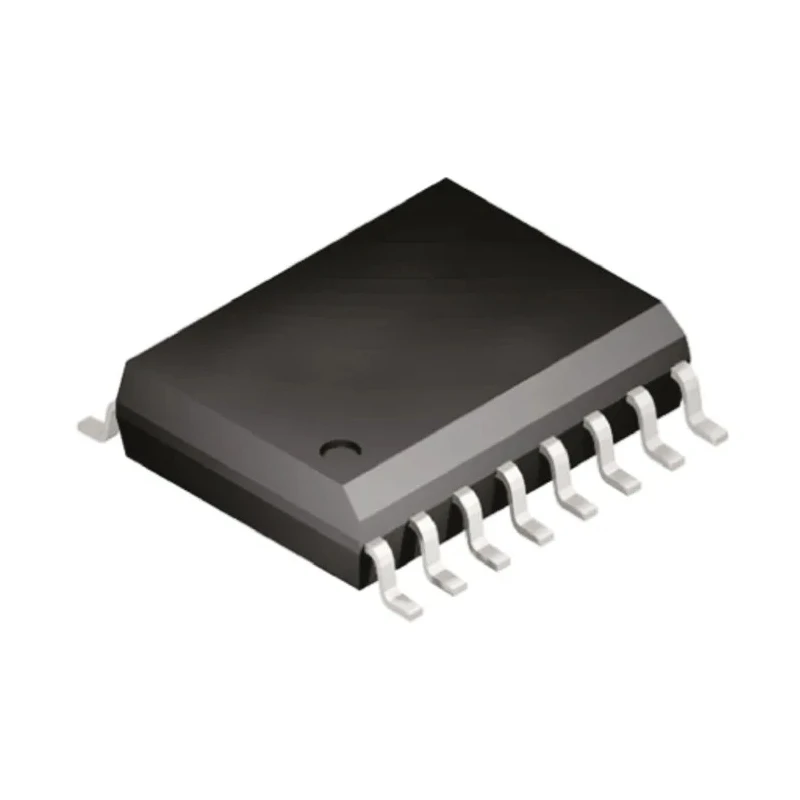

onsemi 16-Pin SOIC 5-Channel PWM Controller 300 kHz Switching Frequency 40V Maximum Supply Voltage TL594CDR2G

onsemi TL594CDR2G is a 16-Pin SOIC 5-Channel PWM Controller designed for efficient power management with a maximum switching frequency of 300 kHz and maximum supply voltage of 40V, suitable for surface mount applications.

This PWM controller provides 5 output channels capable of delivering up to 500 mA output current each, making it ideal for various DC-DC controller and power conversion circuits. With a start-up supply current of 8 mA and a running supply current of 18 mA, it optimizes power consumption during operation.

The device supports a minimum supply voltage of 7 V and maximum duty cycle of 50%, operating reliably within a temperature range of -40°C to 85°C, suitable for industrial and electronic applications.

The compact SOIC package (10 mm length x 4 mm width x 1.5 mm height) enables easy integration into printed circuit boards for power management IC applications. This PWM controller operates at a supply current of 18 mA with a start-up supply current of 8 mA.

It has 5 output channels with a maximum output current of 500 mA. The device supports a maximum duty cycle of 50% and a minimum supply voltage of 7 V. Package type is SOIC with 16 pins, designed for surface mount applications.

Operational temperature range spans from -40°C to 85°C. Compact dimensions include a length of 10 mm, width of 4 mm, and height of 1.5 mm. This component does not include zero power detection or automotive standards compliance.

This PWM controller is well-suited for industrial, manufacturing, and electronic power management applications, including DC-DC converter designs and power supply regulation. Explore more power management ICs and PWM Controllers from onsemi at EnvMart for reliable and efficient solutions.
