Siemens 3RP25 Series DIN Rail Multifunction Timer Relay 2-Contact DPDT 400-440V AC 0.05 s to 100 h 3RP2505-2BT20

Free Delivery in India | Lowest Global Shipping Charges

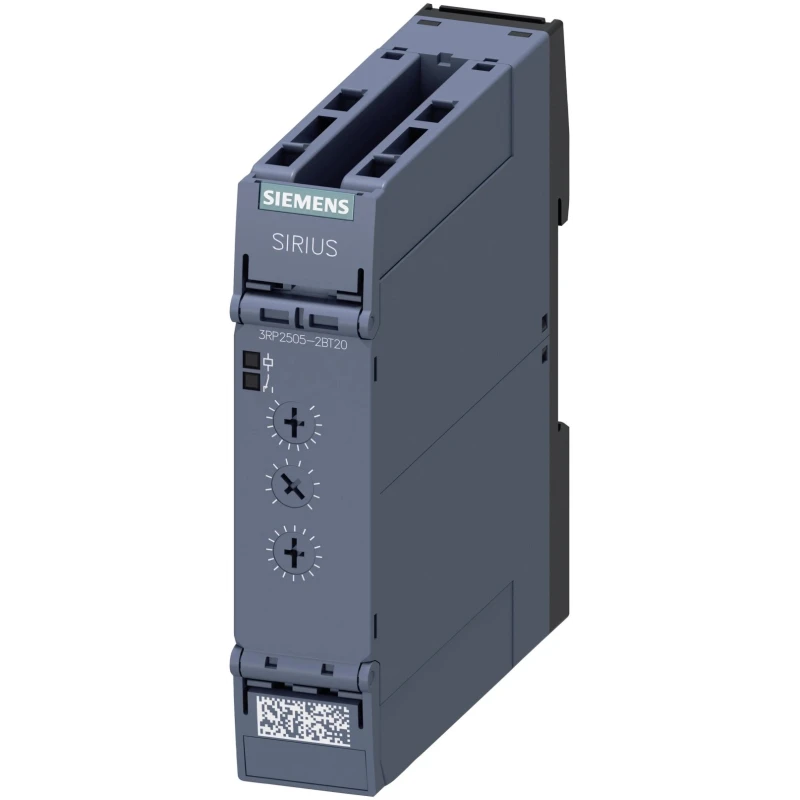

Siemens 3RP25 Series DIN Rail Multifunction Timer Relay 2-Contact DPDT 400-440V AC 0.05 s to 100 h 3RP2505-2BT20

Name: Siemens 3RP25 Series DIN Rail Multifunction Timer Relay 2-Contact DPDT 400-440V AC 0.05 s to 100 h 3RP2505-2BT20
Brand: Siemens
SKU: 142539
Price: 243.94 USD
Availability: InStock



Category Timer Relays Brand Siemens Condition New

Specifications

Country of Origin	Germany
Brand	Siemens
Height	100mm
Function	Multifunction
Length	22.5mm
Model	3RP2505-2BT20
IP Rating	IP20
Mode	Multifunction
Width	91.6mm
Mount Type	DIN Rail
Series	3RP25
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-25°C
Time Range	0.05 s to 100 h
Terminal type	Push-in
Number of Contacts	2
Number of Timer Functions	Multifunction
Switching Voltage	500V
Contact Current	5A
Supply AC Voltage	400, 440V ac

Key Features

Multifunction timer relay with 27 timing functions for versatile control applications.
Supports supply voltage of 400V and 440V AC for flexible integration.
Time range selector enables precise delay settings from 0.05 seconds up to 100 hours.
DPDT contact configuration provides dual-pole double-throw switching capabilities.
Compact industrial design suitable for DIN rail mounting with push-in terminals.
Operating temperature range from -25°C to 60°C ensures reliable performance.
IP20 rated enclosure protecting against solid objects over 12 mm.
Contact current rated at 5A supports moderate electrical loads.

Product Description

Siemens 3RP2505-2BT20 multifunction timer relay is engineered for precise control of time delays in industrial and automation circuits. This DIN rail mountable relay supports a wide range of timing functions - 27 in total - providing versatile options for switching, protection, and regulation within control panels.

Operating at supply voltages of 400V and 440V AC, the relay facilitates timing delays from 0.05 seconds up to 100 hours, adjustable through an intuitive selector switch located on the front face. The relay includes two DPDT contacts rated at 5 amperes, offering double-pole double-throw switching capability ideal for diverse load control tasks.

The device features a compact profile measuring 100mm height, 91.6mm width, and 22.5mm length, designed for standard DIN rail mounting with push-in terminal connections for secure and swift wiring. The enclosure offers IP20 protection against dust and solid objects, suitable for controlled industrial environments.

Built to meet IEC 61812-1, IEC 60529, UL (R300/B300), and EN 954-1 standards, this Siemens 3RP25 series timer relay delivers robust reliability and global compliance. It operates within temperature ranges of -25°C to 60°C, ensuring consistent functionality under varying environmental conditions.

Applications include timer functions in manufacturing automation, process control systems, HVAC regulation, water treatment plants, and more. The product’s durable design and multifunction capabilities allow it to replace legacy 3RP15 series relays efficiently.

Multifunction timer relay with extensive timing function selection. Two DPDT contacts supporting moderate loads up to 5A. Wide timing range from 0.05 seconds to 100 hours configurable with selector. Compact DIN rail mounting design with push-in terminals.

IP20 rated protective enclosure suitable for industrial usage. Operating temperature range from -25°C to 60°C. Meets international standards IEC 61812-1, IEC 60529, UL, and EN 954-1 for quality and safety. Engineered and manufactured in Germany.

Package includes one Siemens 3RP25 Series multifunction timer relay model 3RP2505-2BT20 as detailed. Explore the comprehensive range of Timer Relays available at EnvMart to enhance your industrial automation and control solutions.
