Lapp R 9 Pole Straight Standard DIN Socket, Female, Through Hole, Screw Lock, 7.5A, 1.5kV, IP65, Copper 50106202+00008728
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1.5kV |
| Brand | Lapp |
| Orientation | Straight |
| Current | 7.5A |
| Model | 50106202+00008728 |
| IP Rating | IP65 |
| Mount Type | Through Hole |
| Housing Material | Copper |
| Contact Material | Copper Alloy |
| Series | R |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 9 |
| Contact Plating | Silver |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Screw Lock |
| Connector Size | Standard |
Key Features
- Compact design suitable for space-saving applications.
- Screw lock mating ensures secure and reliable connections.
- Rated for 7.5 amperes current and 1.5kV voltage withstand.
- Provides IP65 protection rating for dust tight and water spray resistance.
- Constructed with copper alloy contacts plated with silver for enhanced conductivity and corrosion resistance.
- Operates reliably in temperatures ranging from -40°C to +125°C.
- Features a crimp termination type for ease of use.
- Suitable for industrial signal and power applications.
Product Description

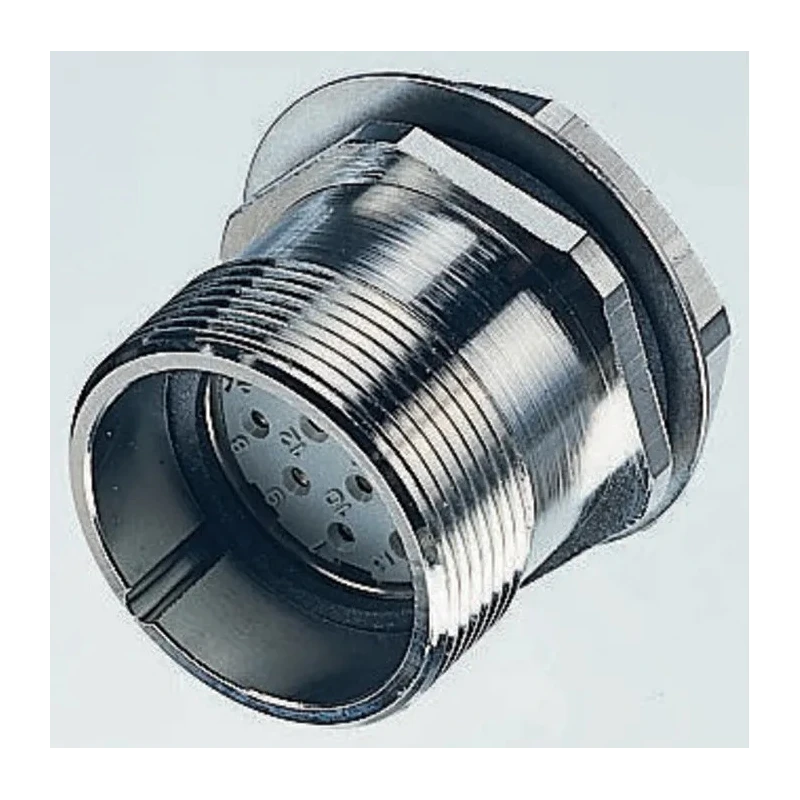

Lapp 50106202+00008728 is a R series 9 pole straight DIN socket connector with female contacts, rated at 7.5A and 1.5kV voltage. Designed for through-hole mounting with a screw locking mechanism, it provides a compact and reliable circular connector solution.
This connector features a copper alloy contact material with silver plating enhancing conductivity and corrosion resistance. The housing is made of copper, offering strong mechanical protection. It has a neoprene sealing ring ensuring an IP65 rating that makes it dust tight and resistant to water spray at low pressure.
Operating temperature ranges from -40°C to +125°C makes it suitable for demanding industrial environments. The crimp termination ensures secure contact attachment and simplified installation. Its straight orientation and screw lock mating type provide reliable and easy maintenance of connections.
Applications for this Lapp R series connector include machine and equipment manufacturing, measurement and control technology, and automation industries where multi-core cable connections are essential.
The connector is designed to mate with various plug and socket counterparts for flexible use. Manufactured in Germany, this product ensures quality and compliance with industrial performance standards.
Compact design suitable for space-saving applications. Screw lock mating ensures secure and reliable connections. Rated for 7.5 amperes current and 1.5kV voltage withstand. Provides IP65 protection rating for dust tight and water spray resistance.
Constructed with copper alloy contacts plated with silver for enhanced conductivity and corrosion resistance. Operates reliably in temperatures ranging from -40°C to +125°C. Features a crimp termination type for ease of use.
Suitable for industrial signal and power applications. Manufactured in Germany adhering to high mechanical protection standards.
This Lapp connector fits within EnvMart's Electronics & Electricals category and is an excellent choice for industrial, manufacturing, and automation environments requiring robust and reliable DIN Connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7.5 amperes.
It can withstand a voltage of 1.5kV.
It has an IP65 rating, making it dust tight and resistant to water spray.
The housing is made of copper, and the contacts are copper alloy with silver plating for enhanced conductivity.
It operates reliably in temperatures ranging from -40°C to +125°C.
This model is designed for through-hole mounting.
It features a crimp termination type for ease of use.
The connector has a straight orientation.
It has 9 poles.
It is suitable for industrial signal and power applications, including machine and equipment manufacturing, measurement and control technology, and automation.
It uses a screw lock mating mechanism to ensure secure connections.
This connector is manufactured in Germany.
