Lapp 4 Core Telephone Cable, Grey Sheath, 300V, Solid Bare Copper Conductor, PVC Jacket 1591301

Free Delivery in India | Lowest Global Shipping Charges

Lapp 4 Core Telephone Cable, Grey Sheath, 300V, Solid Bare Copper Conductor, PVC Jacket 1591301

Name: Lapp 4 Core Telephone Cable, Grey Sheath, 300V, Solid Bare Copper Conductor, PVC Jacket 1591301
Brand: Lapp
SKU: 329323
Price: 181.75 USD
Availability: InStock



Category Telephone Cable Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	300V
Brand	Lapp
CROSS SECTIONAL AREA	0.28mm²
Model	1591301
Series	J-Y(ST)Y...LG
Outside diameter	5.5mm
Maximum Operating Temperature	70°C
Number Of Cores	4
Conductor Material	Bare Copper
Minimum Operating Temperature	30°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	IEC 60332-1-2, DIN VD0815
Jacket Colour	Grey
Fire Behaviour	Fire Resistant
Conductor Type	Solid
Number of Pairs	2
Lapp Telephone Cable, Grey Sheath, 100 mBrand	Lapp

Key Features

The cable features a solid bare copper conductor ensuring excellent conductivity.
It has a PVC insulation core and a durable grey polyvinyl chloride outer sheath.
The cable operates safely at voltages up to 300V with an outer diameter of 5.5mm.
It includes 2 pairs (4 cores) with a cross-sectional area of 0.28 mm² per conductor.
The cable is flame retardant complying with IEC 60332-1-2 and DIN VD0815 standards.
Rated for minimum and maximum operating temperatures of 30°C and 70°C respectively.
Ideal for use in telecommunications, burglar and fire alarm systems, paging, and access control systems.
Suitable for fixed installation in dry and wet interiors, on or under plaster surfaces.

Product Description

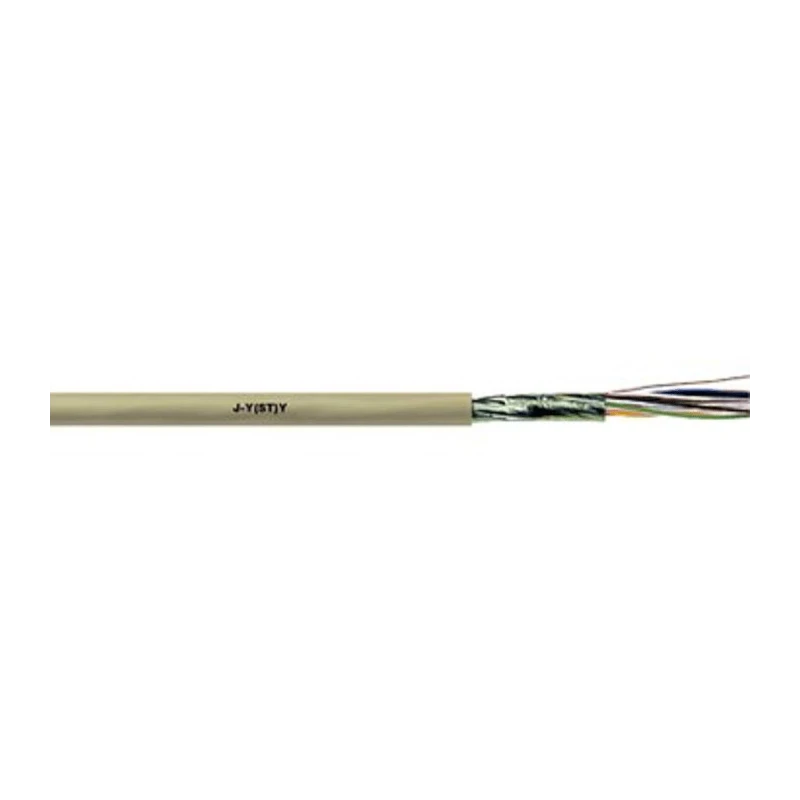

Lapp 1591301 4 Core Telephone Cable, Grey Sheath is a high-quality indoor installation cable designed to transmit analogue and digital signals efficiently in telecommunications and control applications.

The cable features solid bare copper conductors with a 0.28 mm² cross-sectional area, insulated with polyvinyl chloride (PVC) for reliable electrical performance. Its grey PVC sheath provides mechanical protection and flame retardant properties compliant with IEC 60332-1-2 safety standards.

With a voltage rating of 300V and an outer diameter of 5.5mm, this cable supports safe operation within the temperature range of 30°C to 70°C. It contains 2 twisted pairs (4 cores), ensuring minimized interference via aluminum-laminated plastic foil static screening with a tinned plated drain wire.

This telephone cable is suitable for a wide range of industrial and commercial applications including telephone systems, telefax, telex, postal modems, burglar and fire alarm systems, communication and paging systems, access control, time and data management systems. It is intended for fixed installation in both dry and damp indoor environments and can be mounted on or under plaster ceilings and walls.

Solid bare copper conductor for optimal conductivity. PVC core insulation and outer sheath for durability and protection. Flame retardant according to IEC 60332-1-2 standard. 2 twisted pairs design to reduce electromagnetic interference.

Operating voltage of 300V suitable for indoor telecommunications. Grey-colored sheath for aesthetic and identification purposes. Compliant with DIN VD0815 and VDE 0472 Part 804 flame retardant standards. Manufactured in Germany ensuring high quality and reliability.
