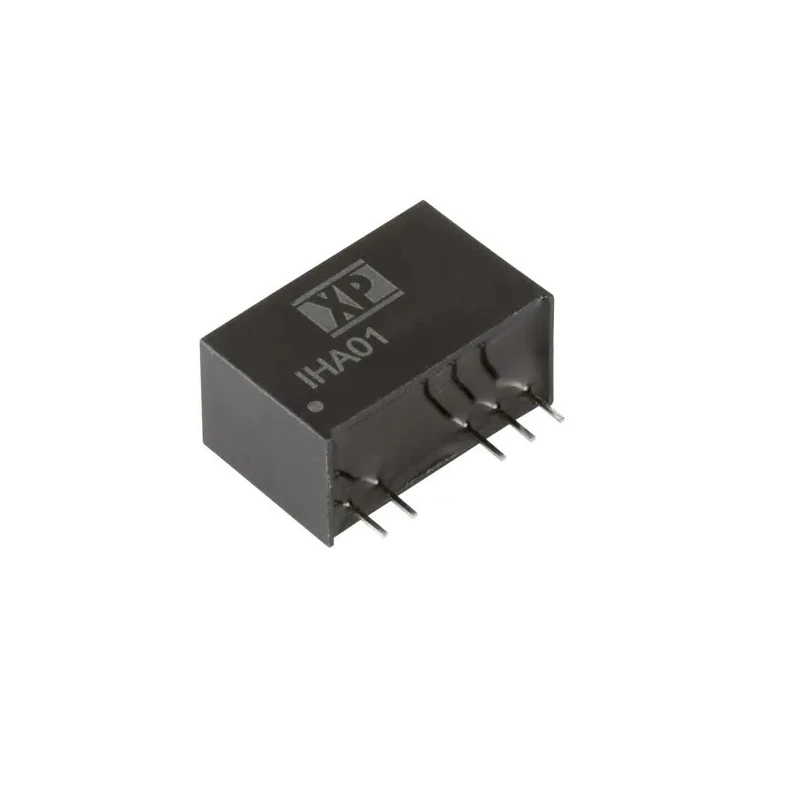

XP Power Isolated DC/DC Converter 5V, -5V, 100mA, 9.9V DC Input, 8.1V Minimum Input, 1W Output Power, SIP Package IHA01
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IHA01 DC/DC Converter, 5V, -5 V/ 100 mA |
| Brand | XP Power |
| Efficiency | 75% |
| Length | 19.5mm |
| Model | IHA01 |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | IHA01 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 9.9V dc |
| Minimum Input Voltage | 8.1V |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 100mA |
| Isolation Voltage | 6kV dc |
Key Features
- The converter offers high isolation voltage of 6kV DC ensuring safety in demanding environments.
- Supports input voltage range from 8.1V minimum to 9.9V maximum for flexible operation.
- Compact SIP package with through hole mount, measuring 19.5mm length, 9.8mm width, and 12.5mm depth.
- High reliability with an MTBF of 2.5 million hours and 75% efficiency at full load.
- Operates safely within a wide temperature range from -40°C to 85°C maximum.
Product Description
XP Power IHA01 DC/DC Converter is a highly reliable isolated power converter designed for applications requiring dual output voltages of 5V and -5V with a maximum current of 100mA.
This device operates from a DC input voltage range between 8.1V to 9.9V and delivers up to 1 watt of output power. The converter is housed in a compact and industry standard SIP7 package suitable for through hole mounting, making it ideal for integration into existing electronic systems.
The IHA01 series provides exceptional isolation voltage of 6000V DC, which assures safe operation in applications requiring galvanic isolation between input and output circuits. Its efficiency of 75% helps reduce energy loss and heat generation.
With a mean time between failures (MTBF) rating of 2.5 million hours, this converter offers robust performance in harsh industrial, laboratory, and commercial environments over a wide operating temperature range from -40°C to 85°C.
Typical applications include power supplies for MOSFET and IGBT gate drives, signal isolation, telecom, instrumentation, and control systems needing isolated dual voltages. The converter supports dual outputs of 5V and -5V for versatile bipolar power supply needs.
High isolation voltage of 6kV DC provides excellent noise immunity and safety. Compact SIP package with through hole mounting ensures easy PCB mounting and replacement. Long operational life with an MTBF of 2.5 million hours ensures high reliability.
Wide temperature operational range enables use in extreme environmental conditions.
XP Power is recognized for high-quality DC/DC converters suitable for power management in industrial, laboratory, and commercial applications. Browse EnvMart for the complete range of XP Power DC/DC Converters and related power supply products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 8.1V minimum to 9.9V maximum.
This converter provides dual output voltages of 5V and -5V.
The maximum output power of this model is 1 watt.
It features a high isolation voltage of 6kV DC, ensuring safety in demanding environments.
The efficiency of this model is rated at 75% at full load.
This converter measures 19.5mm in length, 9.8mm in width, and 12.5mm in depth.
It operates safely within a wide temperature range from -40°C to 85°C.
This model has two outputs.
The MTBF for this model is rated at 2.5 million hours.
It supports through hole mounting, suitable for PCB integration.
The country of origin for this converter is Taiwan.
Typical applications include power supplies for MOSFET and IGBT gate drives, signal isolation, telecom, instrumentation, and control systems needing isolated dual voltages.
