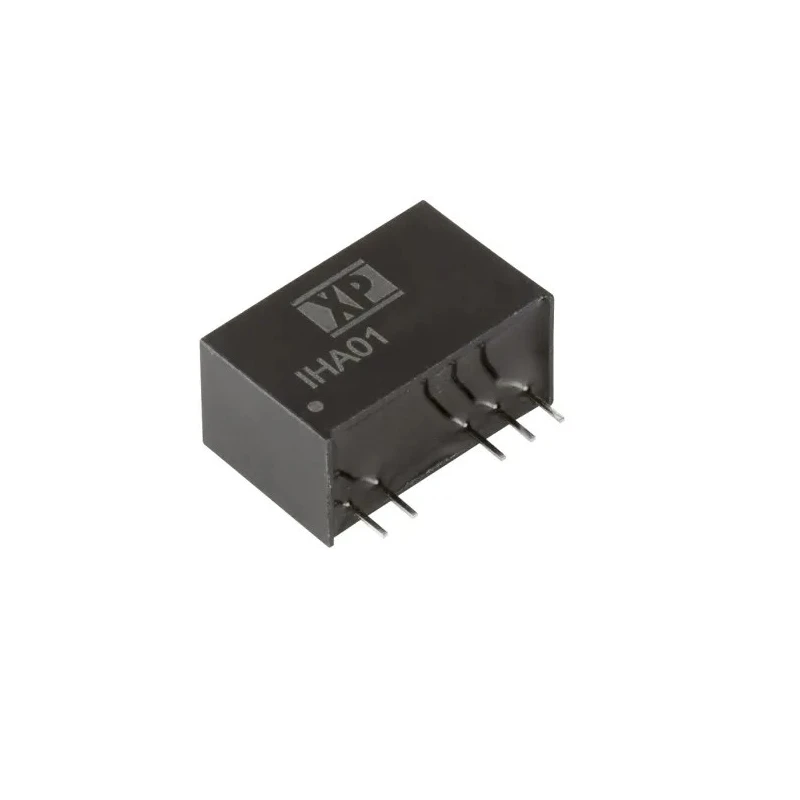

XP Power Isolated DC/DC Converter SIP Package 5V Output 200mA 5.5V Max Input 1W IHA01
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IHA01 DC/DC Converter, 5V dc/ 200 mA, 5 |
| Brand | XP Power |
| Efficiency | 75% |
| Length | 19.5mm |
| Model | IHA01 |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | IHA01 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 6kV dc |
Key Features
- This SIP package converter supports a maximum input voltage of 5.5 V dc.
- Designed for high isolation with 6 kV dc rating and 250 V ac working voltage.
- Maximum output power is 1 W with 75% efficiency.
- Operating temperature ranges from -40°C to 85°C for reliable performance.
- The converter features a through-hole mounting type in a compact SIP7 package.
- MTBF rating is 2.5 million hours, ensuring long-term durability.
- Suitable for driving MOSFET and IGBT bipolar outputs in various industrial applications.
- Manufactured in Taiwan, Province Of China, meeting robust quality standards.
Product Description
XP Power IHA01 DC/DC Converter, model IHA01, is an isolated power supply device delivering 5V dc output at 200 mA with a maximum input voltage of 5.5 V dc. This 1 W output power converter is housed in a compact SIP7 through-hole package designed for industrial, electronic, and power management applications.
The high isolation of 6 kV dc and 250 V ac working voltage ensures superior safety and performance in demanding environments. The device operates efficiently at 75% and withstands temperatures from -40°C to 85°C, making it suitable for harsh environmental conditions.
The mounting is via through-hole technology enabling stable board fixing. Its Mean Time Between Failures (MTBF) is rated at 2.5 million hours, indicating reliability in continuous operation. The converter is optimized for driving MOSFET and IGBT devices with bipolar outputs, common in various power control circuits and industrial equipment.
Its small size with dimensions 19.5 mm by 9.8 mm by 12.5 mm facilitates space-saving PCB designs. The product is manufactured in Taiwan, Province Of China, reflecting quality manufacturing standards.
This DC/DC converter features a highly isolated 6 kV dc and 250 V ac working voltage. Single output voltage of 5V dc with an output current of 200 mA and 1 W power capacity. Operating temperature range from -40°C to 85°C for stable operation in demanding conditions.
Compact SIP7 form factor with through-hole mounting for easy PCB integration. High reliability with a MTBF of 2.5 million hours. Suitable for MOSFET and IGBT bipolar drives in industrial applications. Efficient operation at 75% efficiency typical.
Dimensions are 19.5 mm length, 9.8 mm width, and 12.5 mm depth. Manufactured in Taiwan, Province Of China ensuring quality assurance.
XP Power's IHA01 Series DC/DC converters are ideal for use in industrial electronics, laboratory equipment, HVAC systems, manufacturing power controls, and water treatment instrumentation requiring isolated and reliable power conversion.
Explore the full range of XP Power DC/DC Converters on EnvMart for advanced industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 5.5 V dc.
It provides an output current of 200 mA.
The isolation voltage rating is 6 kV dc.
This converter operates with an efficiency of 75%.
The operating temperature range is from -40°C to 85°C.
The dimensions are 19.5 mm in length, 9.8 mm in width, and 12.5 mm in depth.
It features a through-hole mounting type.
The maximum output power is 1 W.
It is suitable for driving MOSFET and IGBT bipolar outputs in various industrial applications.
The MTBF rating is 2.5 million hours.
The minimum input voltage is 4.5 V dc.
This model is manufactured in Taiwan, Province Of China.
