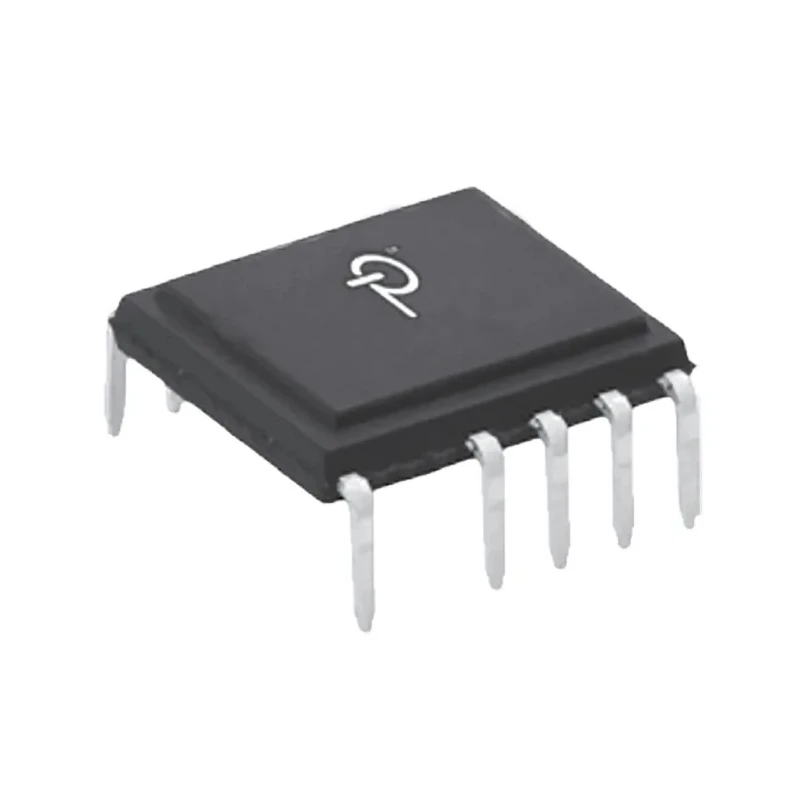

Power Integrations AC/DC Converter 7 A 5V DC 11-Pin eDIP-12 TOP266VG

Power Integrations TOP266VG AC/DC Converter is a high-performance power management IC designed for offline AC-DC converter applications with a maximum output current of 7 A and output voltage of 5 V DC, delivering up to 43 W of power. It features an 11-pin eDIP-12 package suitable for through-hole mounting, making it ideal for industrial and commercial electronic equipment requiring compact and reliable power supplies.

This device incorporates a flyback topology with a high switching frequency of 132 kHz, allowing for efficient power conversion and reduced electromagnetic interference. The converter operates over a wide input voltage range from 85 V AC minimum up to 265 V AC maximum, accommodating global power standards and varying supply conditions.

Designed for challenging environments, the TOP266VG handles ambient temperatures from -40°C to 150°C, ensuring stability and durability in industrial, construction, and HVAC power systems. Integrated protection features include current limiting, over-temperature protection, and comprehensive control circuitry for safe operation.

The compact dimensions (10.16 mm length, 8.89 mm width, 2.34 mm height) facilitate easy integration into compact PCB layouts. Energy efficiency is maintained across the entire load range with very low no-load power, contributing to lower operational costs and reduced heat dissipation.

This converter series is RoHS compliant and part of the TOPSwitch-JX product family, recognized for combining a high-voltage MOSFET and PWM controller in a single monolithic IC, simplifying power supply design.

This converter supports a maximum input voltage of 265V AC for broad industrial use. Features flyback topology with a switching frequency of 132kHz for efficient power regulation. It has a wide operating temperature range from -40°C to 150°C, suitable for harsh environments.

Compact through-hole mounting with dimensions 10.16 mm length, 8.89 mm width, 2.34 mm height. Includes integrated high-voltage power MOSFET and multi-mode PWM controller in a single monolithic package. Energy efficient operation over the entire load range with ultra-low no-load power consumption.

Supplies controlled by a switched current source and comprehensive protection circuitry. RoHS compliant ensuring environmental safety and regulatory compliance.

It is ideally suited for use in industrial tools and equipment, power management systems, lighting controls, HVAC power modules, and other electronic applications requiring stable and efficient power conversion. Explore a comprehensive selection of power management ICs and converters in the EnvMart catalog.
