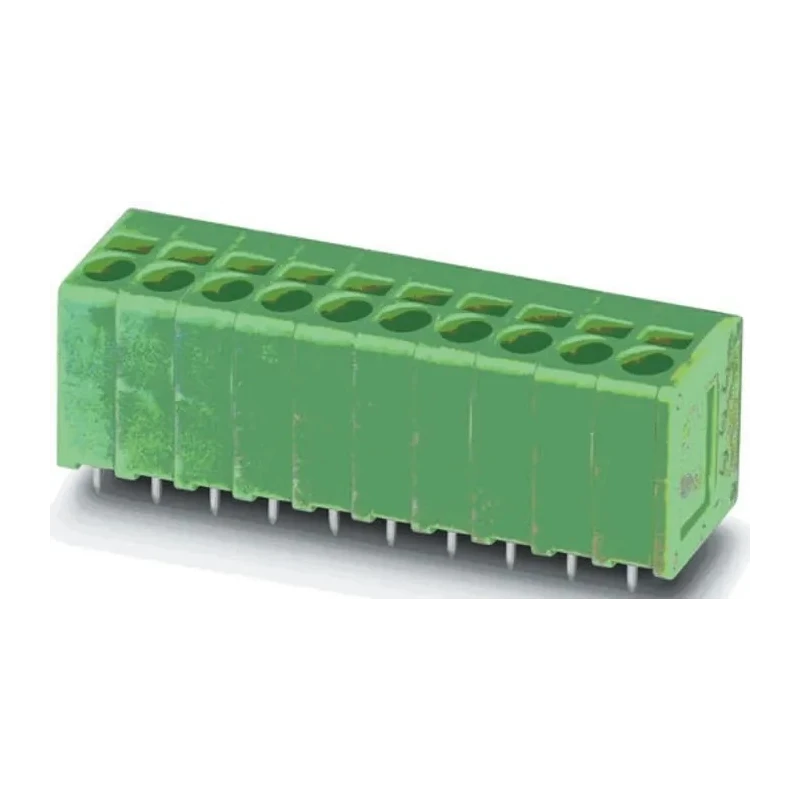

Phoenix Contact SPT 1.5/7-V-3.5 Series PCB Terminal Block, 7-Contact, 3.5 mm Pitch, 1 Row, 400V, Female Connector 1990902
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 24A |
| Length | 25.9mm |
| Model | 1990902 |
| Depth | 13.5mm |
| Width | 14.4mm |
| Housing Material | Polyamide |
| Series | SPT 1.5/7-V-3.5 |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 7 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Spring Cage |
Key Features
- Features a spring cage wire connection method that ensures secure and maintenance-free contact.
- Supports current up to 24A at 400V for demanding electrical applications.
- Compatible with wire sizes from 0.2 mm² to 4 mm² and from 24 AWG to 12 AWG.
- Constructed with durable polyamide housing material for insulation and mechanical protection.
- Provides a single row, 7-contact configuration with a 3.5 mm pitch for compact PCB layouts.
- Connector gender is female with a straight orientation for easy integration.
Product Description
Phoenix Contact 1990902 PCB Terminal Block from the SPT 1.5/7-V-3.5 series is a high-quality pluggable terminal block designed for secure and efficient connections on printed circuit boards (PCBs). Operating at 400V and capable of handling currents up to 24A, this terminal block is ideal for industrial electronic and electrical applications requiring reliable wiring solutions.
The terminal block features a spring cage wire connection method, ensuring stable and vibration-resistant contact without the need for screw maintenance. It supports wire sizes ranging from 0.2 mm² to 4 mm², accommodating both rigid and flexible cables, including those with ferrules. The female connector with straight orientation simplifies wiring on PCBs, while the polyamide housing provides insulation and durability.
With 7 contacts in a single row and a 3.5 mm pitch spacing, this compact terminal block fits well in space-constrained electronics assemblies. Its dimensions - length 25.9 mm, width 14.4 mm, and depth 13.5 mm - allow for versatile installation options. Suitable for industrial, automation, manufacturing, and electronic component manufacturing environments, the 1990902 terminal block ensures secure electrical connections compliant with industry standards.
Spring cage wire connection for secure and maintenance-free contact. Supports 24A current and 400V voltage rating for robust applications. Polyamide housing for mechanical protection and insulation. Compatible with flexible and rigid wires from 0.2 mm² to 4 mm².
7-contact, single row with 3.5 mm pitch for compact PCB integration. Female connector, straight orientation for easy PCB wiring. Dimensions: 25.9 mm length, 14.4 mm width, 13.5 mm depth.
This terminal block is ideal for electrical and electronic industrial applications including control systems, equipment wiring, and power distribution on PCB assemblies. It aids designers and engineers in creating reliable and maintainable electronics that meet quality and safety requirements.
Explore more PCB Terminal Blocks and connectors on EnvMart to find compatible components for your next electronic project, featuring trusted brands like Phoenix Contact.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB terminal block has a voltage rating of 400V, making it suitable for demanding electrical applications.
It can handle a maximum current of 24A, which is ideal for robust electrical applications.
This terminal block is compatible with wire sizes ranging from 0.2 mm² to 4 mm² and from 24 AWG to 12 AWG.
The terminal block features a pitch of 3.5 mm, allowing for compact PCB layouts.
It has a total of 7 contacts arranged in a single row.
The housing is constructed from polyamide, providing insulation and mechanical protection.
The connector has a straight orientation, which facilitates easy integration into PCB layouts.
The dimensions are 25.9 mm in length, 14.4 mm in width, and 13.5 mm in depth.
It utilizes a spring cage wire connection method, ensuring secure and maintenance-free contact.
It is suitable for industrial, automation, manufacturing, and electronic component manufacturing applications.
The terminal block is manufactured in Germany.
This terminal block belongs to the SPT 1.5/7-V-3.5 series.
