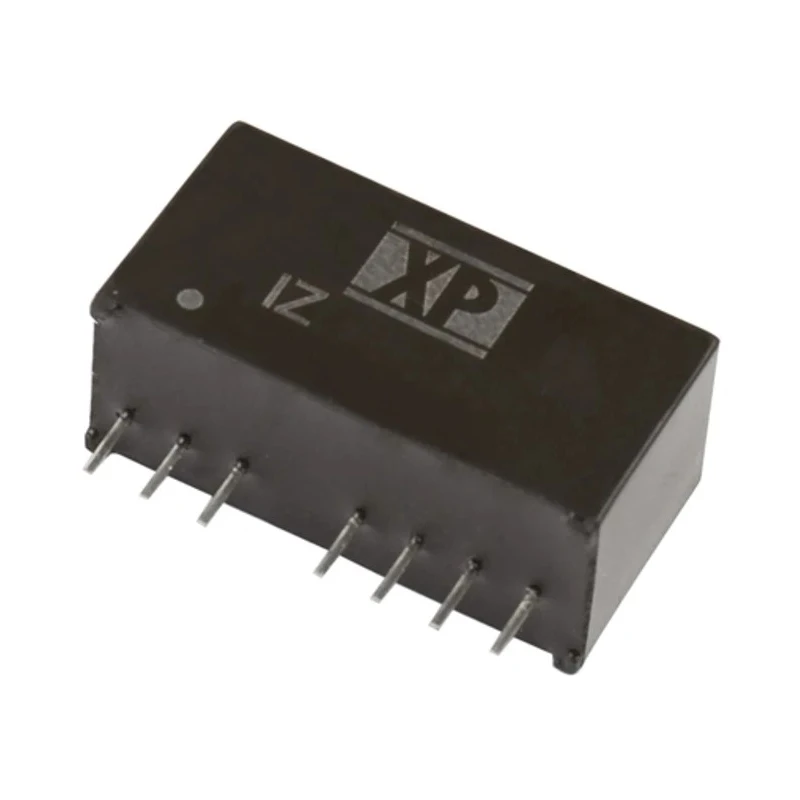

XP Power 3W Isolated Dual Output DC/DC Converter, 12V / -12V, 125mA, 9V DC Input, Through Hole SIP Package IZ0512S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IZ DC/DC Converter, 12V, -12 V/ 125 mA, 9 |
| Brand | XP Power |
| Efficiency | 82% |
| Length | 21.85mm |
| Model | IZ0512S |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IZ |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1340000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 125mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides regulated dual output voltages at ±12V with 125mA output current.
- High isolation voltage of 1600V DC ensures safe and noise-free operation.
- Compact 8-pin SIP package designed for through-hole mounting.
- Operates efficiently at 82%, reducing energy waste and heat.
- Continuous short circuit protection for enhanced device reliability.
- Wide operating temperature range from -40°C to +100°C suits harsh environments.
- High MTBF of 1,340,000 hours guarantees long service life.
Product Description
XP Power IZ0512S is a high-quality isolated dual output DC/DC converter rated at 3 watts power. It delivers precise regulated 12V and -12V output voltages at 125mA output current, powered from a 9V DC input voltage. Packaged in a through-hole SIP form factor, it facilitates easy mounting in various industrial and electronic systems.
This converter supports a broad input voltage range from 4.5V minimum to 9V maximum with an input voltage ratio of 2:1, making it flexible for different power supply conditions. Its dual outputs are electrically isolated with an isolation voltage of 1600V DC, providing safety and noise immunity in complex circuitry.
Measuring 21.85mm in length, 11.1mm in depth, and 9.2mm in width, the compact SIP package is designed for space-limited applications while supporting through-hole mounting for secure installation. The device includes continuous short circuit protection to prevent damage under fault conditions and operates efficiently at 82% efficiency to reduce heat generation.
Designed for demanding environments, this converter can operate in temperature ranges from -40°C to +100°C. Its robust design is backed by a high mean time between failures (MTBF) of 1,340,000 hours, ensuring durability and reliability in industrial, manufacturing, laboratory, HVAC, and embedded power management applications.
Regulated dual output voltages at ±12V with 125mA current capacity. Wide input voltage range from 4.5V to 9V DC with 2:1 input ratio. High isolation voltage of 1600V DC for safe operation in sensitive electronics. Compact SIP package with through-hole mounting and 8 pins.
Operates efficiently at 82%, reducing power loss and thermal stress. Continuous short circuit protection enhances durability. Wide operating temperature range from -40°C to +100°C for diverse environments. Long lifespan with MTBF of 1,340,000 hours ensures reliable performance.
The XP Power IZ series DC/DC Converters are suitable for use in commercial and industrial power supplies, embedded systems, telecommunications equipment, medical instrumentation, and other applications requiring stable, isolated low-power DC voltages.
Explore additional XP Power converters and industrial electronics components in the EnvMart catalog to meet your power management requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides regulated dual output voltages of +12V and -12V, with a maximum output current of 125mA.
The IZ0512S operates with a minimum input voltage of 4.5V and a maximum input voltage of 9V DC, featuring a 2:1 input voltage ratio.
It has a high isolation voltage of 1600V DC, ensuring safe operation in sensitive electronic applications.
The dimensions of this unit are 21.85mm in length, 11.1mm in depth, and 9.2mm in width, making it compact for space-limited applications.
This converter operates with an efficiency of 82%, which helps to reduce energy waste and thermal stress.
The IZ0512S can operate in a wide temperature range from -40°C to +100°C, suitable for harsh environments.
It is designed for through-hole mounting, which allows for secure installation in various applications.
The IZ0512S has a high MTBF of 1,340,000 hours, indicating a long service life and reliability in operation.
Yes, it includes continuous short circuit protection to enhance device reliability under fault conditions.
This model features two outputs, providing both +12V and -12V voltages.
It is suitable for use in commercial and industrial power supplies, embedded systems, telecommunications equipment, and medical instrumentation.
The IZ0512S comes in an 8-pin SIP package, designed for easy integration into various electronic systems.
